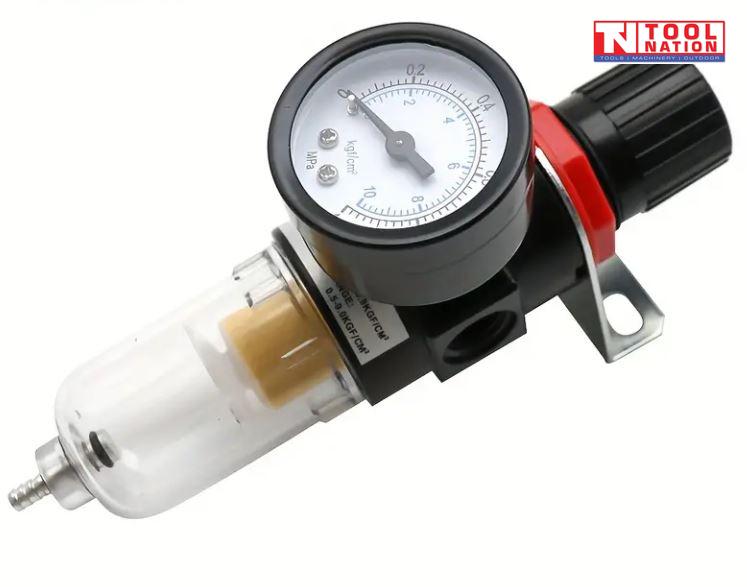

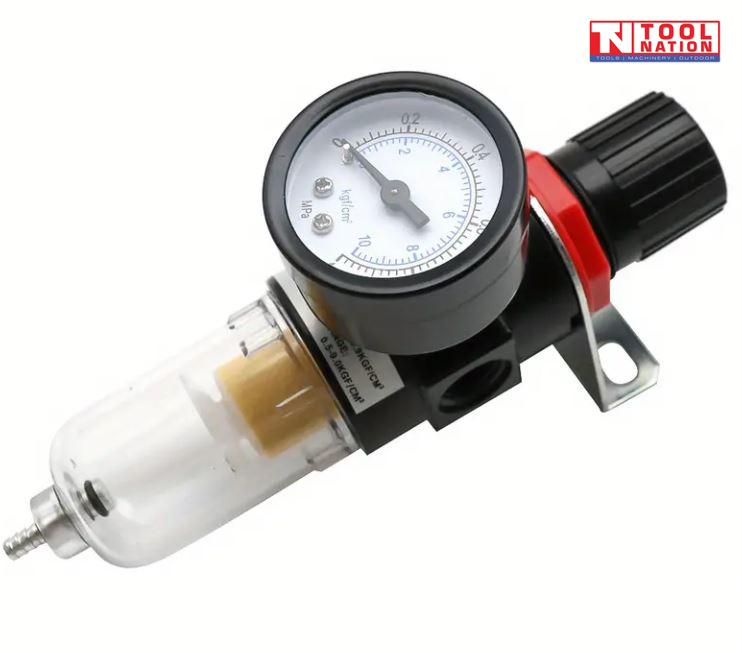

1/4 Inch Air Filter Regulator with Water Trap and Gauge
AFR2000
AIR FILTER REGULATOR ¼” BSP
Description:
The Millers Falls combined water trap & regulator with gauge is a must for whenever using air tools or air operated equipment. The water trap removes moisture from the air while the regulator allows the user to set and maintain the desired air pressure. The convenient drain at the bottom of the bowl allows a hose to be fitted to direct water away from the machine. The ¼” BSP ports and the most common on the market and fitting are readily available to suit.
Features:
1/4″ BSP female inlet ports
Easy to install and convenient to use
Durable - High quality components & fittings.
Mounting Bracket Included
Specifications:
Model: AFR2000
Capacity: 60cc
Fitting Size: 1/4″ BSP Female
Max Pressure: 0.99MPA (9.9bar)
Adjustable Pressure Range: 0.05-0.9MPa (0.5-9.0bar)
Operating Temperature Range: 5°C -60°C

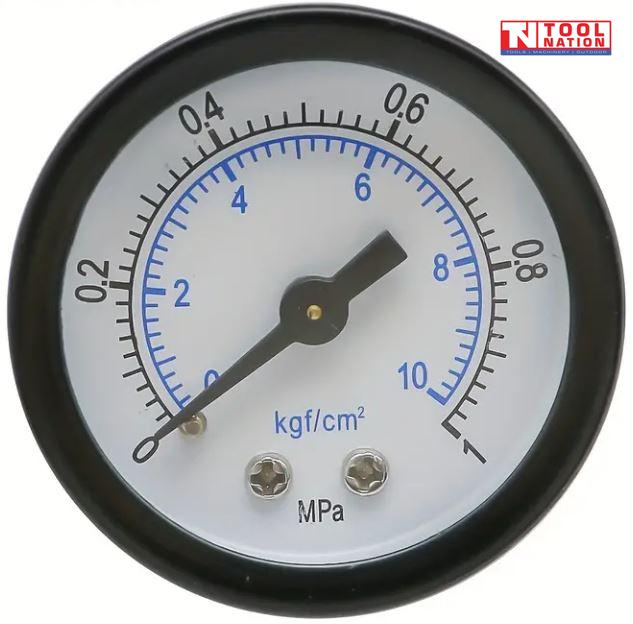

Pressure Gauge Range: 0-1MPa, 0-10kgf / cm2

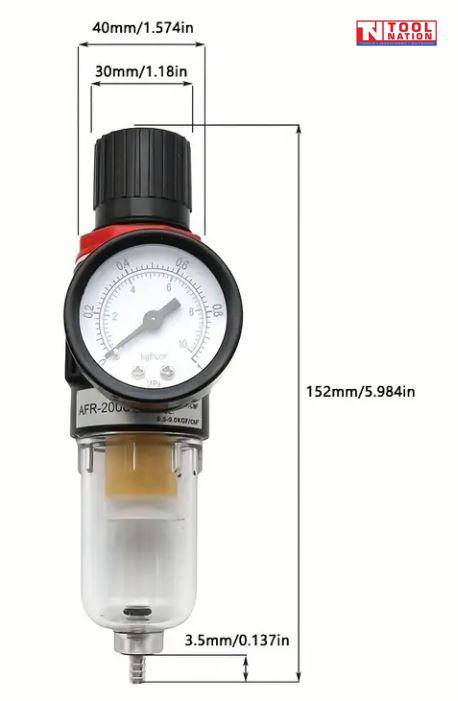

Size: 49x20x52mm
Weight: 0.5 kg
