1000kg 2 Stage Vertical Under Hoist Telescopic Transmission Jack

VP8265

2 Stage Vertical Under Hoist Telescopic Transmission Jack

Description:

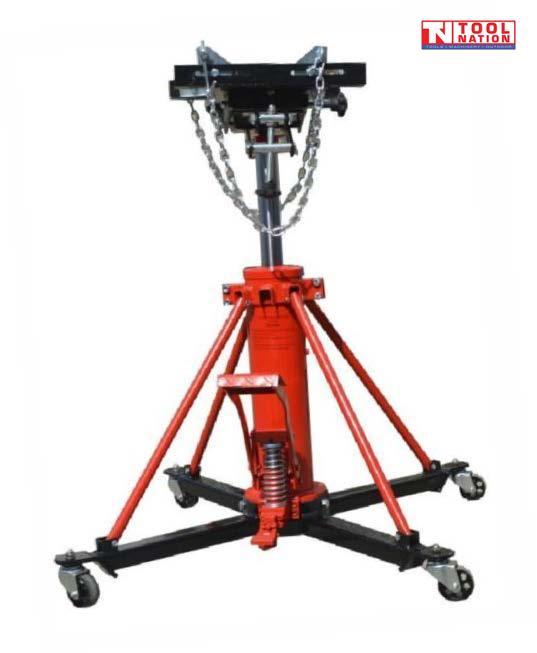

The VP8265 – 2 Stage Vertical Under Hoist Telescopic Transmission Jack is the perfect tool for removing, replacing, or installing transmissions in confined or elevated spaces. Designed to lift transmissions weighing up to 1000kg (2200lb), this hydraulic jack features a telescopic design that allows it to reach heights of up to 1850mm. It is ideal for use in a hoist system, helping operators perform heavy-duty tasks while standing upright and avoiding the strain of working underneath the vehicle. With adjustable cradles, safety chains, and a sturdy construction, the VP8265 is built for efficiency, safety, and ease of use in professional automotive workshops.

The VP8265 – 2 Stage Vertical Under Hoist Telescopic Transmission Jack is designed for maximum versatility, safety, and convenience in any automotive workshop. Whether you’re working on transmissions, transfer cases, or gearboxes, this jack ensures ease of use and durability, making it an invaluable asset to your lifting equipment lineup.

Features:

• 1 Ton Lifting Capacity: Designed to handle transmissions, transfer cases, and other heavy components weighing up to 1000kg (2200lb), this jack is perfect for a wide range of automotive applications.

• Telescopic Design: The two-stage hydraulic telescopic feature allows the jack to extend to a maximum height of 1850mm, enabling users to work comfortably when removing or installing transmissions on a hoist.

• Fully Adjustable Cradle: The cradle can be adjusted to securely fit various transmissions, and is equipped with safety chains to prevent any movement of the transmission or gearbox during work.

• Angle and Skew Adjustment: The jack head offers up to 10 degrees of tilt and 25mm of skew adjustment for optimal alignment, making it adaptable to different transmission types.

• Heavy Duty Construction: Made from durable steel and coated with a heavy-duty powder finish, this jack is built to withstand heavy workloads and resist wear and tear.

• Safety and Stability: Four supporting feet offer excellent stability, while heavy-duty castors make it easy to maneuver and position the jack under the vehicle.

• Hydraulic Foot Pedal: The hydraulic system is operated via a foot pedal for smooth and controlled lifting, with a safety release for added security.

Specifications:

Lifting Capacity: 1 Ton (1000kg / 2200lb)

Minimum Height: 860mm

Maximum Height: 1850mm

Stroke: 990mm

Angle Adjustment: Up to 10 degrees

Skew Adjustment: Up to 25mm

Construction: Heavy-duty powder-coated steel

Hydraulic System: 2-stage with foot pedal and safety release

Castors: Heavy-duty for easy maneuverability

Packing Size: 96cm x 64cm x 53cm (skid)

Shipping Weight: 95kg
