1000kg Pallet Stacker 1600mm Lift Height
WH7615

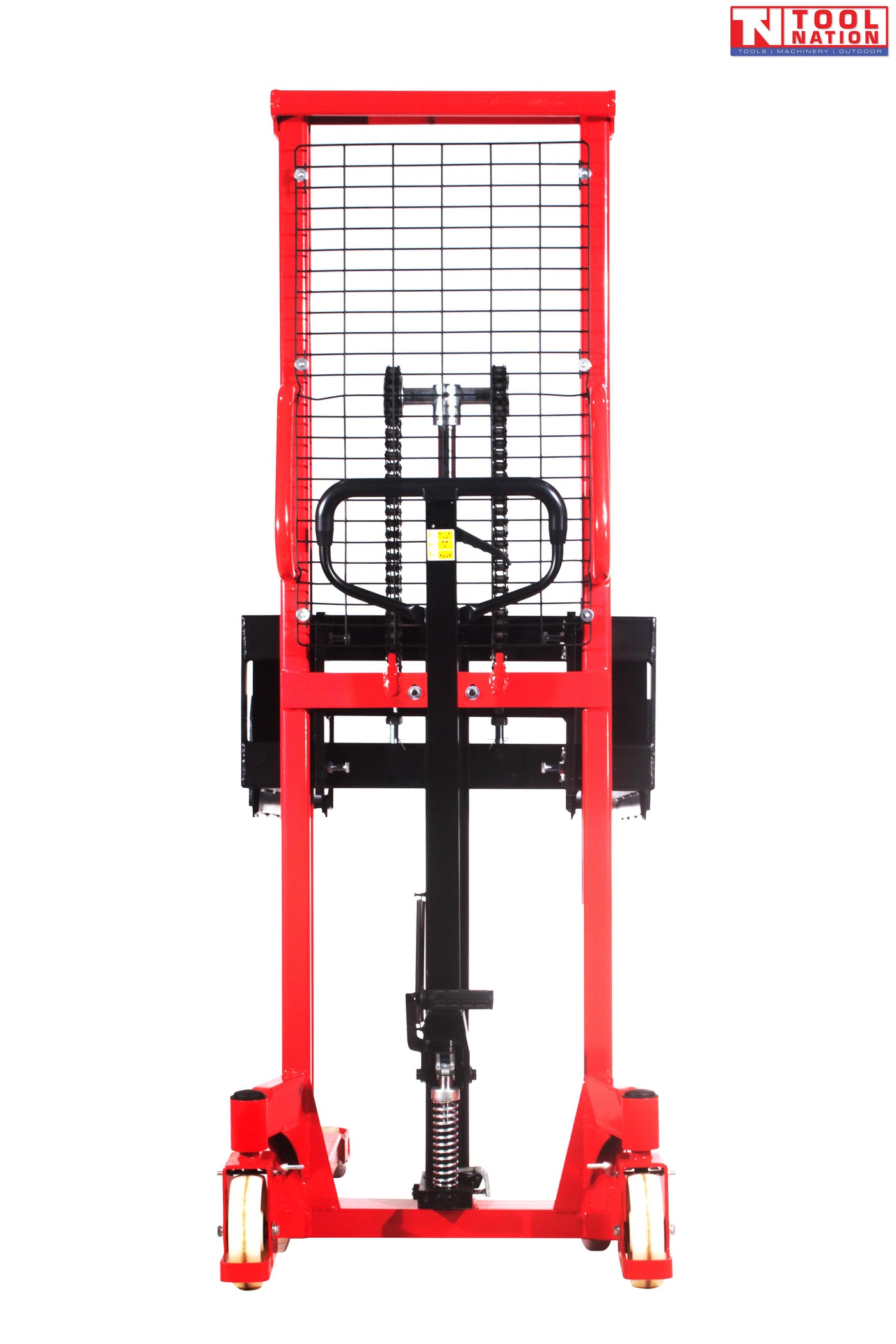

1000kg Pallet Stacker
The WH7615 Pallet Stacker is an efficient and robust lifting solution designed for handling smaller to medium-sized loads with a lifting capacity of up to 1000kg. Constructed from high-quality steel, this stacker is durable and reliable, ensuring smooth operation for your material handling tasks. It features an adjustable lifting height from 90mm to 1600mm, making it versatile for a range of applications. The WH7615 is designed with easy-to-operate hydraulic controls and safety features to ensure safe and effective operation in any warehouse or industrial setting.
Features:
Capacity: 1000kg
Lifting Height: 90mm - 1600mm
Overall Length: 1424mm
Overall Width: 720mm
Overall Height: 1980mm
Fork Length: 1070mm
Fork Width: 140mm
Fork Outside Distance: 295mm - 680mm
Lifting Speed: ≥22mm/time
Descending Speed: Controllable
Center of Load: 500mm
Front Wheel Diameter: Φ80X60mm
Rear Wheel Diameter: Φ180X50mm
Self Weight: 170kg
Suitable for use on flat surfaces only
Hydraulic Oil: ISO VG32, 3.0L capacity
Specifications:
Model: WH7615
Capacity: 1000kg
Lifting Height: 90mm - 1600mm
Fork Length: 1070mm
Fork Width: 140mm
Fork Outside Distance: 295mm - 680mm
Lifting Speed: ≥22mm/time
Overall Dimensions: 1424 x 720 x 1980mm
Front Wheel Diameter: Φ80X60mm
Rear Wheel Diameter: Φ180X50mm
Self Weight: 170kg
