110 kVA Diesel Generator 415V Cummins Powered

GSD115CL

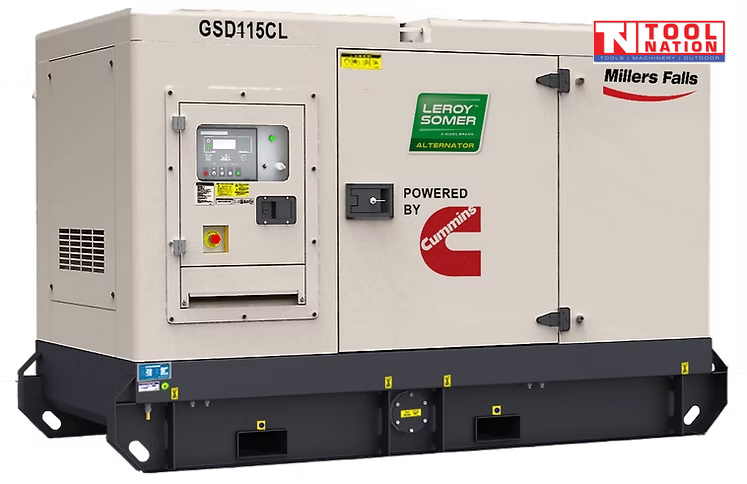

Millers Falls 110 kVA Diesel Generator 415V – CUMMINS Powered

This Millers Falls 415V Three phase generator is powered by one of the most famous and reliable Diesel engines in the world the CUMMINS 6BT5.9. A 6 Cylinder Turbo Charged 5.9 Litre Diesel Engine partnered with a high-quality Leroy Somer 4 Pole brushless alternator; this generator offers a high-performance cost-effective solution to your power generation requirements.

The Millers Falls 110kVA three phase 4-pole CUMMINS powered generator is perfectly suited for commercial or industrial applications as well as backup power for homes or offices. It offers 100 kVA power at prime load and together with its bunded 445 litre fuel tank can provide a consistent output of up to 24 hours at 75% Prime Load. As a standby generator it offers a 110 kVA of silenced power operating at just 67 dBA at 7 meters sound level.

Built to meet highest Australian standards the Millers Falls GSD115CL Cummins powered generator features: earth leakage protection, quality RCBO’s- IP67 protected, approved IP66 outlets and industry leading safety features plus RCBO protected hardwire terminals.

With its 1500 RPM Cummins Turbo Charged 4-cylinder industrial engine Leroy Somer alternator contained in a robust sound deadened and heat insulated lockable cabinet the Millers Falls GSD115CL is a quality generator that you can always depend on. The oversize 50-degree radiator allow the generator to keep preforming even in Australia’s extreme temperatures.

The Millers Falls range of generators are known for producing a stable and consistent output with industry-leading reliability.

Features:

• Fitted with a world-famous reliable CUMMINS 6 Cylinder Turbo Charged Diesel Engine.
• Leroy Somer World-leading high-quality Alternator
• Robust Design and built silenced canopy designed for outdoor use.
• Double Bunded Fuel Tank
• Drain Plugs Fitted: Water, Oil, Diesel
• Fork Slippers and Lifting Hooks for ease of manoeuvrability
• 24 hr Fuel Tank
• 50°C temperature rating, oversize radiator allows for extreme temperature conditions.
• 24 hours continuous stable power at 75% prime load. The low 1500 RPM engine generates a more stable operation.
• Silenced Operation 67 dBA at 7 metres.
• Fuel-efficient 24.7 Litres/Hour at 75% prime load.
• Oil Pressure Shutdown, Over Temperature shutdown,
• Interior Cabinet Light with switch
• Emergency E Stop
• Hardwire Terminals with RCBO additional protective cover.
• Site Safe Lockable Canopy
• Australian Compliant Wiring and M.E.N link
• Easy to use Smartgen Controller
• 2 Wire Remote Start Capable
• ATS Function Connection Socket
• Remote Start 4G Function Capable
• Shunt Relay Auto Stop
• Australian Safety Standards compliant.

Specifications:

Options: Automatic Start Systems

GSM -G4

ATS (Mains Failure Auto Transfer Switch)

Wire Remote Start (Socket Fitted)

Weight: 1570 kg

Dimensions: 311 L x 112 W x 190 H cm
