135cm Rotary Tiller Chain Drive with Slip Clutch 18-30HP
Estimate only. Final freight options are confirmed in checkout.
FIRTL135

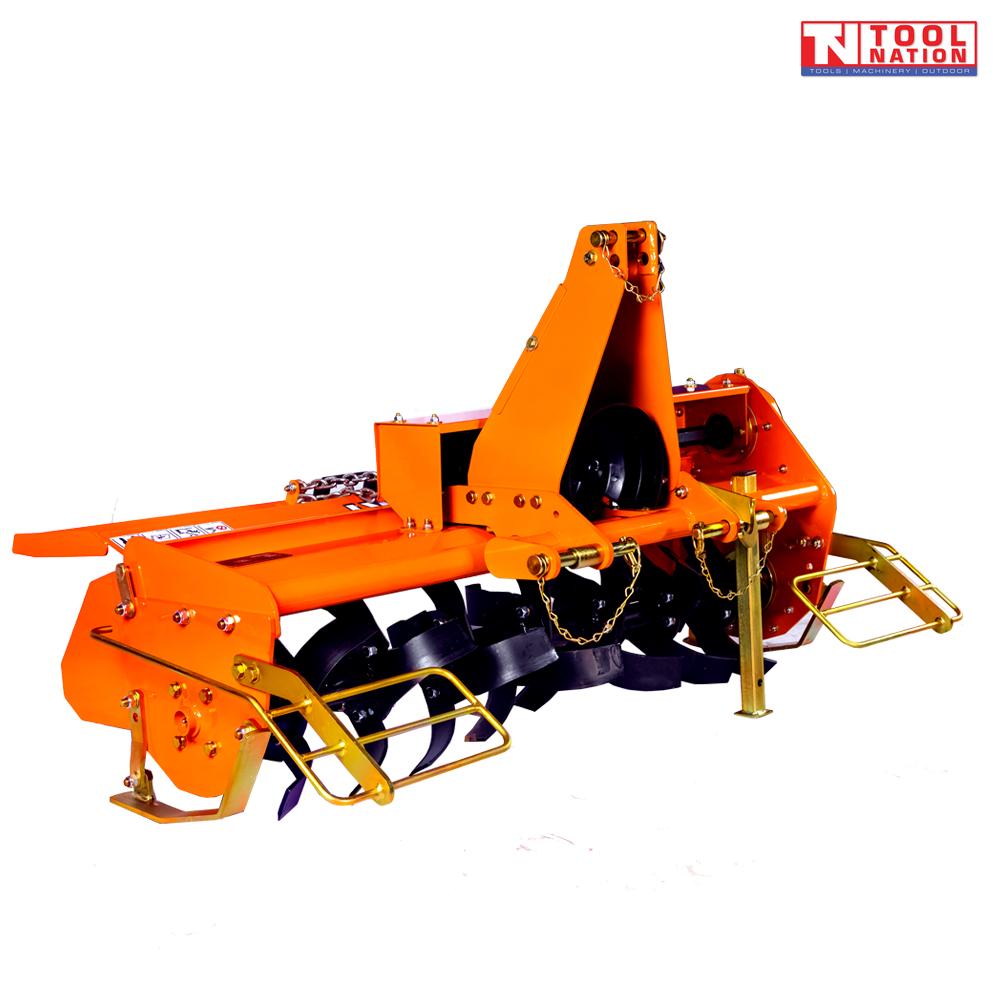

Rotary Tiller 135CM Chain Drive with Safety Slip Clutch
The Millers Falls FIRTL135 Rotary is a high-quality and durable tiller designed for proper soil cultivation. It offers several benefits such as promoting seed germination, plant emergence, and root growth. It also enhances soil moisture retention and inhibits weed competition. Additionally, it can incorporate chemical ameliorants and manures, as well as prepare a suitable seed bed.
The tiller is most suitable for hobby and lifestyle farms applications, it is designed for Australian working conditions and are robust enough to handle tough jobs. They are built with durability in mind, featuring 6mm thick and 60mm wide hardened steel tynes that are replaceable and curved. The tiller is equipped with 7 flanges, with 4 tynes per flange, ensuring efficient tilling.
The FIRTL135 is a reverse-till model, which means it requires fewer passes compared to traditional tillers, making seed bed preparation more efficient. It is also equipped with a lightweight yet durable chain drive system. In the unlikely event that the chain breaks, it can be easily replaced minimizing downtime and maintenance hassles.
The Millers Falls tillers are designed to thoroughly mix the soil with their massive sidewise curved tynes. This ensures that the cultivated soil becomes a good base for sowed seeds. These tillers are also effective in destroying old turf and are suitable for a range of farming industries, including vineyards and orchards. They can easily aerate the soil, improve drainage, and mix in fertilizers, leading to improved soil quality and better yield.
These tillers are laser cut from steel plates and utilize a tab and weld design for maximum manufacturing accuracy and strength. The gearboxes used in these tillers are over-engineered for reliable performance in harsh farming conditions, coupled with a slip clutch for maximum protection of the gearbox and PTO shaft.
Note: Requires addition of 85W140 gearbox oil prior to operation
Product Features:
Adjustment on skids that allow for depth control.
Rear deflector keeps soil and debris beneath the tiller for thorough pulverisation
Supplied complete with PTO drive shaft with Safety Slip Clutch
For use with 18-30 hp tractor
Suits Type CAT 1 3-point tractor linkage
Rugged steel construction
Powder coated finish
Specifications:
Model: FIRTL135
Working Width: 1300mm
Working Depth: 90mm
Number of Tynes: 28
PTO Speed: 540r/min
Dimensions: 2300-2600 m2/hr
Assembled Dimensions: 1550 x 800 x 750 mm
Shipping Dimensions: 1500 x 680 x 550 mm
Weight: 240kg
