1500mm Offset Disc Harrow 16 Disc Cat 1 25-40HP
Estimate only. Final freight options are confirmed in checkout.
FIDISCH5

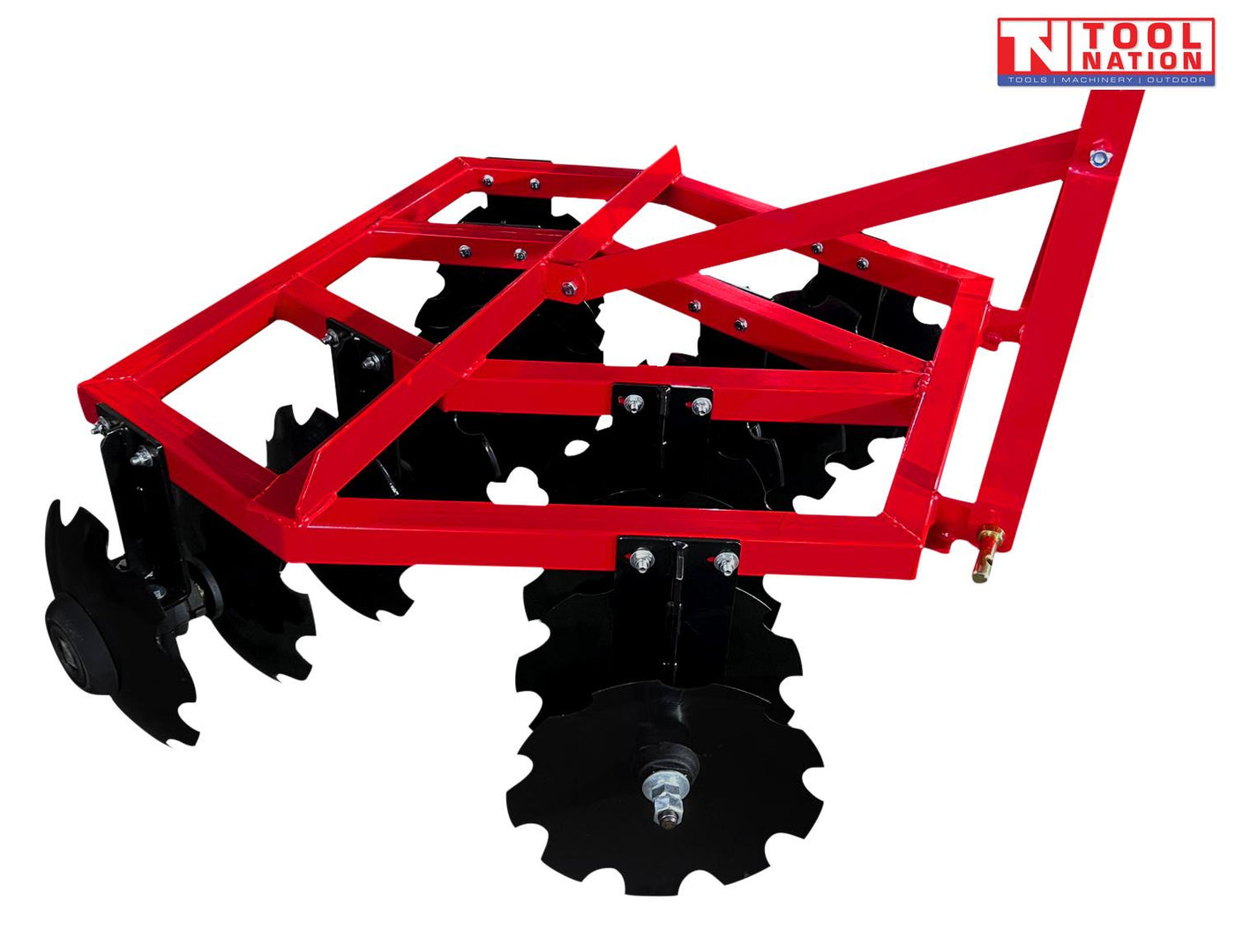

Disc Harrow Offset 1500mm 5” Fabricated Steel Frame
The 400mm Notched Disc Harrow is the ideal tool for tilling your land or field and chopping up unwanted weeds or crop debris. The concave discs work to loosen and lift soil as this tool works through your fields turning soil and breaking up crusted ground. Chops unwanted weeds and crop debris with ease.
With the Category 1, 3 Point Disc Harrow, you can easily till up your land to prepare it for planting. The 400mm 16” notched offset discs are perfect for breaking up the ground and ripping through the weeds and unwanted debris. The implements feature four axles of notched discs with 3 or 4 discs on each. Each disc is spaced 190mm apart. These sealed cast iron caps and spools are greaseable to smooth the harrow discs' rotation.
For best results soils should be previously ploughed or damp where greater penetration can be achieved. Offset disc arrangement is considered best for breaking up and moving soil also useful for mixing in fertilisers and soil additives.
The support frame is constructed using 65 x 65mm steel tubing, which is powder-coated to prevent rust and corrosion. The Disc Harrow is designed to attach to your tractor’s Cat 1, 3 Point Hitch. The included 90mm long lower lift pins sit 710mm, centre to centre. This disc harrow is a must-have for anyone looking to turn their soil, break up the crusted ground, and control weeds in their field at an affordable cost.
Features:
Designed for Category 1, 3 Point Hitch
40mm offset notched hardened steel discs
Discs are spaced 190mm apart
Concaved Discs to allow to loosen and lift the soil as it cuts
Great for breaking up weeds, roots, crop debris, and remainder
Powder-coated steel frame to prevent rust and corrosion
Included: Lower lift pins
-
A total of 8 cast grease packed hubs, 4 per row
Specifications:
Tractor Power: 25 - 40HP
Linkage Type: Cat 1
Overall Length: 1700mm
Overall Width: 1570mm
Overall Height: 1210mm
Working Width: 1480mm
Working Depth 160mm
Number of Discs: 16
Disc Spacing: 190mm
Lower Lift Pin Spacing: 710mm
Packed Dimensions: 160 x 130 x 65 cm
Weight: 250Kg
