150cm Bale Gripper Euro Hitch 1200kg Capacity
FIBGL150
Bale Gripper 150CM 1200KG with Euro Hitch suit Tractor FEL and Skid Steer Loader
The Millers Falls FIBGL150 Bale Gripper is a versatile and efficient tool for transporting round hay bales and silage bags. Made with durable structural steel, this gripper features tubular arms that open to a maximum width of 1955mm allowing for the easy pickup and transport of round hay bales up to 1825mm wide. It has a weight load capacity of 1,200 kg and is equipped with a hydraulic cylinder for efficient operation.
The design of the grab bars allows for a secure grip on round bales and has an opening of 1.8 meters, ensuring that bales are held firmly in place during transport. The smooth finish of the bale grab minimizes damage to the bale packaging, keeping the hay in merchantable condition and preventing spillage.
This bale gripper is an excellent alternative to bale spears or other forms of bale collection that can rough up and damage the hay. It collects bales from the field, transports them to livestock, and stacks them in barns in a way that reduces wasted product from tearing and spillage.
With tubular arms that open to a maximum width of 1825mm and an arm gripper depth of 890mm this gripper can accommodate most round and square hay bales. Its heavy-duty frame can hold bales of all shapes and sizes up to 1200kg, saving time and reducing the workload.
The hydraulic cylinder design minimizes unnecessary components, keeping maintenance costs low and prolonging the lifespan of the attachment. It is equipped with a universal Euro quick-mount hitch that can accommodate most tractor loaders and skid steer models and allows for quick transitions between other attachments.

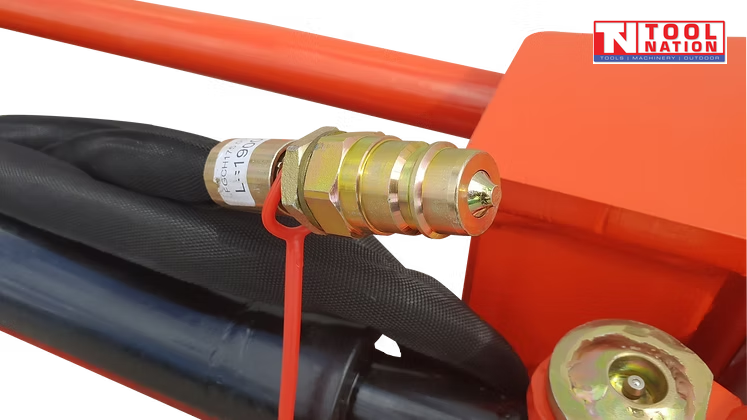

The attachment also comes complete with hydraulic hoses and flat face couplers.
In summary, the Millers Falls FIBGL150 Bale Gripper is a reliable and efficient tool for transporting round hay bales and silage bags. It saves time, energy, and labour, while minimizing bale damage and reducing wasted product.
Features:
Excellent alternative to bale spears
Handles round and square bales
Smooth design ensures no damage to bales or packaging
Designed to fit Euro hitch front end loaders and skid steers
Includes hoses and male flat-face couplers
Oversized hydraulic ram
Heavy-duty steel frame with tubular arms
Powder coated finish

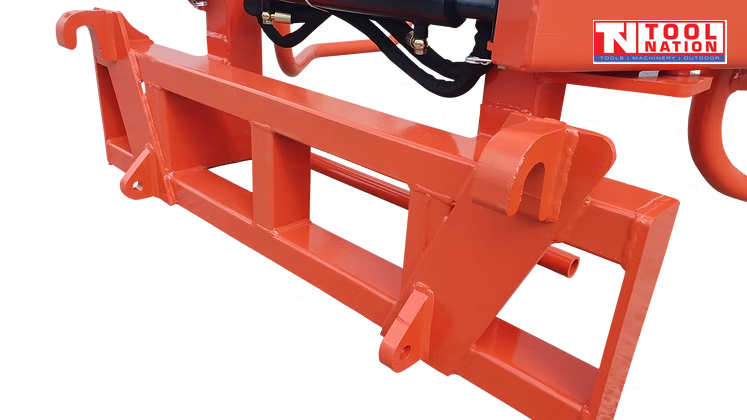

Euro Hitch measurements
Top hook diameter 40mm
Lower pin hole diameter 23mm
319mm from top of top hook to centre of lower pin
740mm inside to inside of lower pins
1080mm outside to outside of top hooks
Specifications:
Model: FIBGL150
Overall Height: 875mm
Overall Width: 1340mm
Overall Depth: 1425mm
Max Arm Opening: 1955mm
Min Arm Opening: 765mm
Connection Type: Euro Linkage
Hydraulic cylinder with 1,200 kg lift capacity
Packing dimensions: 134 x 134 x 90cm
Weight: 210Kg
