150cm Tipping Transport Carry All Box 500kg Capacity
Estimate only. Final freight options are confirmed in checkout.
FITB150

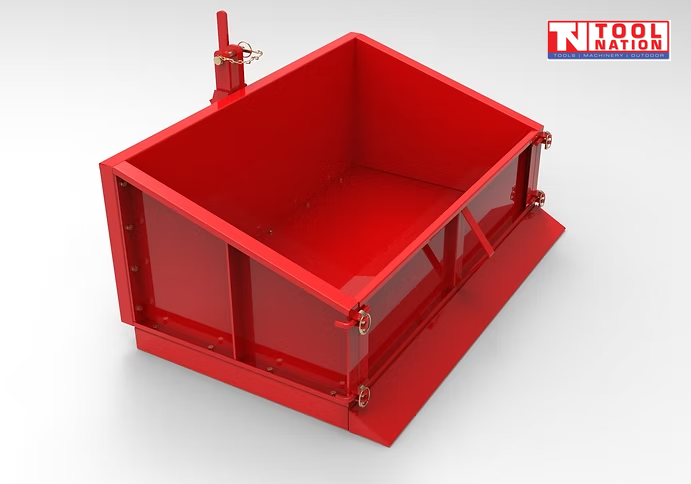

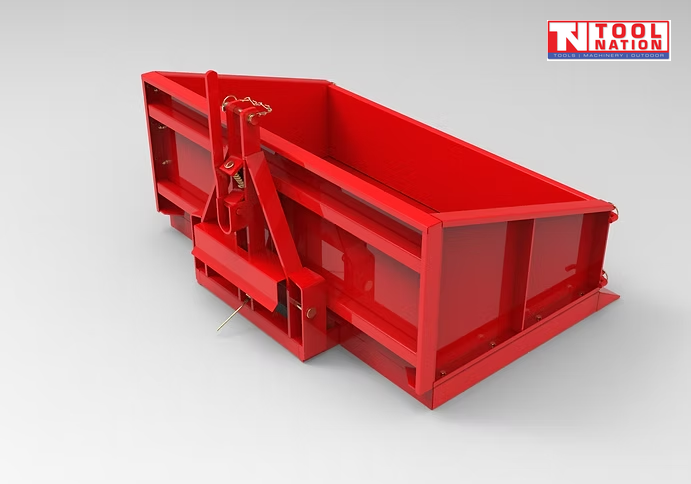

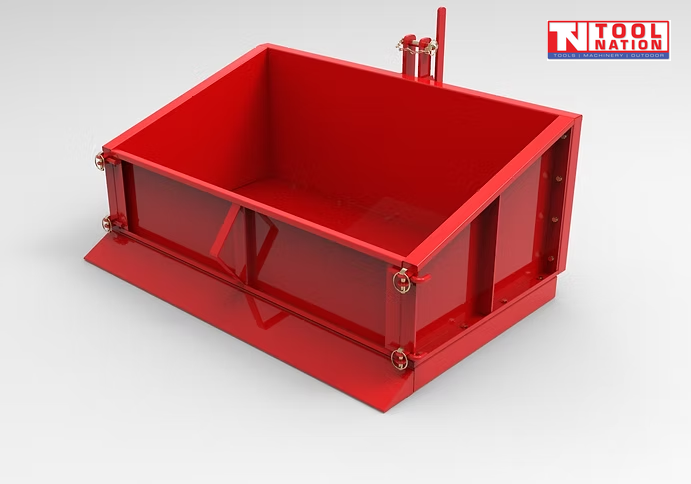

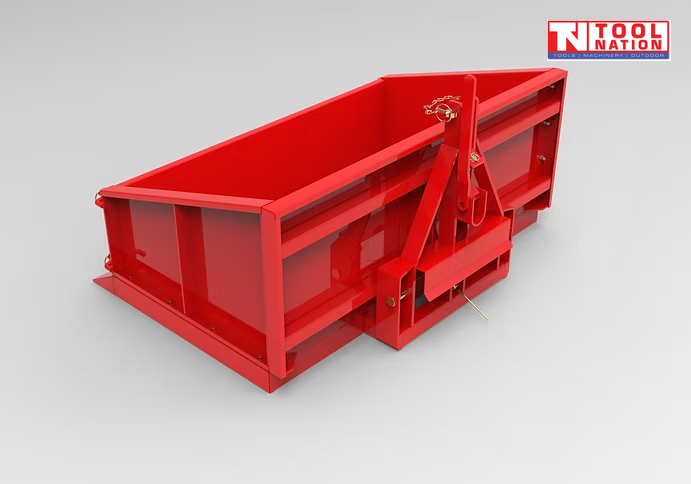

Tipping Transport Carry All Box 150cm for 3-point Linkage Tractors
The carry all box attaches to your small to medium tractor via the three-point linkage. The linkage controls allow the operator to adjust the height and angle of the box. This carry all box also features a removable tail gate and a simple gravity tipping mechanism.
The multiple use transport box is made from reinforced steel so can handle loading and transporting everything from sand to snow and Ice. It can also be used for digging, leveling, grading and dumping a variety of applications and materials.
With a simple Pull cord manual tipping mechanism, the operator can quickly dump the entire load without leaving the seat.
Features:
3-point linkage connection
Sturdy steel construction
Light but efficient design especially for small compact tractors.
Effective pull-cord trip mechanism means seamless tipping and loading in one motion, ready for the next load.
Steel base and side cutting edges provide excellent penetration and durability.
Reinforced rear base for reversing into loose materials for easy loading
High walls to allow transporting taller items
Innovative weight distribution design lifts the box for the middle rather than the rear decreasing stress placed on the box. It does not need to be lifted as high for goods to be tipped, simplifying the job and giving the box longevity.
Specifications:
Tractor Recommended: 20 - 50hp
Max Angle of rotation: 52 degrees
Loading Capacity: 500kg
Weight: 130kg
Dimensions: 926 x 1500 x 630mm
