160cm Medium Duty Slasher with Safety Slip Clutch 25-50HP
FIDSM160
SLASHER MED DUTY 160CM with Safety Slip Clutch

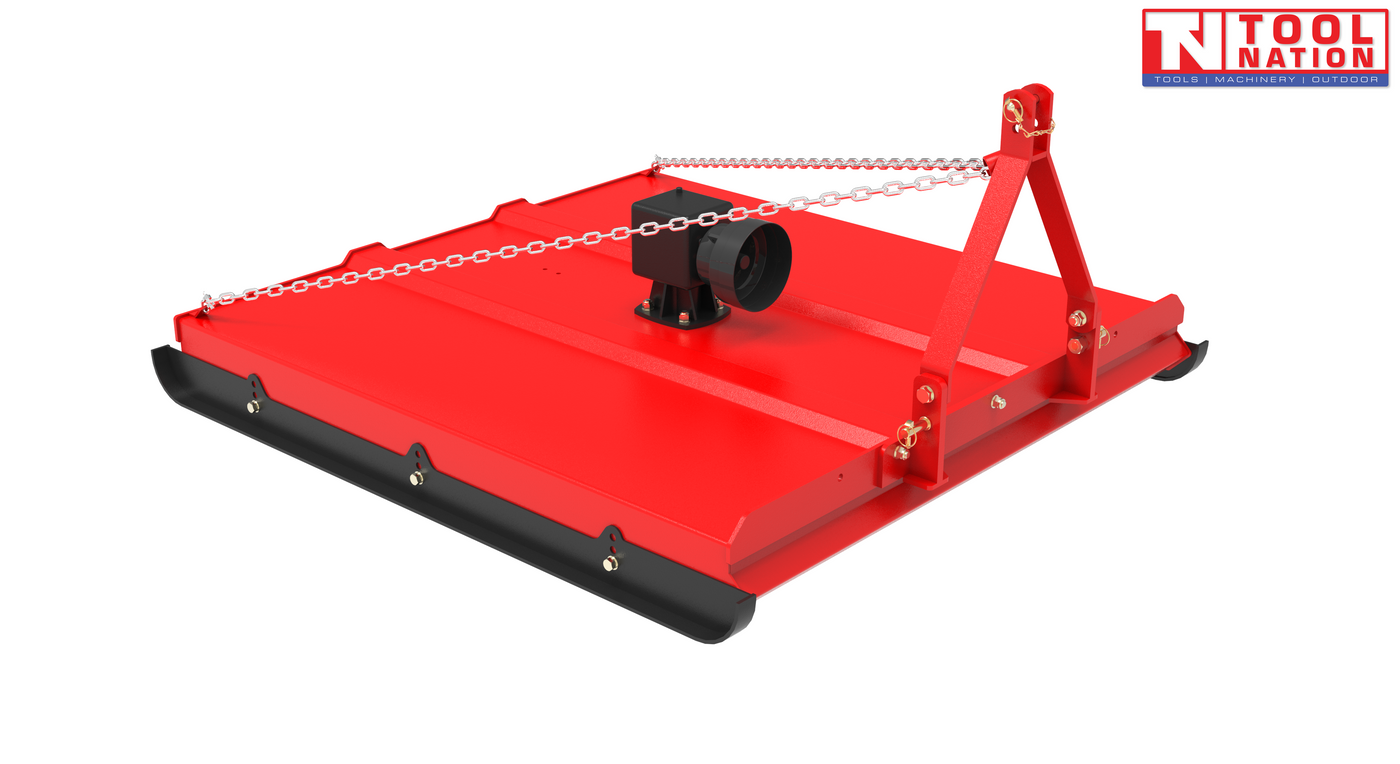

The Millers Falls FIDSM160 medium duty slasher is a 160cm slasher that is specifically designed for use with medium and compact tractors. It is perfect for cutting grass and undergrowth on your property. The slasher features a reinforced deck and a floating A Frame with rear discharge and adjustable skids, it is suitable for use with many smaller to medium tractors.
The slasher is built to be durable and can withstand rugged conditions and heavy workloads. It is constructed from premium materials, ensuring long-lasting performance. It is also compatible with a wide range of tractors, offering convenience and easy attachment for various farming operations.
The slasher has a heavy-duty 4mm deck with an additional 6mm of plating under the gear box. The 50hp gear box has been tested over many years and is proven to hold up under the harshest conditions. The slasher also features step-down blades to reduce the risk of the cutter bar hitting objects, the deck also has reinforcement on the underside helping to keep the deck straight thereby reducing water pooling and prolonging its life.
Additionally, the slasher has top link chains that connect to the rear allowing the deck to float over undulating terrain. It also has an adjustable cut height of 20-80mm.
For safety the slasher has a rear flap to prevent stones or solid object from being thrown backwards. The front of the slasher has a special design feature allowing grass to enter but preventing objects from being discharged forwards. The gearbox is supplied with a safety cover over the PTO shaft.
The slasher is perfect for a variety of applications, such as slashing a variety of grasses, small trees and light scrub, clearing road sides and creating firebreaks. It is particularly well-suited for use in open grassy areas.
In summary, the Millers Falls FIDSM160 medium duty slasher is a versatile and durable attachment that is perfect for maintaining your property and tackling tough vegetation management tasks. Whether you need to cut grass, clear undergrowth or clear road sides, this slasher is designed to efficiently get the job done.
Note: Requires addition of 85W140 gearbox oil prior to operation
Product Features:
High Grade Steel Rotor Bar and Heat-Treated Cutting Blades
Solid Steel Deck
Cutting Height Adjustable Skids 25-80mm
Step down blades reduce the risk of cutter bar hitting objects
Max PTO Speed 540Rpm
Recommended for tractors 25-50hp
Deck made with quality steel with strengthened underbody frame.
High quality 50 hp lower noise level cast iron gearbox.
Complete with PTO Shaft with Shear Pin Protection
Powder coated finish for long life easy maintenance.
Suits 3-point tractor linkage (Cat 1).
Specifications:
Model: FIDSM160
Cutting Width: 1560 mm
Number of Cutting Blades: 2
Cutting Height-with adjustable skids: 25-80mm
Working Efficiency: 30,000-55,000 m2/h
Recommended Tractor HP: 25-50 hp
PTO Speed: 540 rpm
Gearbox: 50 HP
Deck Material thickness: 4mm
Side Skid Material Thickness: 6mm
Assembled Dimensions: 1830 x 1715 x 959 mm
Shipping Dimensions: 1750 x 1650 x 450 mm
Weight: 250 kg
