17.6 kVA Diesel Generator 240V Kubota Powered
Estimate only. Final freight options are confirmed in checkout.
GSD20KL-240

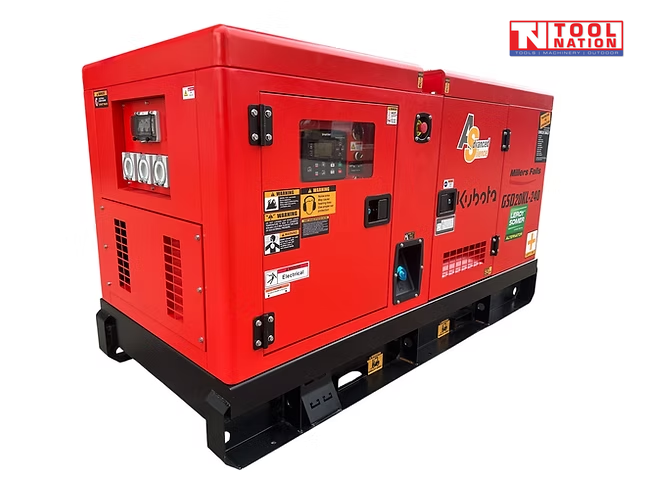

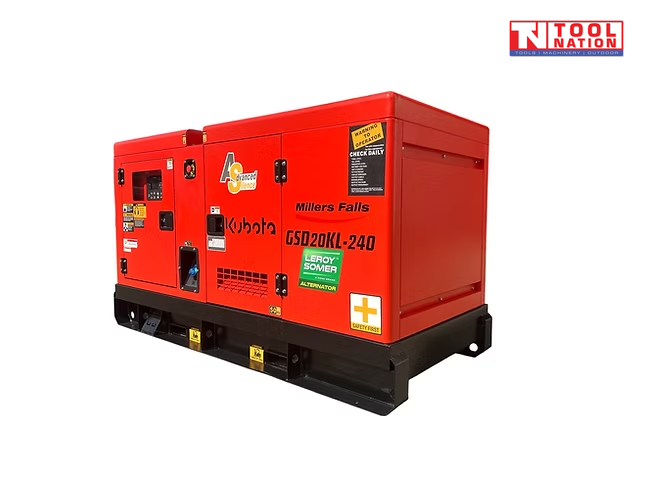

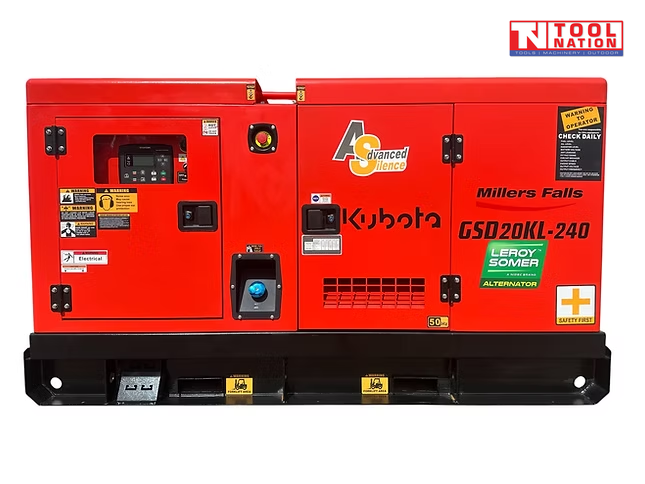

Millers Falls 17.6 kVA Diesel Generator 240V – KUBOTA Powered
This Millers Falls 240v Single phase generator is powered by one of the most famous and reliable Diesel engines in the world the KUBOTA V2203. A 4 Cylinder Diesel Engine partnered with high quality Leroy Somer 4 Pole brushless alternator; this generator offers a high-performance cost-effective solution to your power generation requirements.
The Millers Falls 17.6kVA single phase 4-pole KUBOTA powered generator is perfectly suited for commercial or industrial applications as well as backup power for homes or offices. It offers 16.0 kVA power at prime load and together with its bunded 111 litre fuel tank can provide a consistent output of up to 24 hours. As a standby generator it offers a 17.6kVA of silenced power operating at just 67 dBA at 7 meters sound level.
Built to meet highest Australian standards the Millers Falls GSD20KL-240 Kubota powered generator features: earth leakage protection, quality RCBO’s- IP67 protected, approved IP66 outlets and industry leading safety features plus RCBO protected hardwire terminals.
With its 1500 RPM Kubota 4-cylinder industrial engine Leroy Somer alternator contained in a robust sound deadened and heat insulated lockable cabinet the Millers Falls GSD20KL-240 is a quality generator that you can always depend on. The oversize 50-degree radiator allow the generator to keep preforming even in Australia’s extreme temperatures.
The Millers Falls range of generators are known for producing a stable and consistent output with industry-leading reliability.
Features:
- Fitted with a world-famous reliable KUBOTA 4 Cylinder Diesel Engine.
- Leroy Somer World-leading high-quality Alternator
- Robust Design and built silenced canopy designed for outdoor use.
- Double Bunded Fuel Tank
- Drain Plugs Fitted: Water, Oil, Diesel
- Fork Slippers and Lifting Hooks for ease of manoeuvrability
- 24 hr Fuel Tank
- 50°C temperature rating, oversize radiator allows for extreme temperature conditions.
- 24 hours continuous stable power at prime load. The low 1500 RPM engine generates a more stable operation.
- Silenced Operation 67 dBA at 7 metres.
- Fuel-efficient 3.51 Litres/Hour at prime load.
- Oil Pressure Shutdown, Over Temperature shutdown,
- Interior Cabinet Light with switch
- Emergency E Stop
- Hardwire Terminals with RCBO additional protective cover.
- Site Safe Lockable Canopy
- Australian Compliant Wiring and M.E.N link
- Easy to use Smartgen Controller
- 2 Wire Remote Start Capable
- ATS Function Connection Socket
- Remote Start 4G Function Capable
- Shunt Relay
- Australian Safety Standards compliant.
Specifications:
| Specification | Details |
| Prime Power | 16 kW / 16 kVA, 240 Volts, 67 Amps |
| Standby Power | 17.6 kW / 17.6 kVA |
| Power Factor | 1 |

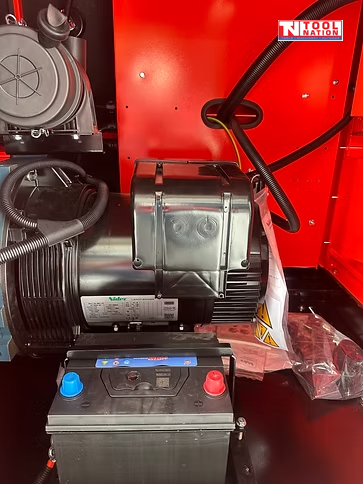

| Alternator | Leroy Somer Quality 4 Pole Brushless Synchronous c/w AVR |
| Phase Voltage | Single Phase 240 Volt |
| Frequency | 50 Hertz |

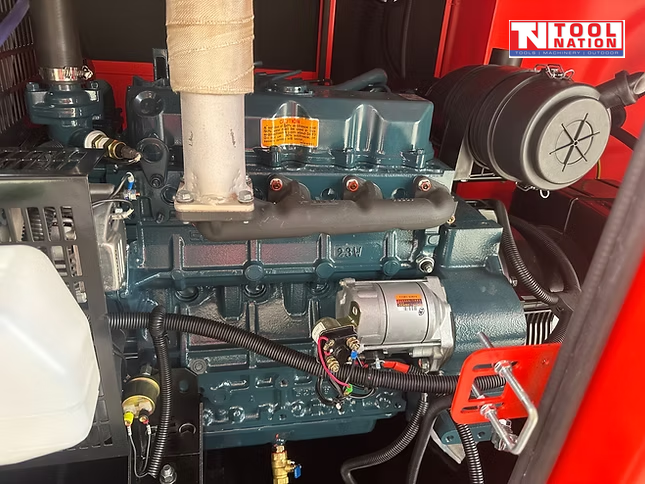

| Engine | KUBOTA 4 Cylinder Diesel V2203 |
| RPM | 1500/min |
| Cooling Method | Water Cooled – 50 Deg Radiator Rated for High Temperatures |
| Starting System | 12-volt Electric – Heavy Duty Battery and Charger Included |
| Controller | Smartgen 6120 |
| Remote Start Capability | 2 Wire / Remote Start Capable |
| Over Temperature Protection | Included |
| Over Current Protection | Included |
| Low Oil Protection | Included |
| Lockable Battery Isolator | Included |
| Emergency Stop | Included |
| Shunt Relay Auto Stop | Included |
| Noise Level | 67 dBA at 7 metres |
| Running Time | 24 Hour Prime Load Fuel Tank |
| Fuel Tank Capacity | 111 Litres (c/w Fuel Gauge) |
| Fuel Consumption | 3.51 litres/hour (prime load) |
| Cabinet | Lockable, Sound Deadening Throughout, Powder Coating suitable for External Use |
| Bunded Fuel Tank Mine Site Ready | Included |
| ATS (Mains Failure) | Easy Connect Plug |

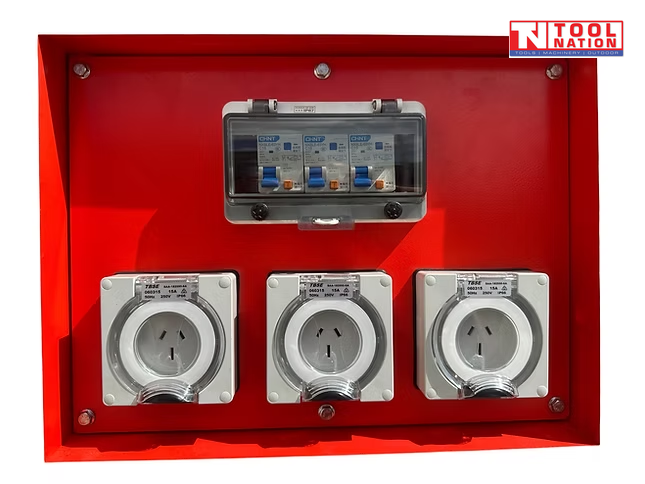

| Single Phase Outlets | 3 x 15 Amp IP66 |
| Hardwire Terminals | Included |
| RCD / RCBO | Australian Standard (IP67 Enclosed) |

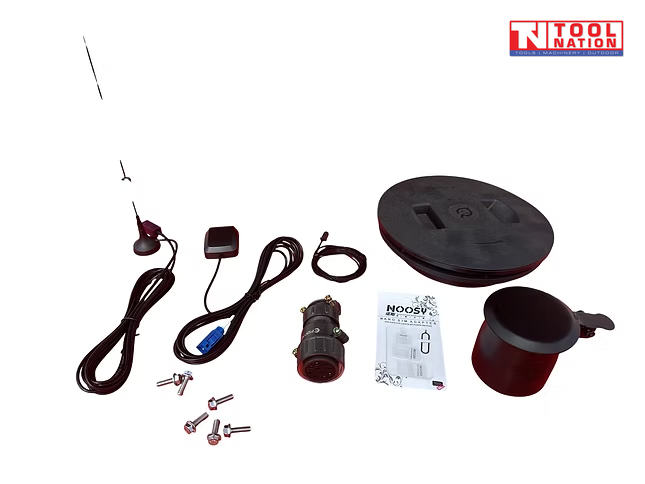

Options: Automatic Start Systems
GSM -G4
ATS (Mains Failure Auto Transfer Switch)
2 Wire Remote Start (Socket Fitted)
Weight: 620 kg
Dimensions: 220 L x 94 W x 115 H cm
