170kg Plate Compactor 9HP 30kN
Estimate only. Final freight options are confirmed in checkout.
CPC160HC

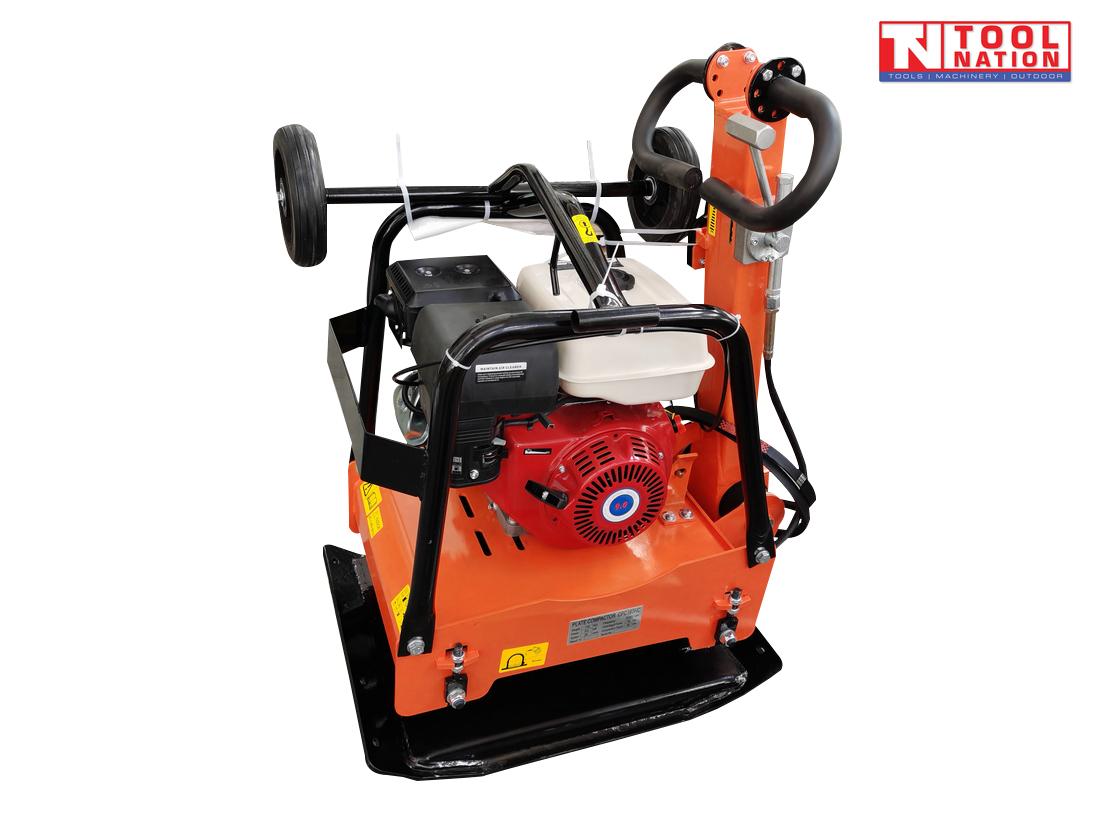

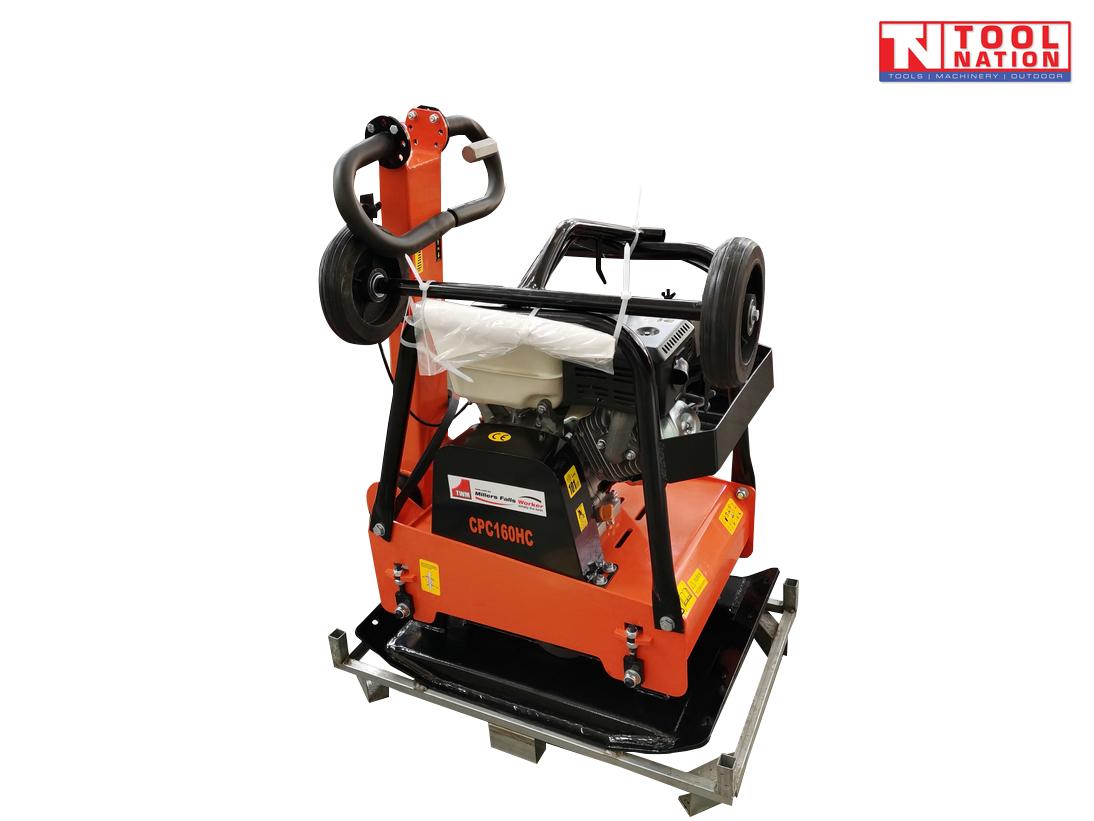

Plate Compactor 170kg 9.0 HP with Millers Falls Engine
Description:
The CPC160HC 170kg plate compactor is a versatile and powerful machine designed to provide efficient compaction of various materials.
With a compaction depth up to 450mm this mechanically reliable compactor is ideal for Sewer trenches,
general road-building projects, compacting foundations and backfills and all standard jobs requiring
a heavy duty 170kg plate compactor.
Features:
Wrap around protection cage protects the machine from accidental job-site damage.
Forward and backward compacting operation is easily obtainable via the simple forward and reverse control.
The large size engine frame gives outstanding protection against damage.
Fully enclosed V-Belt drive for better safety and trouble-free use.
Square shaped bed and handles enabling changing direction with ease.
Curved edges for easy access into corners during compaction.
Foldable handle making storage and transportation effortless
Supplied with wheel kit for ease of transportation
Built in lifting hook allowing loading and unloading with lifting device.
Open bottom plate to facilitate self-cleaning.

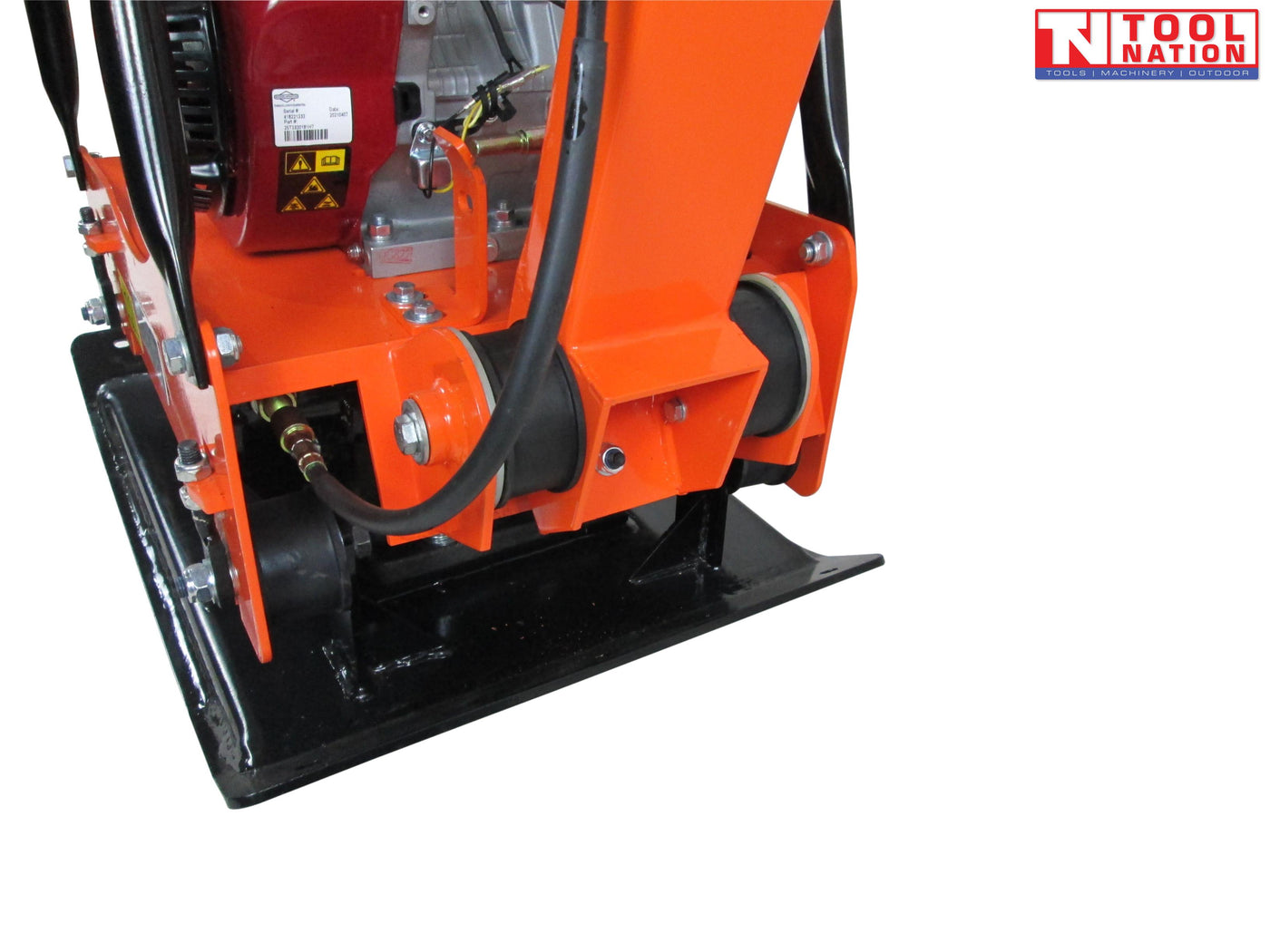

Heavy-duty shock mounts reduce vibration to the upper engine & handle.

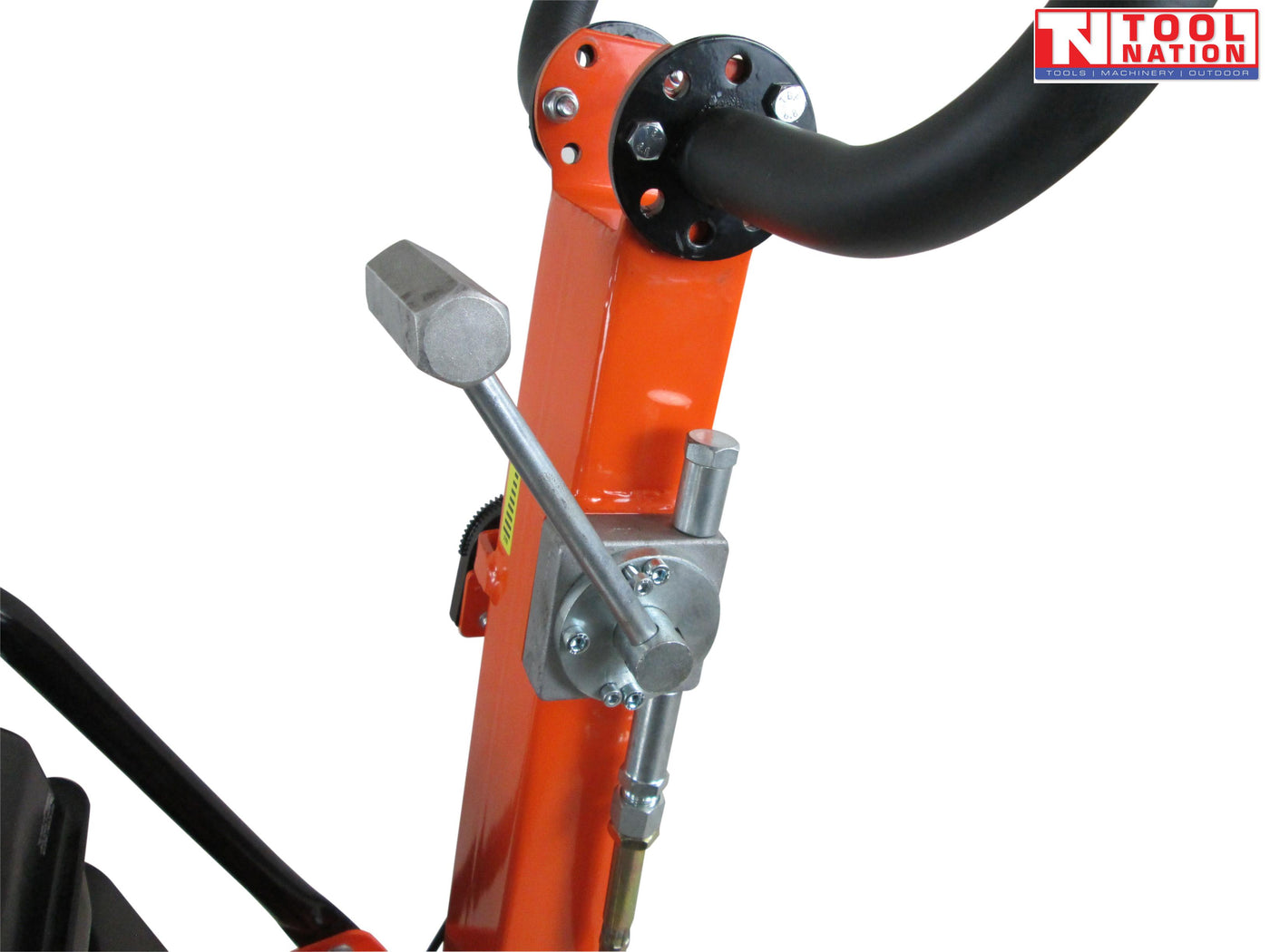

Heavy duty industrial throttle control is available as standard.
Specifications:
Engine Type : Air-Cooled Single Cylinder 4-Stroke
Engine : Briggs & Stratton 25T2
Power (HP) : 9.0
Size of Base Plate (L x W) (cm) : 70 x 50
Max. Centrifugal Force (KN) : 30
Vibration Frequency (V·P·M) : 4200
Compaction Depth (cm) : 45
Travel Speed (cm/s) : 25
Net weight (Kg) : 170
Shipping weight (Kg) : 190
Shipping Size (L x W x H)(cm) : 83 x 53 x 105
