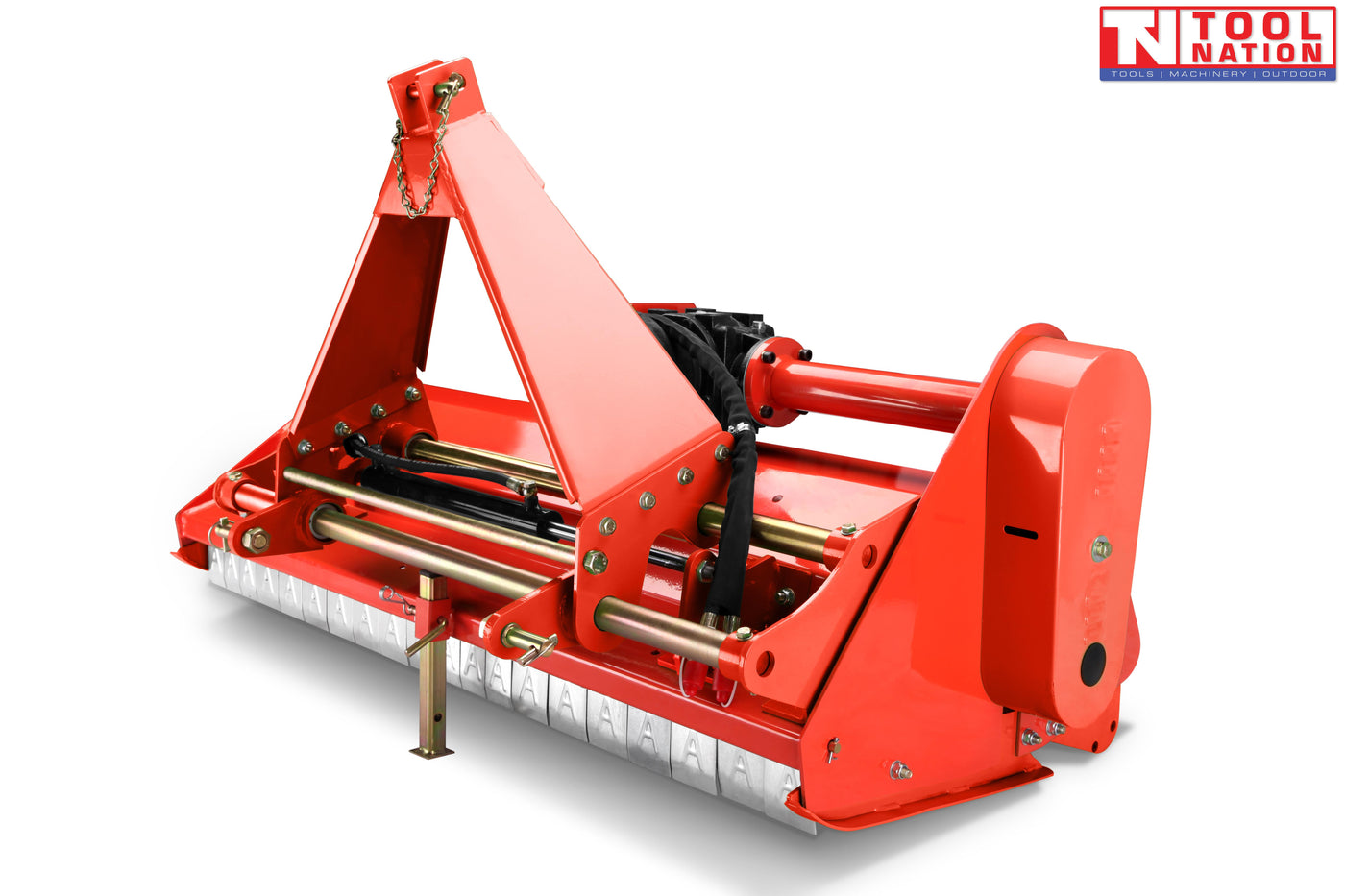

1720mm Heavy Duty Flail Mower Hydraulic Side Shift 30-50HP

FIEFGCH175

Flail Mower 1720mm Heavy Duty Hydraulic Side Shift Suit 3PT Linkage Tractor

The Millers Falls Flail Mower is ideally suited to tough Australian conditions. It is heavy duty yet compact with a 50mm scrub and bush cutting diameter making it a perfect choice for tractors in the range 30-80hp. All Flail Mowers come standard with Hammer Blades as we have found these blades perform the best across various mowing conditions.

The Flail Mower with Hydraulic Side Shift is designed to make easy work of cutting roadsides, fence lines, and more. The Mower will make easy work of maintaining vegetation such as grass, heavy undergrowth, and tree pruning. With the ability to slide 7" in either direction (left or right), this flail mower makes those hard-to-reach areas an easy cut! This attachment is compatible with Category 1 tractors, the 3 Point hitch makes for a quick and simple connection. It is powered by a PTO shaft with a heavy-duty gearbox that turns the robust rotor which holds 28 forged hammers cutting the mowed material down to a minimum, this allows the cuttings to decompose quickly. We use forged hammer flails to ensure that perfect mowing, even when facing heavy undergrowth and bushes. Even in rough terrain, the heavy roller in the back assists in smooth performance. This Flail Mower is perfect for maintaining your fields, orchards, vineyards, and other farm properties.

If you're needing a mower that will cut through heavy grass and scrub, then this flail mower is for you. Using your tractor's PTO and hooked up by the 3-point linkage, you'll find this unit great for providing a rough cut to taller grass. Best of all it will provide trouble free service.

Features:

• Hydraulic side shift function

• Heavy duty, powder coated steel construction

• 28 Forged Hammers

• Intake Safety Flaps

• Discharge Heavy Roller

• Durable safety PTO cover

• Oil bath gearbox

• Suits Cat 1, 3 Point Linkage

• Recommended for Tractors 30-80Hp

• PTO Shaft 6 Spline 1-3/8” with Safety Shear Bolt Included

Note: Requires addition of 85W140 gearbox oil prior to operation

Specifications:

Model: FIEFGCH175

Cutting Width: 1720mm

Cutting Height: 0-60mm

Rotor Diameter: 108mm

Number of Hammers: 28

Number of Drive Belts: 3

Overall Side Shift Distance: 348mm

Offset Distance Right of Center Mount Pos 1. 825mm

Offset Distance Right of Center Mount Pos 2. 925mm

PTO speed: 540r/min

Tractor power: 30-50HP

Weight: 369kg

Assembled Dimension: 1865 x 925 x 1035mm

Shipping Dimension: 1900 X 820 X 620mm
