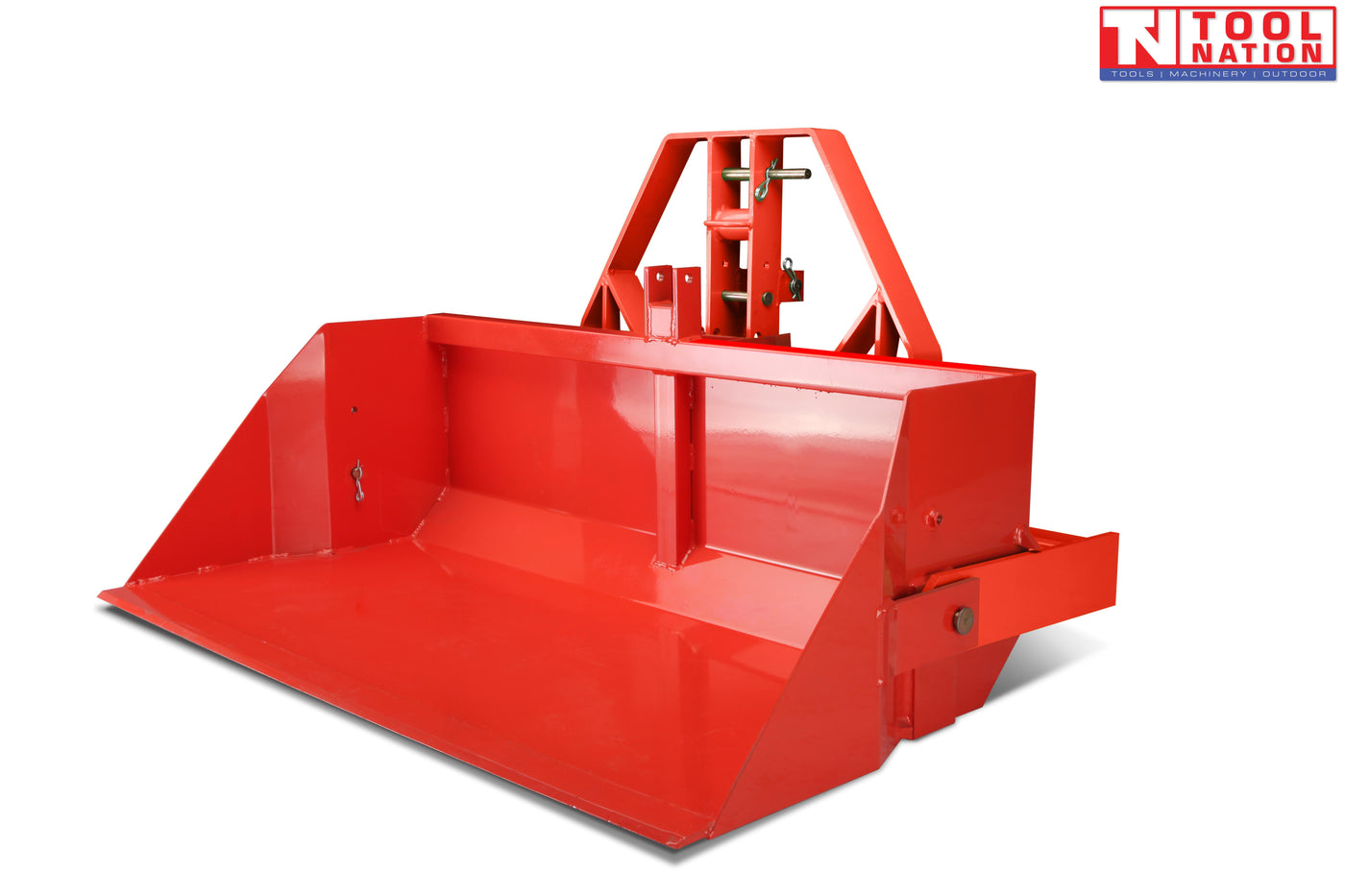

180cm Hydraulic Rear Mounted Tractor Loader Bucket 700kg Capacity
FITB6H
TRACTOR LOADER BUCKET HYDRAULIC REAR MOUNTED 180CM for 3 Point Linkage
The FITB6H is a versatile and reliable 3-point hydraulic tipping bucket for tractors up to 70hp. It can be easily attached to the tractor using the 3-point hitch, allowing for easy transportation and movement of materials such as sand, soil, and gravel. With its sturdy construction, it is capable of performing earth works without the need for a front-end loader.
The FITB6H heavy multiple-use transport box is a reinforced steel box that can handle various materials and applications. It can be used for loading and transporting materials like sand, soil, rocks, garden material as well as digging, leveling, grading, and dumping. The hydraulic tipping mechanism, operated from the cabin of the tractor, allows for easy tilting at any angle, making it suitable for use as a shovel or for scattering materials.
With a heavy design, the transport box can handle up to 700kg of load, and its 1.0 cm hardened steel base and side cutting edges provide excellent penetration and durability. The innovative weight distribution design of Millers Falls tractor bucket lifts the box from the middle instead of the rear, reducing stress on the hydraulic cylinder.
The Millers Falls tractor loader bucket is designed for optimum performance even on uneven grounds. Its three-point hitching and hydraulic tipping offer reliability and practicality in any agricultural context. It is suitable for a wide range of materials and can handle transportation, lifting, and loading tasks efficiently.
The FITB6H rear loader bucket is essential piece of equipment for handling various tasks as well as transporting equipment and tools, fuel tanks, mist sprayers, generators, and debris. It offers versatility in everyday farming tasks and optimizes material handling.
The heavy-duty tractor loader bucket is a reliable investment for optimizing transport and lifting operations in agricultural settings. It combines advanced functionality, robustness, and versatility, making it a smart choice for farmers seeking maximum efficiency and convenience. Equipped with features designed for superior performance, it is a valuable addition to any farm.
Features:
180 cm welded blade for reliable and durable performance.
Hydraulic tipping for efficient load handling.
Compact size for easy storage and manoeuvrability.
Sturdy design for strength and durability.
Useful bucket for transporting bulky materials.
Sturdy support bar for greater stability and security.
Standard hydraulic cylinder + 2 hydraulic hoses 1.50m with connections 1/2”.
Safety pin facility to avoid tipping out contents unintentionally while on the road.
Robust steel construction
Fits any standard 3-point linkage (Cat 1 and 2)
Powder coated finish for long life easy maintenance.
Specifications:
Model: FITB6H
Bucket Width: 1800mm
Bucket Height: 950mm
Bucket Depth: 1000mm
Capacity: 0.56 m3
Payload Capacity: 700 kg
Maximum HP: 70hp
Tipping degrees: 80°
Min./Max. Relief Pressure: 120 - 150 bar
Min./Max. Flow: 18 - 22 l/min
Frame Tubing Size: 100 x 100 x 12mm
Overall Dimensions: 2030 x 1065 x 950mm
Packing Dimensions: 1830 x 800 x 520mm
Weight: 235kg
