1814kg Hydraulic Gear Driven Car Rotisserie with 360 Degree Rotation

RR4000GB

The RR4000GB 1814kg (4000lb) Hydraulic Gear Driven Car Rotisserie is the ideal tool for restoring old cars, trucks, boats, and more to their former glory. This high-performance rotisserie is perfect for professional workshops and enthusiasts looking to restore vehicle bodies, chassis, or boat hulls with ease. Featuring twin 8-ton hydraulic rams, this rotisserie allows for smooth, powerful lifting of your project, with adjustable height up to 1150mm above the bottom rail for optimal access.

The fully adjustable design, coupled with a robust powder-coated steel frame, ensures the rotisserie is highly durable, rust-resistant, and long-lasting. With a flexible working length that extends over 6 meters, and customizable support arm width and balance, the RR4000GB provides full control over the position and rotation of your project. The 360-degree rotation ensures you can easily access all angles for a thorough restoration. Equipped with locking pins made from 3mm high tensile steel and heavy-duty castors, this rotisserie is built for secure and effortless movement, making it easy to store when not in use.

The RR4000GB Hydraulic Gear Driven Car Rotisserie is designed to provide maximum control and versatility for large-scale restoration projects. Its durable construction, adjustable features, and ease of use make it an essential tool for professionals working on vehicle or boat restoration.

Features

Features:

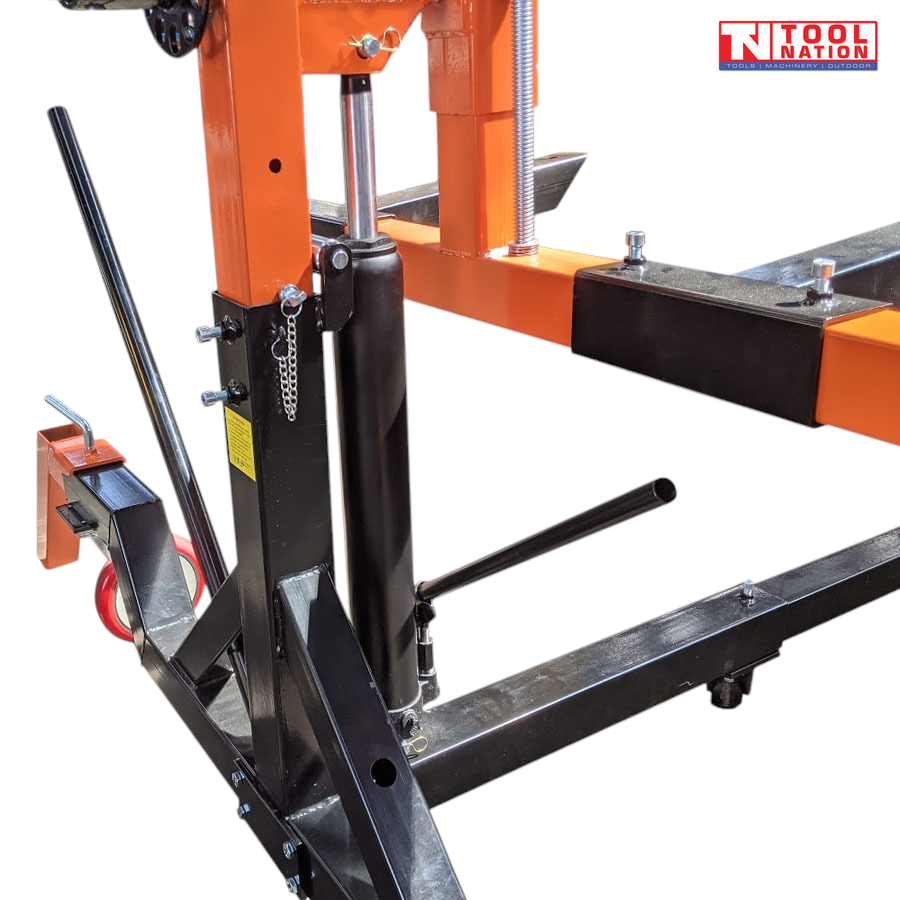

• Heavy-Duty Capacity: Lifting capacity of 1814kg (4000lb) with twin 8-ton hydraulic rams for heavy-duty lifting.

• Adjustable Height: Lifting arms adjust up to 1150mm above the bottom rail for maximum accessibility.

• Customizable Length: Working length adjustable to over 6 meters, offering flexibility for various projects.

• 360-Degree Rotation: Allows full rotation of the vehicle for optimal access and positioning.

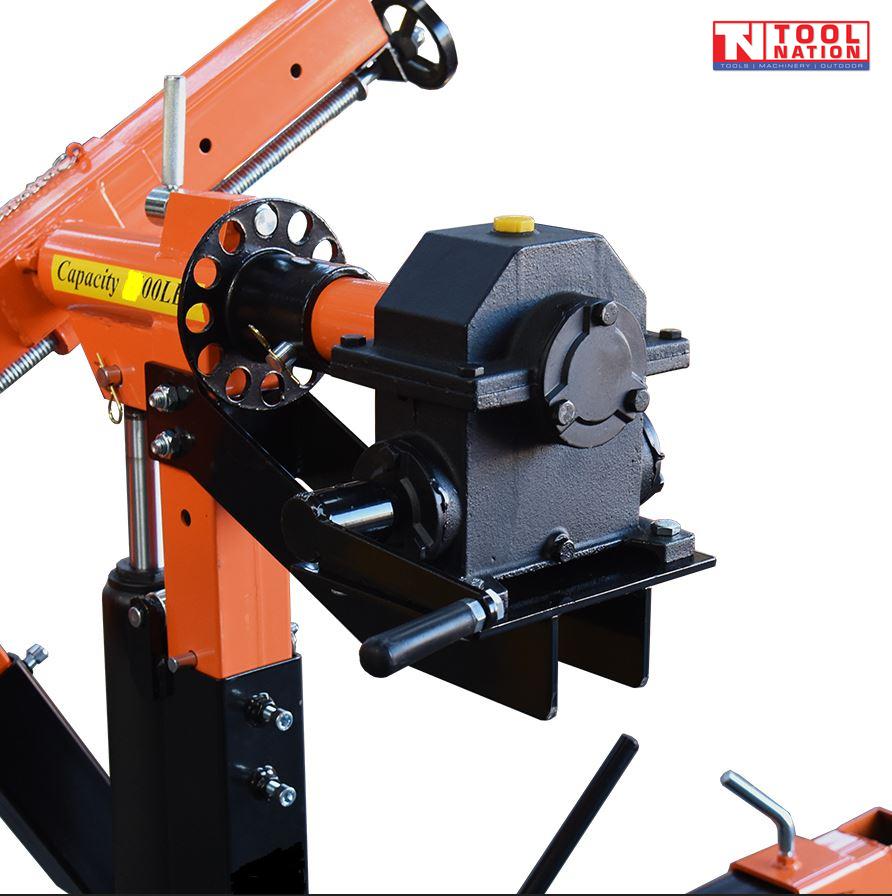

• Gear Driven: Features a gear-driven mechanism for smooth, controlled operation.

• Adjustable Support Arms: Both width and project balance can be adjusted for precise positioning.

• Spring-Loaded Locking Pins: Durable 3mm high tensile steel pins ensure secure and stable positioning.

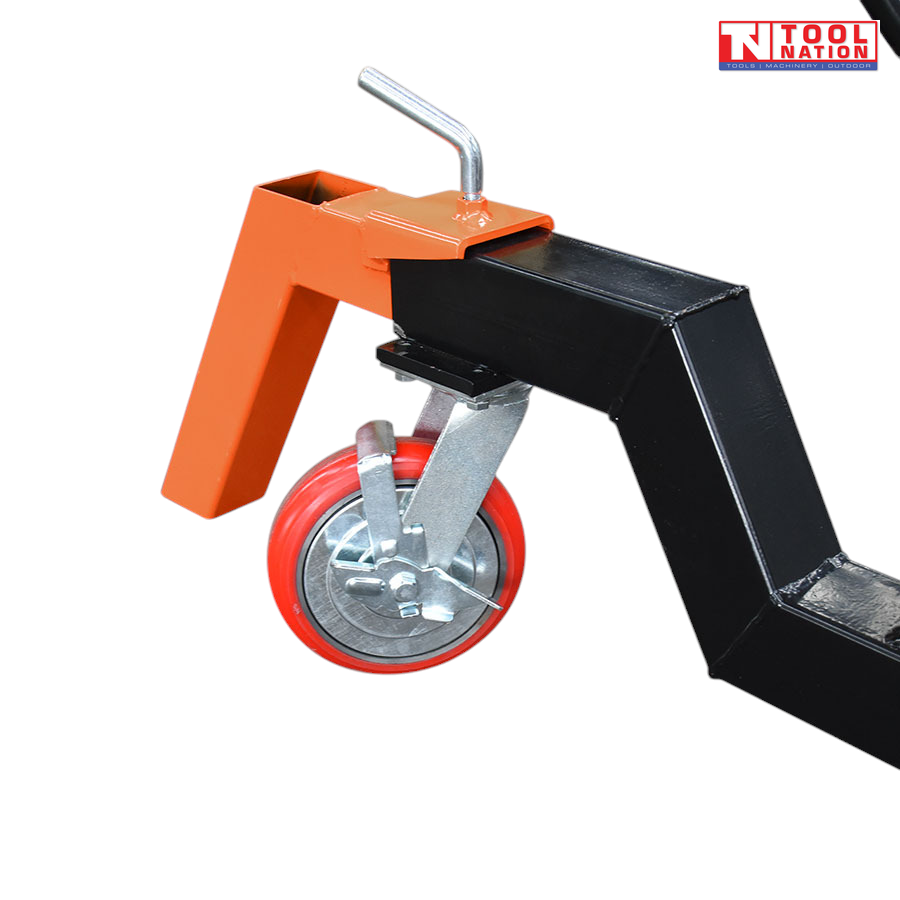

• Heavy-Duty Castors: Easily movable in confined spaces, with locks to secure the unit in place during use.

• Powder-Coated Steel Construction: Highly resistant to rust and corrosion, built for long-lasting use in tough environments.

• Fixed Position Outriggers: Provide additional stability for the rotisserie during operation.

Specifications:

• Maximum Capacity: 1814kg (4000lb)

• Hydraulic Rams: 2x 8000kg hydraulic rams with skiving resistant piston rams

• Lifting Height: Adjustable to 1150mm above bottom rail

• Working Length: Adjustable to over 6000mm

• Working Angle: Fully adjustable 360 degrees

• Gear Driven Mechanism: For smooth operation

• Supporting Arm Width: Adjustable

• Project Balance & Center of Gravity: Both are adjustable for precision positioning

• Construction: Powder-coated steel for enhanced durability

• Outriggers: Fixed position for stability

• Locking Pins: Spring-loaded 3mm high tensile steel

• Packing Dimensions: 154cm x 75cm x 37cm (crate)

• Weight: 260kg

• Assembly: Some assembly required, shipped in a crate to minimize shipping costs
