2 Cylinder Alloy Italian Style Air Compressor Pump

ACBP2065A

AIR COMPRESSOR PUMP 2 Cylinder Alloy Italian Style

Description:

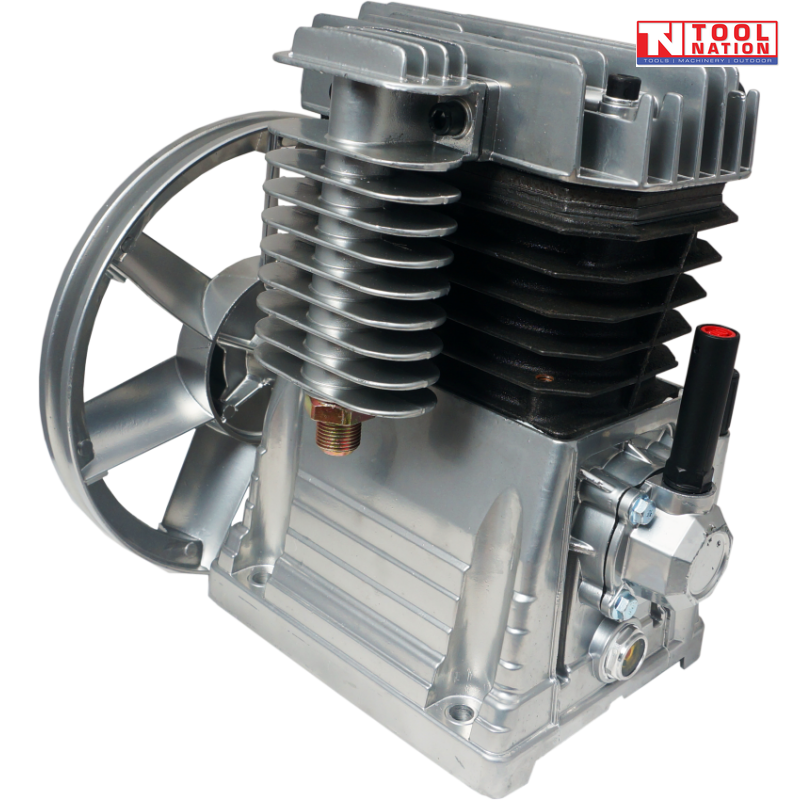

Millers Falls two-cylinder Alloy construction single stage air compressor pump. This pump is most commonly used on 240 volt or petrol driven air compressors and mounted on an air receiver.  The most common motor size used with this pump ranges from 2 to 3 horsepower electric or 5.5-7.5HP Petrol engines. The pump comes complete with intake filters, flywheel and aftercooler to keep air temperature low and reduce condensation.

The Millers Falls Belt Driven Air Compressor pump has a displacement of 250 LPM at 980 RPM. One of the standout features of this model is its comparatively high air output. With 180 Litres per Minute of actual Free Air Delivery (F.A.D.) at 8 BAR this pump can comfortably run most air tools. Suitable for farming, industrial & mechanical use. Alloy pump have long been regarded as superior due to their high heat dissipation and low noise compared to other types of pumps.

Features:

• Two Cylinder Alloy Italian Style Pump

• Aftercooler Fitted as Standard

• Cast Iron Cylinder Liners

• Durable - High quality components & fittings.

Specifications:

Model: ACBP2065A

Recommended Working Pressure: 115 PSI

Recommended RPM: 900-1200

Displacement: 250L/min Max (9cfm) @980 RPM

Power Required: 2250W (3.0HP/2.2kW) Electric

Power Required: 5.5 HP – 6.5 HP Petrol

Air Flow @ 8 Bar: 230L/min

Air Flow @ 4 Bar: 280L/min

Noise: 73dB

Pump: 2 x 65mm Cylinders

Distance Between Bolt Holes: 140 and 155 mm

Flywheel Diameter: 300 mm

Dimensions: 29 x 24 x 33 cm

Package Size: 29.5  x 28 x 37 cm

Weight – G.W = 11.5kg   N.W = 10kg
