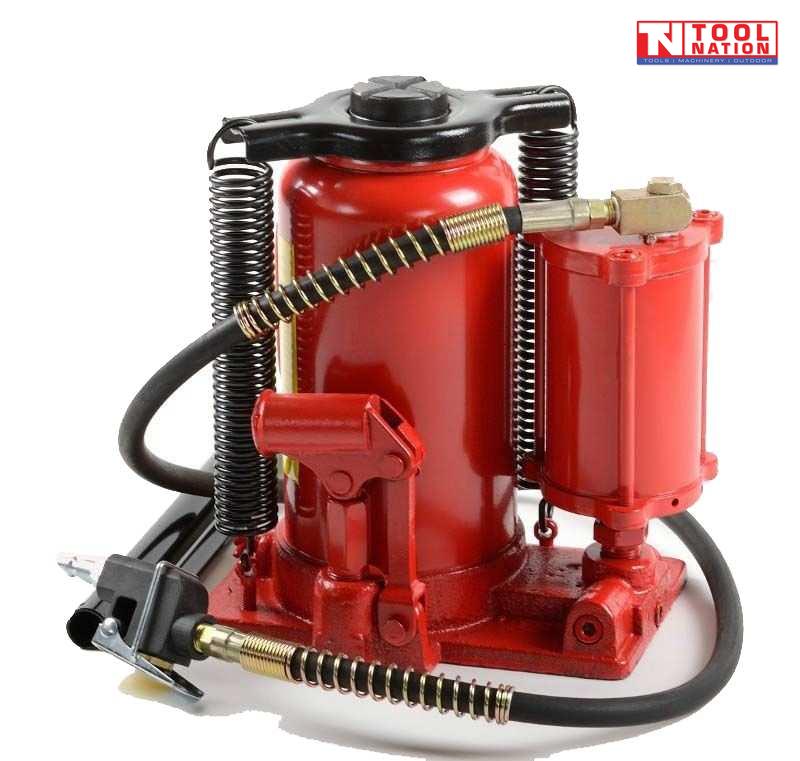

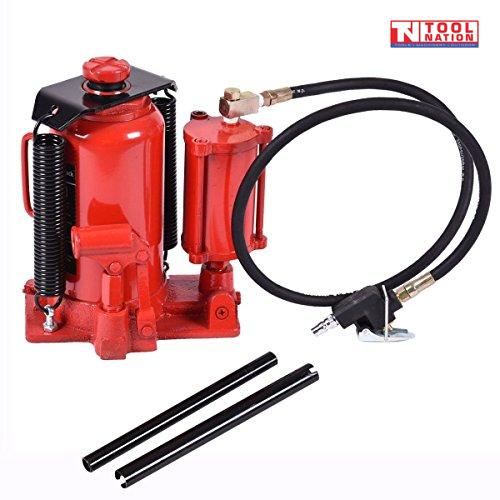

20 Ton Air Hydraulic Bottle Jack

LHJ20

20T Air Hydraulic Jack

Description:

The air hydraulic bottle jack is a robust and powerful tool designed for heavy-duty lifting, capable of handling up to 20 tonnes (44,092 lbs) of weight. With an adjustable height range from 10.2 inches (260 mm) to 20.1 inches (510 mm), it is ideal for a wide variety of lifting tasks, including heavy machinery, trucks, and large vehicles.

A key feature of this jack is its extension screw, which provides an additional lift of up to 3.1 inches (80 mm), allowing for fine height adjustments. This makes it perfect for lifting objects with higher ground clearance or those that require precise positioning during lifting.

For seamless operation, the air hydraulic bottle jack connects to an air compressor via the included hose and 20 PM connector. Once connected, simply press the pneumatic switch to initiate the lift, eliminating the manual effort needed with traditional jacks. This feature significantly enhances efficiency, especially in demanding heavy lifting operations.

The jack is designed with durability in mind, featuring double springs that enable quick and stable resetting, improving overall work efficiency and ensuring fast readiness for subsequent lifts. Its construction includes high-quality welding and seals to prevent oil leakage, ensuring long-lasting performance.

Safety is a priority with a built-in safety valve that prevents overloading, reducing the risk of accidents and ensuring that the jack operates within its rated capacity. The integrated hydraulic cylinder and piston rod design, along with a corrosion-resistant coating, further contribute to the jack's durability.

Portability is another significant advantage. The jack has a compact design and includes a built-in handle for easy carrying and transport. To maintain its functionality, it is best to store the jack in a clean, dry environment, away from excessive heat and corrosive substances.

Regular maintenance is essential to keep the jack performing optimally. Ensure it is periodically lubricated with the appropriate hydraulic fluid to maintain smooth operation and extend its service life.

Features:

• 20-Tonne Capacity: Lifts up to 20 tonnes (20,000 kg), making it suitable for the most demanding heavy-duty tasks.

• Adjustable Height: Lifting range of 260 mm to 510 mm, with an 80 mm extension screw for precise adjustments.

• Effortless Operation: Connects to an air compressor with a pneumatic switch for easy lifting.

• Leakage-Proof: High-quality welding and seals prevent oil leakage for reliable performance.

• Safety Features: Built-in safety valve to prevent overloading, ensuring secure lifting operations.

• Durable & Portable: Corrosion-resistant coating, compact design, and built-in handle for easy transport.

This 20-tonne air hydraulic bottle jack is designed to make heavy lifting simpler, safer, and more efficient, combining exceptional strength, ease of use, and portability into one powerful tool.

Specifications:

Model: LHJ20

Capacity: 20,000 kg

Min Height: 260 mm

Max Height: 510 mm

Adjustable Height: 80 mm

Lifting Height: 170 mm

Package Dimensions: 28 x 21 x 30 cm (CTN)

Weight: 16 kg
