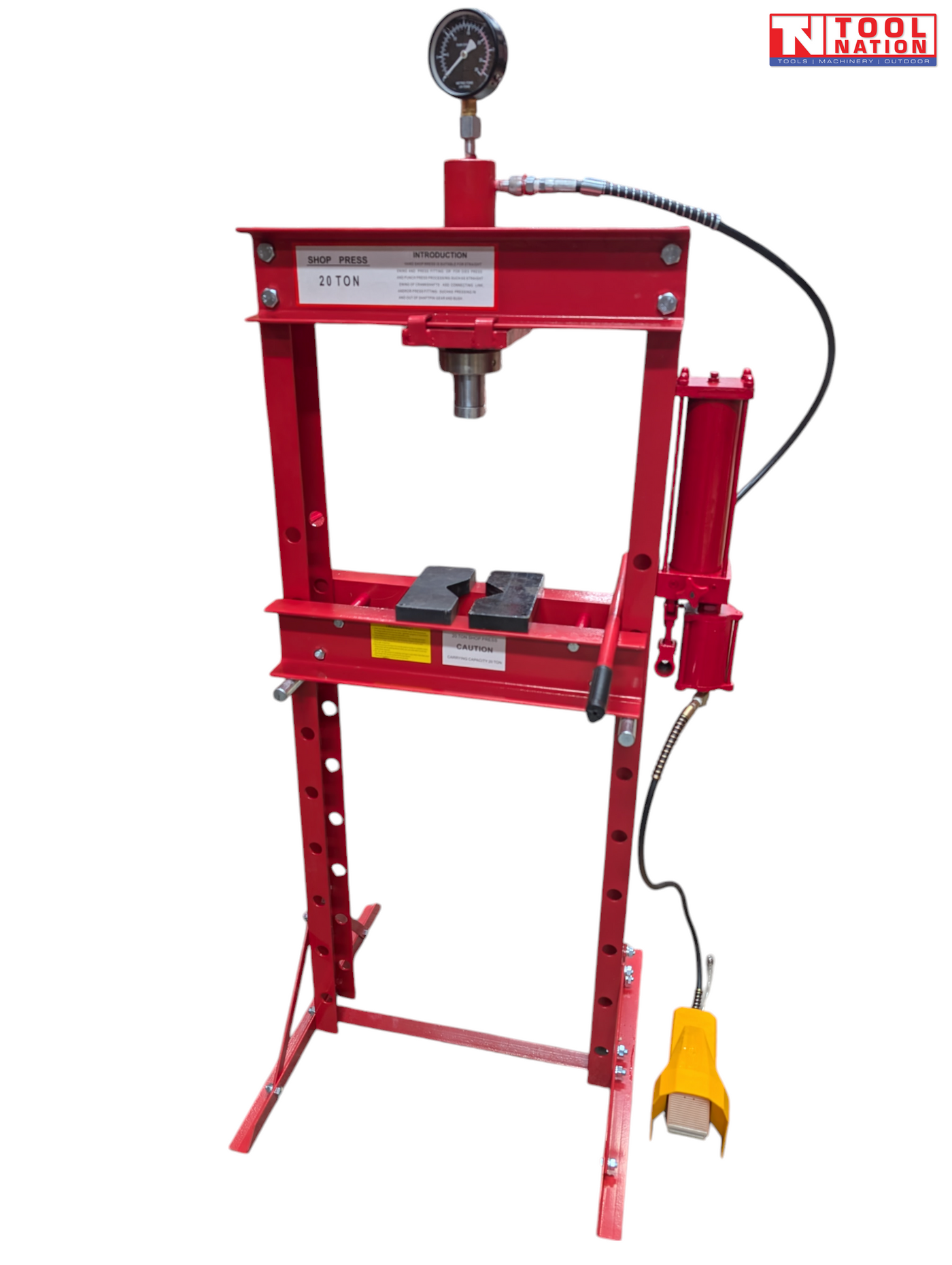

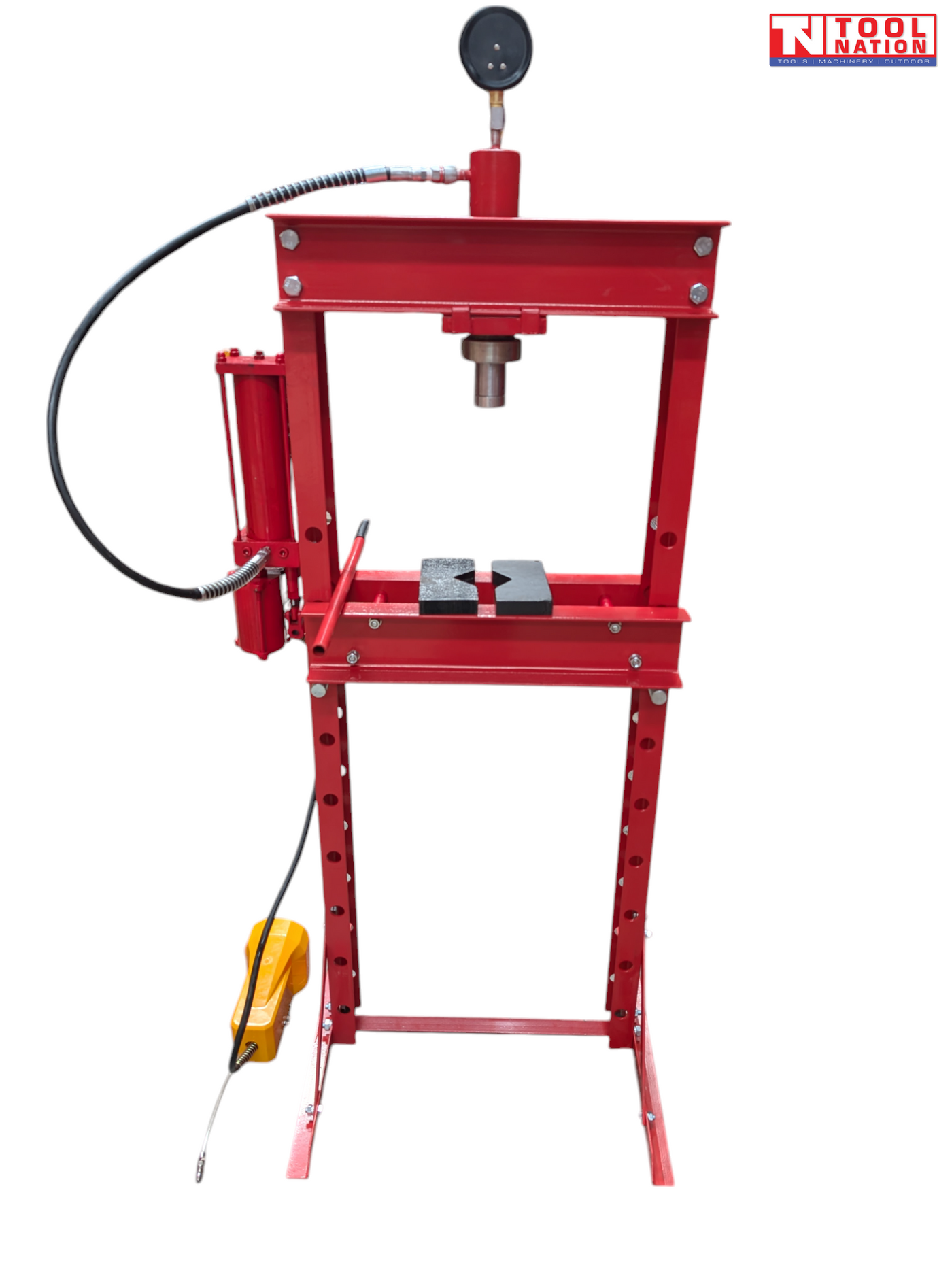

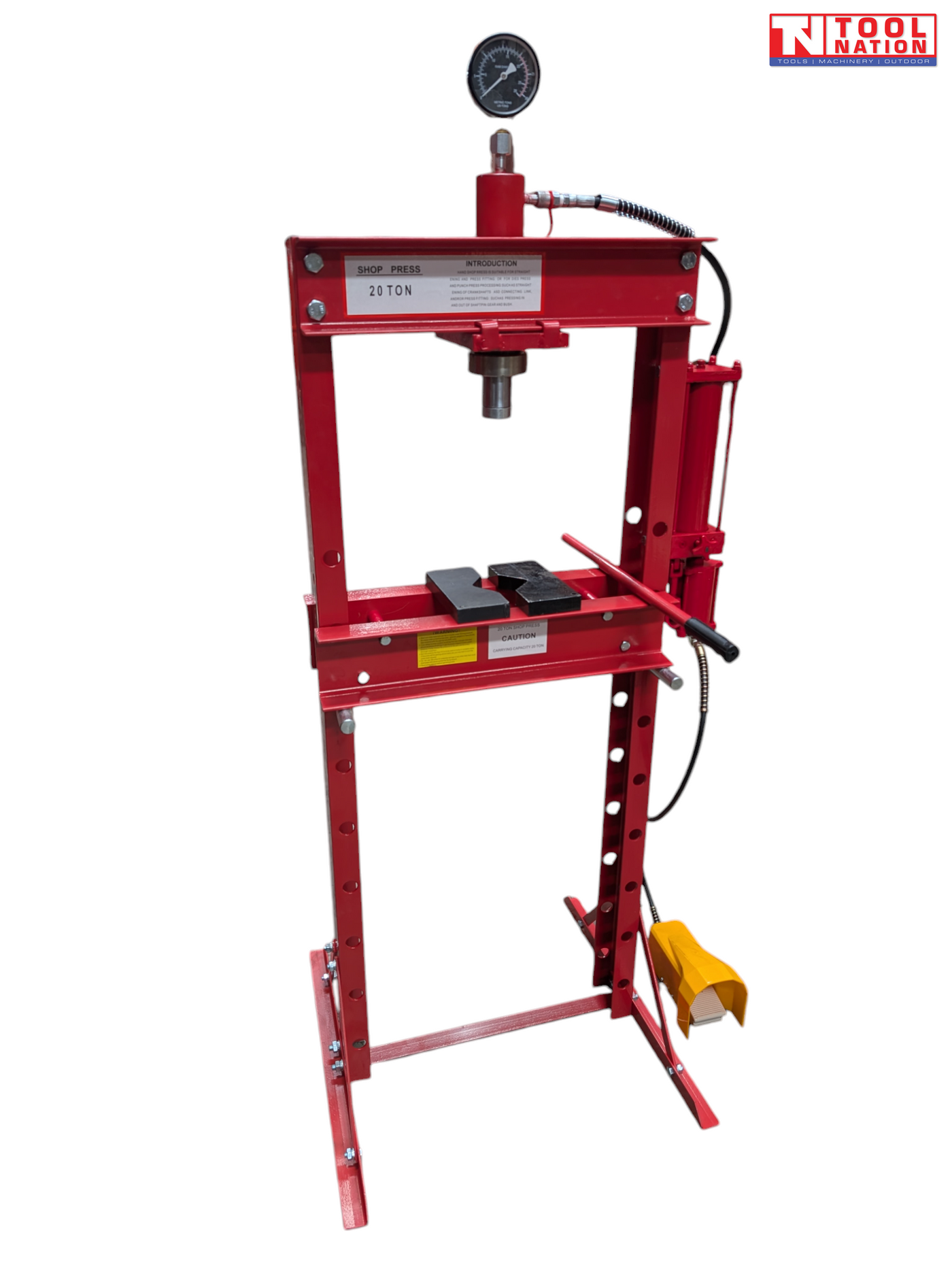

20 Ton Air Hydraulic Shop Press with Sliding Head

PRESALR20T

The PRESALR20T 20 Ton Air Hydraulic Shop Press is designed for professionals and DIY enthusiasts alike, offering unparalleled performance for a wide range of pressing tasks. With a 20,000kg (20-ton) capacity, this heavy-duty press is perfect for handling tough tasks such as removing and replacing bearings, bushes, ball joints, and other metalworking tasks with ease and precision. Whether you are a mechanic, metal worker, or enthusiast, this press will dramatically reduce the time and effort required to perform demanding jobs.

One of the standout features of the PRESALR20T is its dual operation modes: air hydraulic and manual. The air hydraulic operation offers the speed and force required for high-output tasks, while the manual operation provides more control and precision for smaller, more delicate jobs. This flexibility makes the press suitable for a variety of workpieces and operations, giving you the power to choose the best method for the job at hand.

With a pressing capacity of 20,000kg, the PRESALR20T can tackle even the most stubborn or tight-fitting components. It is designed with a sliding head to facilitate smooth and easy adjustments, allowing precise positioning during operation. This ensures that materials are aligned correctly, especially for tasks like bearing and bushing removal, where accuracy is critical.

The foot-operated valve is another convenient feature, enabling hands-free operation. This lets you keep both hands on the workpiece, improving safety and efficiency. The adjustable cross member allows you to configure the press for maximum comfort and ease of use, ensuring that each job is done with minimal strain.

Whether you're working in a professional shop or a home workshop, the PRESALR20T offers the power, flexibility, and ease of use to get the job done quickly and efficiently.

Features:

• Lifting Capacity: 20,000kg (20 tons), ideal for handling tough, heavy-duty pressing tasks.

• Dual Operation: Offers both air hydraulic and manual operation for versatile use.

• Working Range: Adjustable from 0mm to 970mm, allowing for a wide range of workpieces.

• Sliding Head: Provides smooth adjustments and precise positioning of materials.

• Air Pressure: Operates at 0.75 – 0.85 Mpa, compatible with most industrial air sources.

• Air Inlet Fitting: ¼ inch NPT for easy connection to air supply.

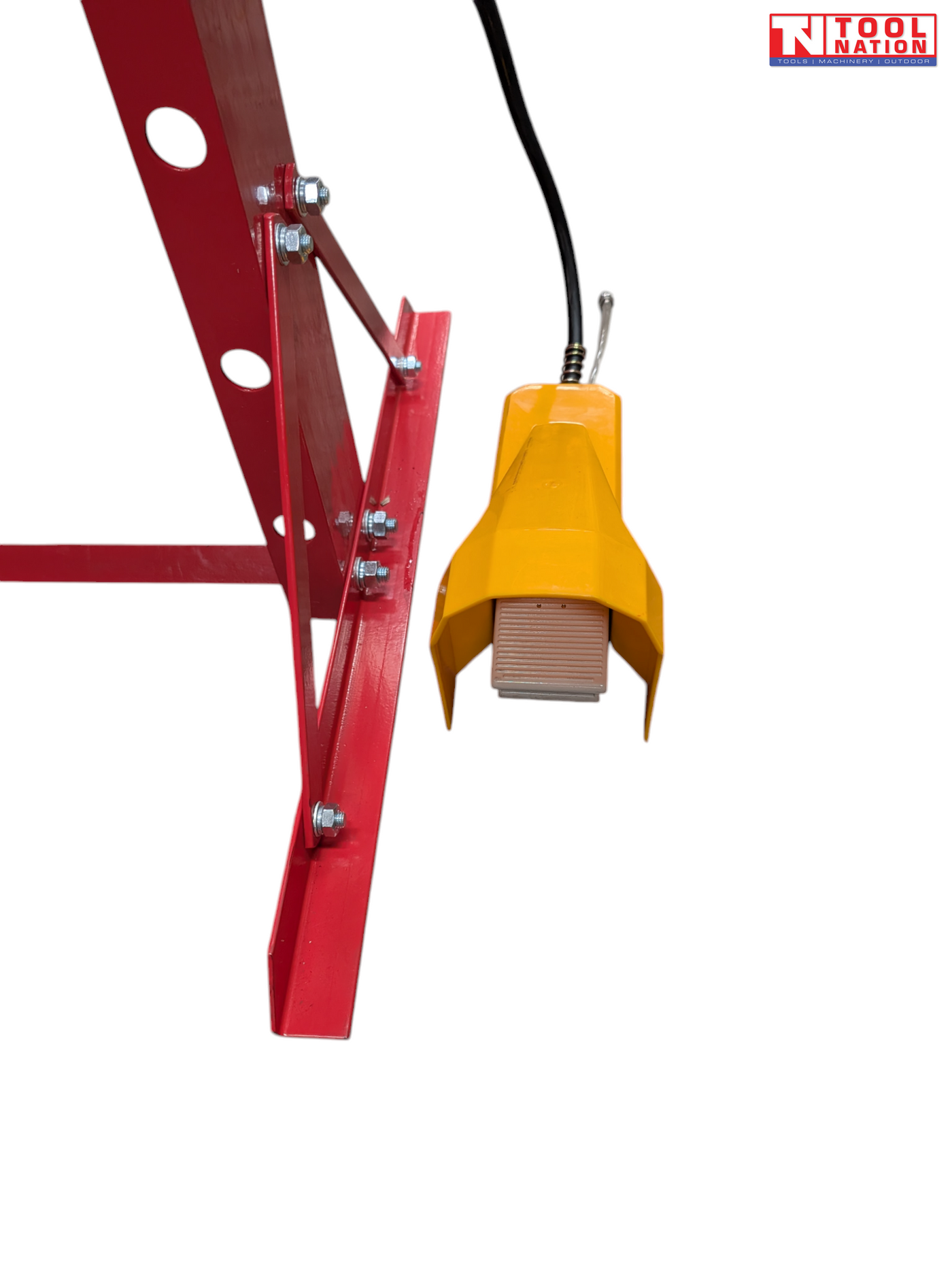

• Foot Valve: Enables hands-free operation, increasing safety and productivity.

• Adjustable Cross Member: Provides flexibility for setup, ensuring comfort and efficiency.

Specifications:

• Capacity: 20,000kg (20 tons)

• Working Range: 0mm – 970mm

• Stroke: Adjustable, depending on task requirements

• Air Pressure: 0.75 – 0.85 Mpa

• Air Inlet Fitting: ¼ inch NPT

• Shipping Dimensions: 165cm x 33cm x 21cm

• Net Weight: 89.5kg

• Shipping Weight: 92.6kg
