2000kg Pallet Stacker 1600mm Lift Height

WH7617

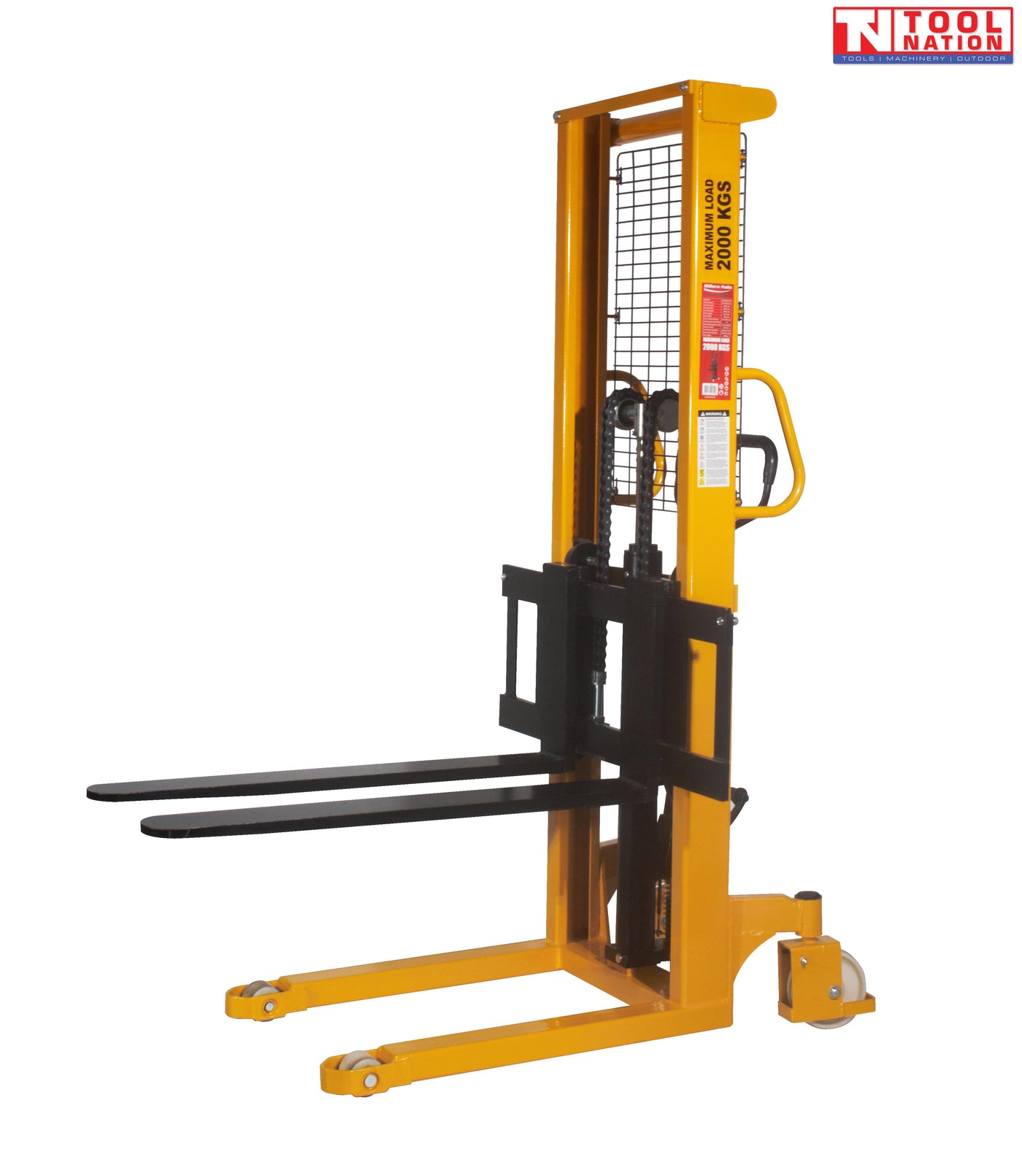

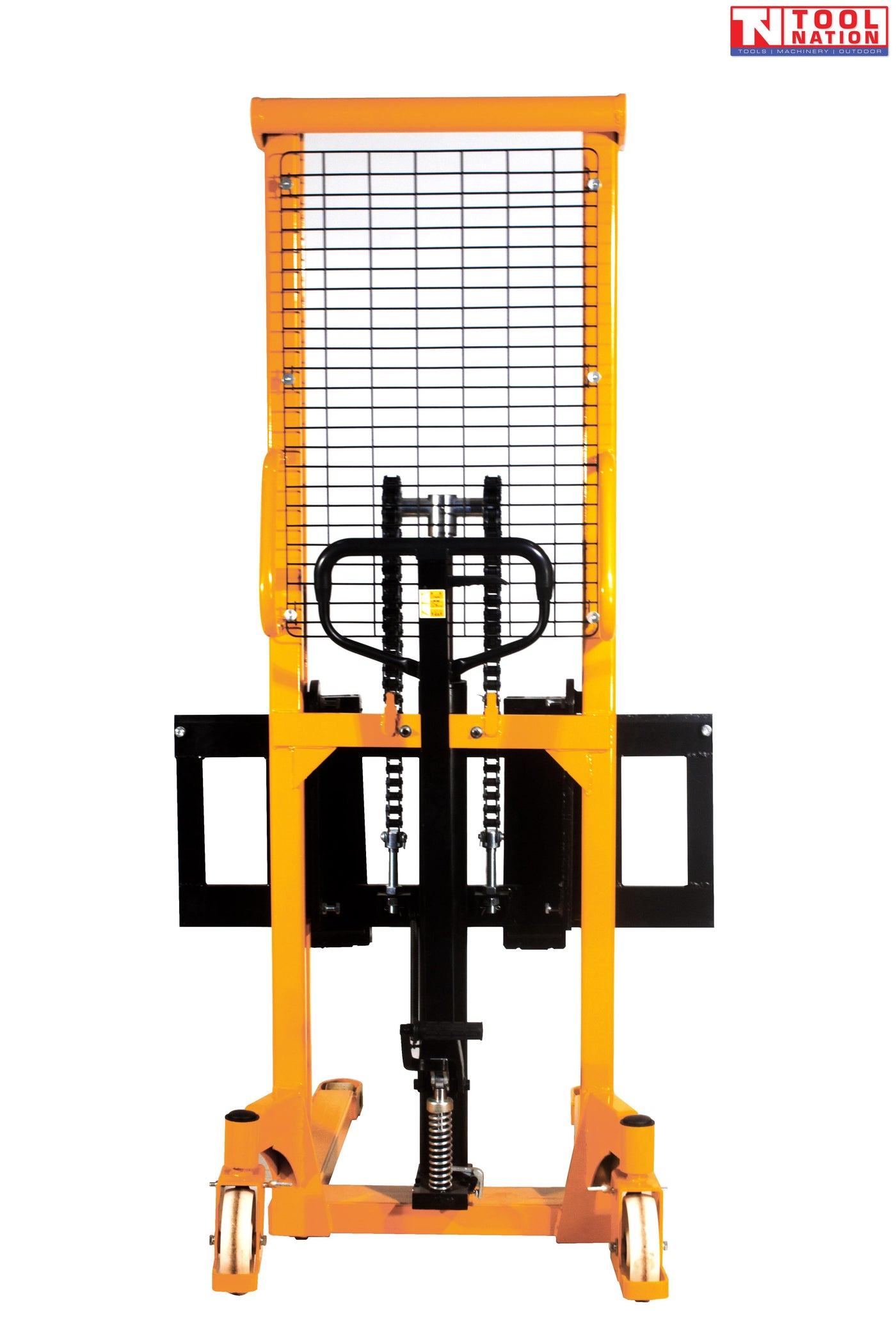

2000kg Pallet Stacker

The WH7617 Pallet Stacker is a heavy-duty lifting solution designed to handle larger loads up to 2000kg. With an adjustable lifting height range from 90mm to 1600mm, this stacker is perfect for a variety of tasks in warehouses or industrial settings. Its durable steel construction and reliable hydraulic system ensure longevity and optimal performance. This model is particularly suitable for businesses that need a stacker with higher capacity and greater versatility.

Features:

• Capacity: 2000kg

• Lifting Height: 90mm - 1600mm

• Overall Length: 1620mm

• Overall Width: 1000mm

• Overall Height: 2020mm

• Fork Length: 1100mm

• Fork Width: 120mm

• Fork Outside Distance: 240mm - 950mm

• Lifting Speed: ≥15mm/time

• Descending Speed: Controllable

• Center of Load: 500mm

• Front Wheel Diameter: Φ80 60mm

• Rear Wheel Diameter: Φ180 50mm

• Self Weight: 255kg

• Suitable for use on flat surfaces only

• Hydraulic Oil: ISO VG32, 3.0L capacity

Specifications:

• Model: WH7617

• Capacity: 2000kg

• Lifting Height: 90mm - 1600mm

• Fork Length: 1100mm

• Fork Width: 120mm

• Fork Outside Distance: 240mm - 950mm

• Lifting Speed: ≥15mm/time

• Overall Dimensions: 1620 x 1000 x 2020mm

• Front Wheel Diameter: Φ80 60mm

• Rear Wheel Diameter: Φ180 50mm

• Self Weight: 255kg
