2040kg Hydraulic Gear Driven Car Restoration Rotisserie with 360 Degree Rotation

RR4500GB

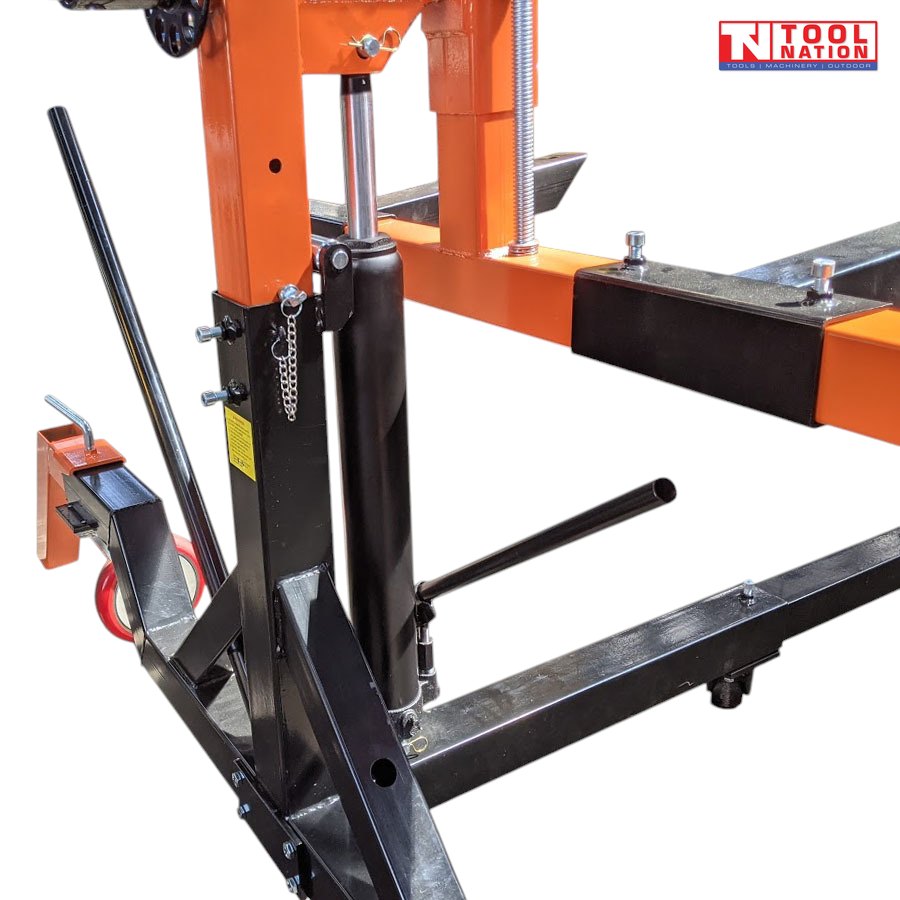

The RR4500GB 2040kg (4500lb) Hydraulic Gear Driven Car Restoration Rotisserie is an essential tool for your workshop or garage when restoring car bodies, chassis, or even boat hulls. With twin 8-ton hydraulic rams, this rotisserie provides precise control for lifting the supporting arms up to 1150mm above the bottom rail, ensuring you have full access to your restoration project.

This rotisserie boasts a fully adjustable design with powder-coated steel construction for enhanced rust and corrosion resistance. It is built to be highly reliable, solid, and versatile, offering the flexibility to adjust the working length to over 6 meters, customize the supporting arm width, and fine-tune the project balance and center of gravity. The 360-degree rotation feature optimizes the angle of your project, making it easier to access hard-to-reach areas.

Spring-loaded locking pins made from durable 3mm high tensile steel secure the unit in position, while heavy-duty castors allow for easy movement and storage when space is limited. The RR4500GB is designed for performance and convenience in any restoration project.

The RR4500GB Hydraulic Gear Driven Car Restoration Rotisserie offers unmatched versatility and precision for large-scale restoration projects. With its durable construction, customizable features, and ease of use, it is the perfect tool for professionals and enthusiasts working on vehicle or boat restoration.

Features:

• Heavy-Duty Capacity: Lifting capacity of 2040kg (4500lb) with twin 8-ton hydraulic rams for heavy-duty lifting.

• Adjustable Height: Lifting arms adjustable up to 1150mm above the bottom rail for maximum accessibility.

• Customizable Length: Working length adjustable to over 6 meters, offering flexibility for various projects.

• 360-Degree Rotation: Full rotation of the project for optimal positioning and ease of access.

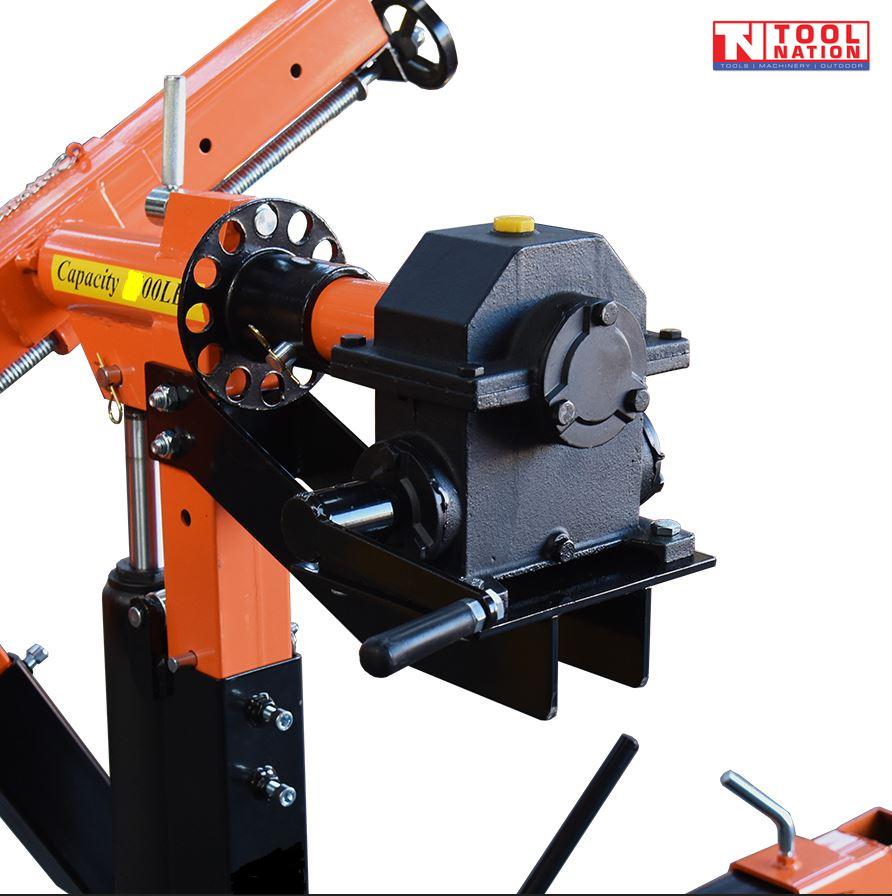

• Gear Driven: Features a gear-driven mechanism for smooth, controlled operation.

• Adjustable Support Arms: The width, balance, and center of gravity are adjustable for precise control and positioning.

• Spring-Loaded Locking Pins: Durable 3mm high tensile steel pins ensure secure positioning.

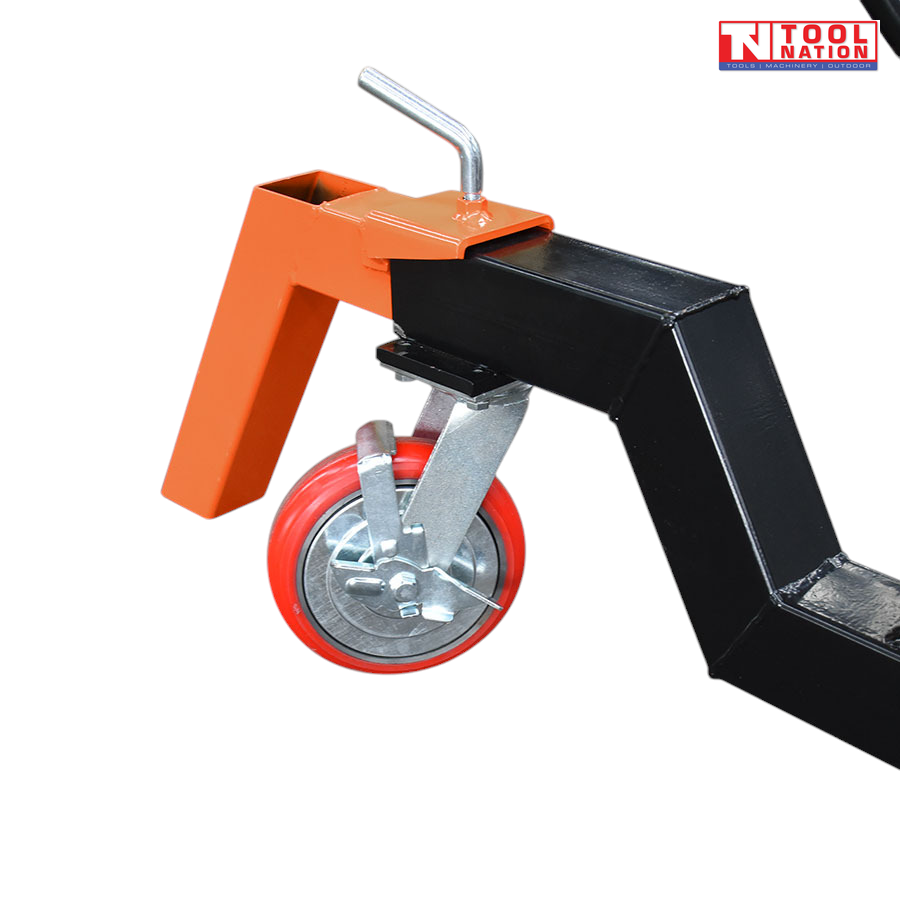

• Heavy-Duty Castors: Easy to move and lock into position for stability during use.

• Powder-Coated Steel Construction: Ensures durability and resistance to rust and corrosion.

• Fixed Position Outriggers: Provide added stability during operation.

Specifications:

• Maximum Capacity: 2040kg (4500lb)

• Hydraulic Rams: 2x 8000kg hydraulic rams with skiving-resistant piston rams

• Lifting Height: Adjustable to 1150mm above the bottom rail

• Working Length: Adjustable to over 6000mm

• Working Angle: Fully adjustable 360 degrees

• Gear Driven Mechanism: For smooth operation and control

• Supporting Arm Width: Adjustable

• Project Balance & Center of Gravity: Adjustable for precise positioning

• Construction: Powder-coated steel for long-lasting durability

• Outriggers: Fixed position for additional stability

• Locking Pins: Spring-loaded 3mm high tensile steel

• Packing Dimensions: 154cm x 75cm x 37cm (crate)

• Weight: 268kg

• Assembly: Some assembly required, shipped in a crate to minimize shipping costs
