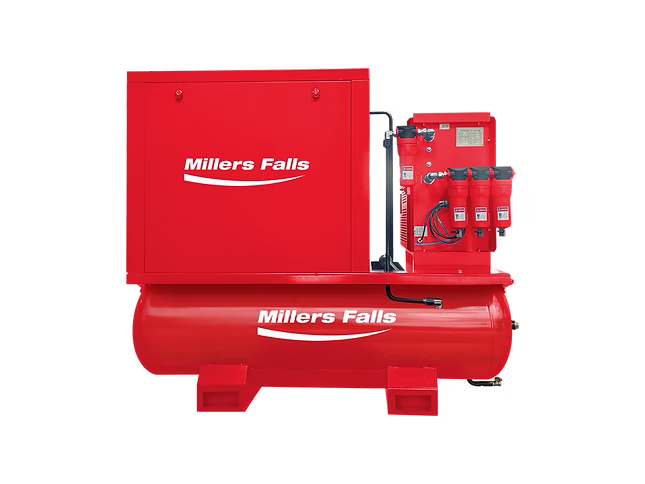

20HP Rotary Air Screw Compressor Package 10 Bar 74 CFM with 500L Tank Dryer and Filters
ACSE20500DF-10
Screw Compressor Package 20HP 10 Bar 145PSI 74CFM with 500L Tank Dryer and Filters
Description:
Screw compressors provide significant advantages over piston compressors, including quieter operation, cooler running temperatures, a consistent airflow supply, and the ability to operate at a 100% duty cycle. They are also more energy-efficient, as they reduce the stop-start current loads typically associated with traditional piston models.
Millers Falls offers an impressive range of air-cooled rotary screw compressors, with motor power options ranging from 2.2 to 15 kW and operating pressures of 8 to 10 bar. This range features high-performing air ends designed to enhance reliability and longevity, complemented by quality valves and separators. The use of permanent magnet electric motors contributes to these compressors achieving high technological standards and energy efficiency.
A standout model, the ACSE20500DF-10, is a single-stage, air-cooled, oil-injected rotary screw air compressor. The fully packaged compressor includes the air end, drive motor, air and oil systems, filters, oil cooler, cooling fan, and electro-pneumatic regulating control. This fully packaged unit also comes complete with a 500 Litre receiver, Refrigerated Dryer, pre filters to protect the dryer and post filters with water separator to protect downstream tools and machinery.
It is engineered for continuous duty, allowing it to deliver full output without compromising its lifespan.
The ACSE20500DF-10 is built for high performance, efficiency, and reliability, making it suitable for diverse applications including: workshops and tyre fitters, industrial manufacturing, panel beaters, maintenance operations and automotive dealerships. Its super-quiet design makes it versatile for installation in numerous settings, the included air receiver, mounted Refrigerated Dryer, pre filters and post filters with water separator provide a ready to work complete package applicable to virtually any requirement.
As a 20HP rotary screw air compressor, the ACSE20500DF-10 boasts 74 CFM Variable Speed Drive capabilities, positioning it as a top choice for light industrial applications. This model is not only capable of delivering more pressurised air than lighter models but also operates cooler and quieter due to its enclosed cabinet.
Powered by a 415V three phase high efficiency motor, the ACSE20500DF-10 is ideal for indoor and workshop environments. It features a permanent magnet motor that enhances energy savings and is particularly effective for situations where compressed air demand varies significantly. Its robust screw compressor technology enables durability and supports a continuous 100% duty cycle. The permanent magnet energy variable speed system offers superior energy efficiency compared to standard variable speed motors and conventional start-stop non-variable speed motors.
Designed for ease of transport, the ACSE20500DF-10 can be moved with a forklift and has a compact footprint.
Ideal for small businesses or home workshops, the ACSE20500DF-10 delivers impressive airflow with class-leading free air delivery performance and operates at pressures of up to 10 Bar - 145 PSI. It offers flexibility by providing full power for demanding tasks while also accommodating lower output needs for smaller jobs, ensuring efficient use of energy.
Overall, the Millers Falls ACSE20500DF-10 rotary screw compressor epitomises world-class efficiency with its high-quality components and enclosed cabinet unit design, lowering maintenance costs and ensuring superior reliability, making it an excellent choice across various industries for small to medium-sized enterprises.
Features:
- Air Receiver included
- Refrigerated Dryer Included
- Pre and Post Filters with Auto Drains Included
- Quiet, Efficient, Powerful, Reliable and Affordable.
- Advanced control system allowing easy monitoring, diagnostics, and adjustment of compressor settings
- Permanent Magnet Variable Frequency Screw Compressor
- Fast Storage, Fast Flow Supply
- Suitable For High Temperature and Continuous Work
- High Efficiency VSD Motor Low Power Consumption
- Long Working Life
- Supports Low Voltage Start
- Low Maintenance Cost
- Enclosed Cabinet Low noise 63 db
- Low Vibration
Specifications:
Power Supply: 415V 50Hz
Motor Speed: 2920 rpm
Drive Type: Direct Drive Coupled
Free Air Delivery: 74 CFM / 2100 LPM
Maximum Working Pressure: 145 PSI (10 Bar)
Working Temperature: 0-45 C
Electric Motor: 15kw 20 HP Permanent Magnet High Efficiency Motor
Air Receiver: 500 Litre
Refrigerated Dryer Voltage: 240 Volt
Noise Level: 63dB at 7 metres
Air Outlet: G 1/2 threaded female
Net Weight: 600kg
Dimensions: 195 x 70 x 165 cm
Shipping Weight: 670 kg
Shipping Dimensions: 216 x 80 x 180 cm
