23.7 kVA Parallel Connected Twin Inverter Generator Package

GSC23700TWIN

23.7kVa Parallel Connected Twin Generator Package

Superior Quality – Unprecedented Functionality – Exceptional Value

Paralleling is connecting two identical inverter generators to each other via a dedicated parallel kit. This allows the combining of power outputs of each generator into one outlet.

Paralleling generators is best suited when one generator does not produce enough power to run more demanding equipment such as a large air conditioners, workshop equipment, large welders even entire households. It can sometimes be a better choice than buying a larger single generator.

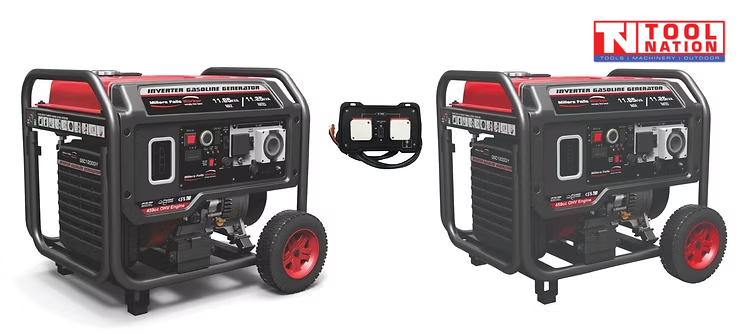

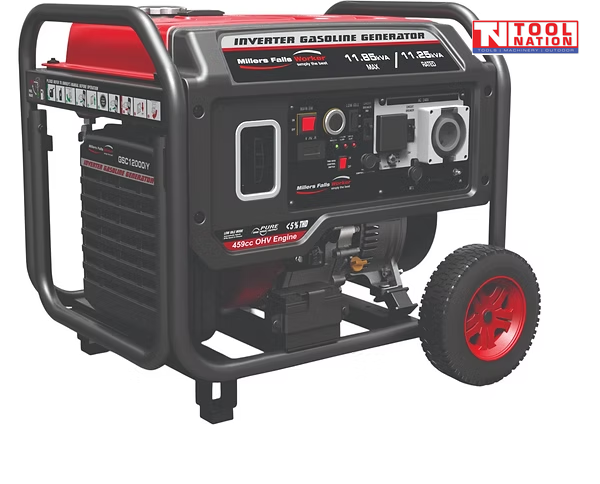

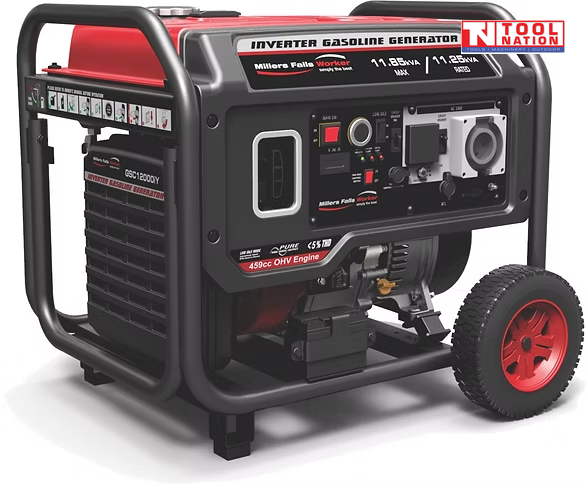

The GSC23700TWIN incorporates two GSC12000iY generators and a Parallel Connector producing

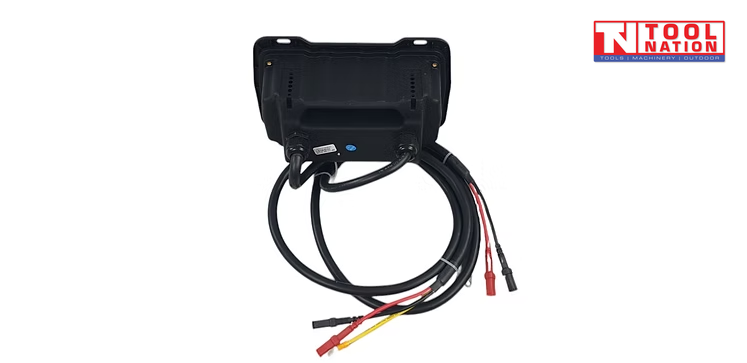

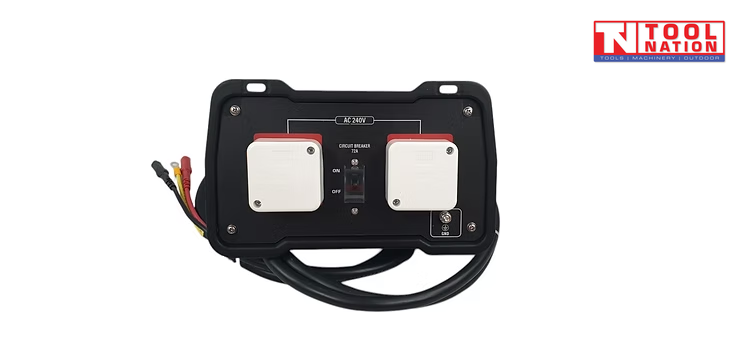

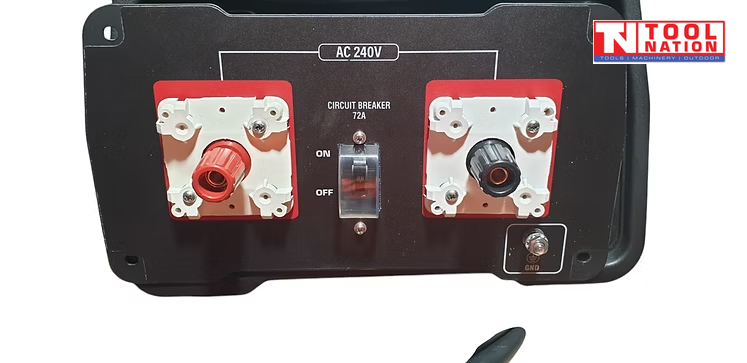

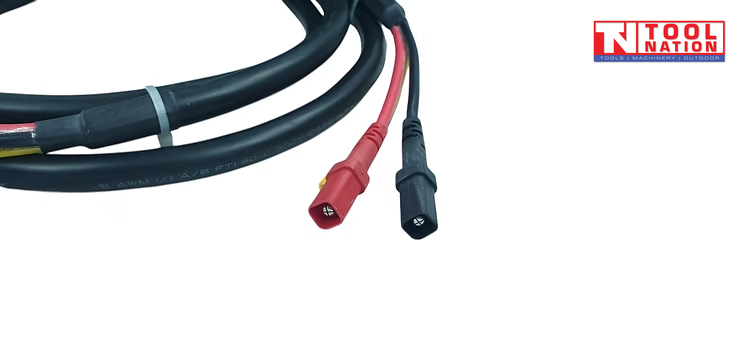

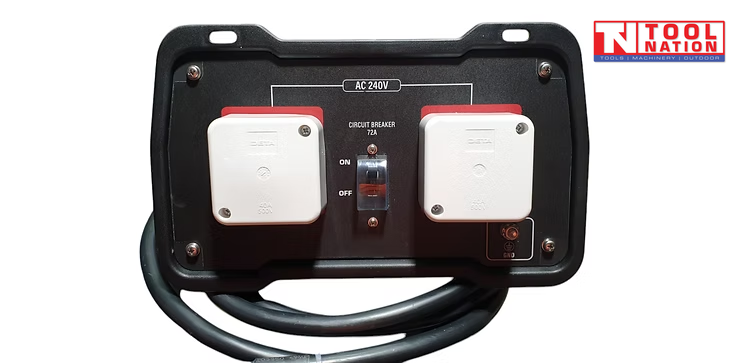

and impressive 19kw - 23.7 kVa of peak power. Due to the high current output (up to 70 amps) there is no socket supplied with the connector, rather it is designed to be direct wired to the load or fuse board.

Note: THE WIRING OF THE CONNECTOR MUST ONLY BE PERFORMED BY A LICENSED ELECTRICIAN.

The Parallel kit cannot be used with traditional non inverter generators.

This unit is suitable for Millers Falls Inverter Generators models: GSC7500i-B, GSC8500iY, GSC12000iY.

This parallel connector can handle current ranges up to 70 Amps.
