23 kVA Heavy Duty Parallel Connector for Inverter Generators
Estimate only. Final freight options are confirmed in checkout.

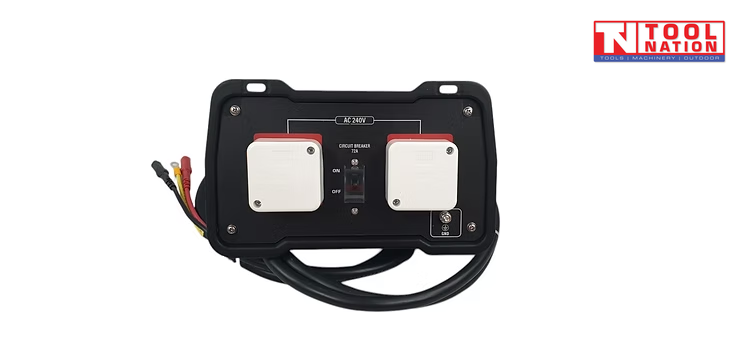

GSCP20kW 23kVa Heavy Duty Parallel Connector
Paralleling is connecting two inverter generators to each other via a dedicated parallel kit. This allows the combining of power outputs of each generator into one outlet.
Paralleling generators is best suited when one generator does not produce enough power to run more demanding equipment such as a large air conditioners, workshop equipment, large welders even entire households. It can sometimes be a better choice than buying a larger single generator.
The GSCP20kW is used to combine two identical sized inverter generators together. Due to the high current output (up to 70 amps) there is no socket supplied with the connector, rather it is designed to be direct wired to the load or fuse board.
The Parallel kit cannot be used with traditional non inverter generators.
This kit is suitable for Millers Falls Inverter Generators models: GSC7500i-B, GSC8500iY, GSC12000iY.
This parallel connector can handle current ranges up to 70 Amps.
Note: THE WIRING OF THE CONNECTOR MUST ONLY BE PERFORMED BY A LICENSED ELECTRICIAN.
FEATURES:
• Digital Inverter Technology
• J Box Protected Connections
• Parallel Connectivity
• 72 Amp Circuit Breaker
