24 Inch Semi Automatic Wheel Balancer

VP8271WBA

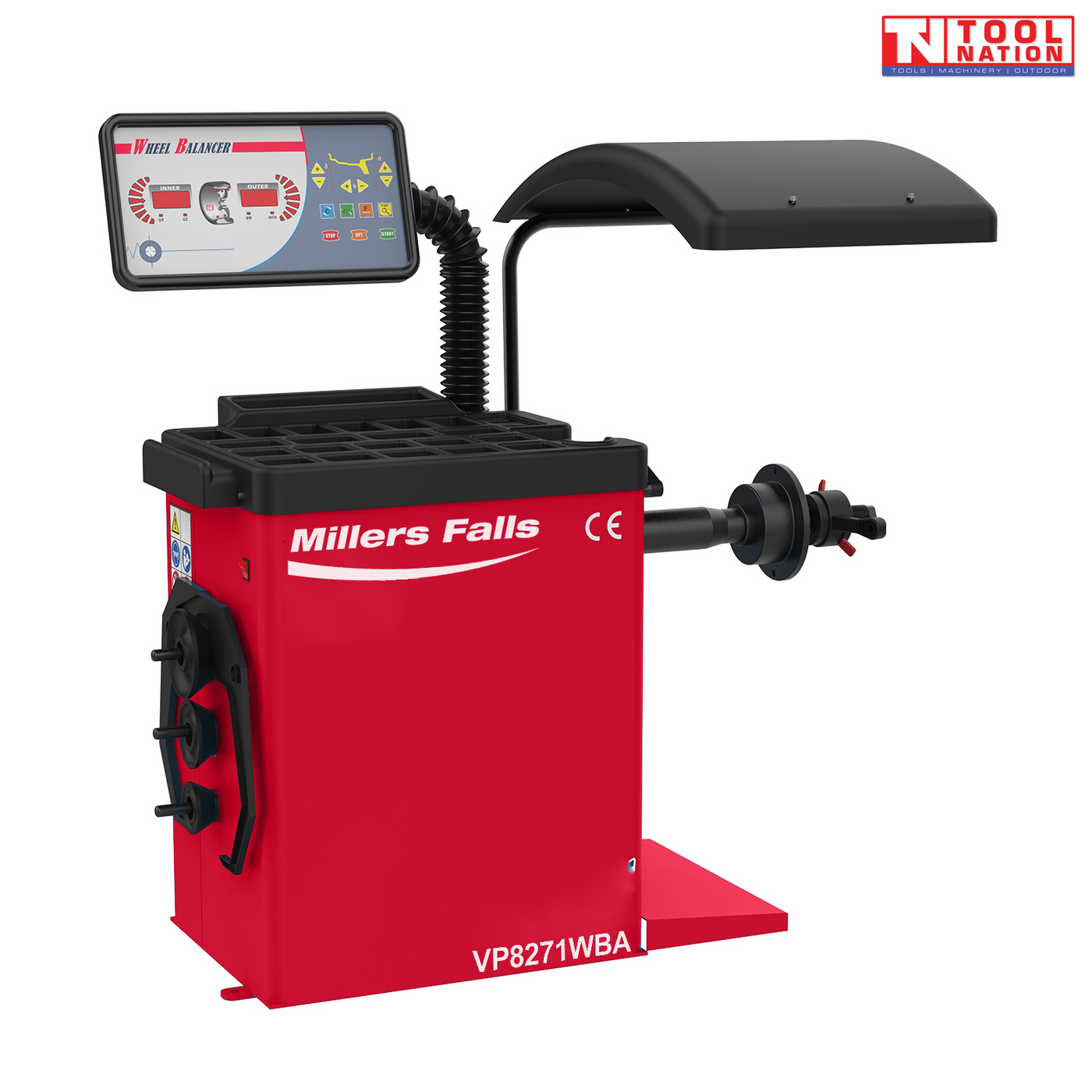

Millers Falls Semi-Automatic Wheel Balancer 24” Capacity

The VP8271WBA Wheel Balancer is a cost effective and efficient balancer suitable for a wide range of automotive wheels. The convenient LED display control panel is equipped with buttons for data input and machine function operations with the easy-to-read LED’s displaying all machine and measurement parameters.

The balancer incorporates a 36mm balance shaft with quick release nut, the 4 pegs on the side of the unit offer convenient storage of the supplied cones. The VP8271WBA balancer includes all measurement modes including Dynamic Balance and Static Balance, 3 Alu Balance and customised OPT function.

Millers Falls Wheel Balancers combine strength with a delicate touch for your expensive wheels making them reliable in even the most demanding workshop environments.

Features:

• Electronic microprocessor-controlled wheel balancer for balancing car, motorcycle and light industrial vehicle wheels.

• Balancer includes all measurement modes including Dynamic Balance and Static Balance, 3 Alu Balance and customised OPT function.

• Integrated conspicuous LED touch panel display.

• Manual distance and diameter data entry.

• Automatic braking of the wheel after measurement.

• Wheel locking with Quick Fit nut.

• Self-calibration and self-diagnosis programs.

• Wheel dimensions shown in inches or millimeters.

• Indication of unbalance in grams or ounces.

• Alu programs and motorcycle program.

• Optimization mode for rim/tyre matching.

• 4 pegs for convenient storage of cones.

• Integrated wheel distance measurement gauge.

Specifications:

• Model: VP8271WBA

• Rim Diameter: 10"- 24"

• Rim Width: 1.5" - 16"

• Max. Wheel Weight: 60kg

• Max. Wheel Diameter: 1000mm

• Balancing Accuracy: ± 1g

• Rotation Speed: 200rpm

• Measuring Time: 8 Sec

• Motor Power: 250W

• Noise Level: 70dbA

• Power Supply: 240V 50Hz 1Ph

• Gross Weight: 115kg

• Packing Dimensions: 980mm x 720mm x 1090mm
