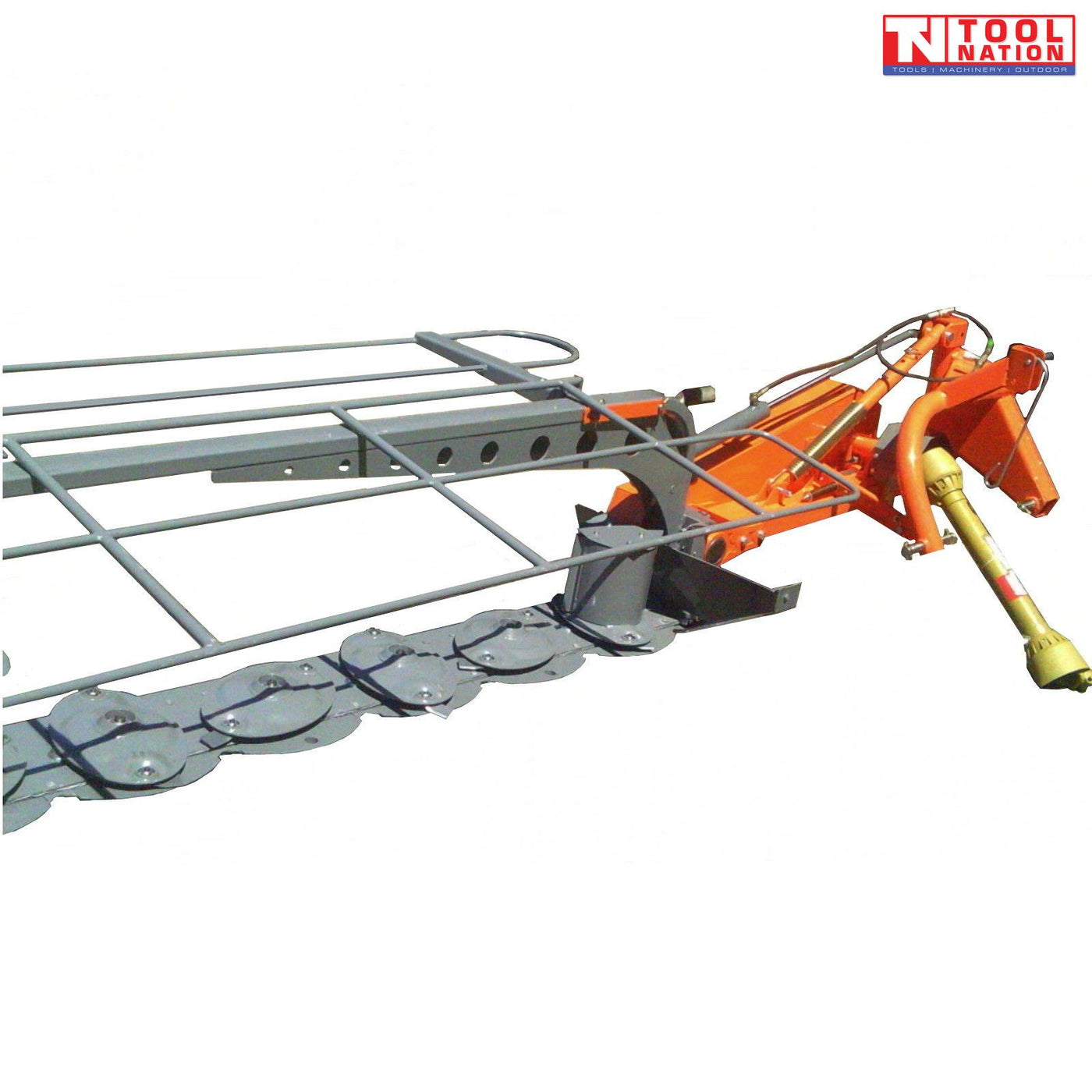

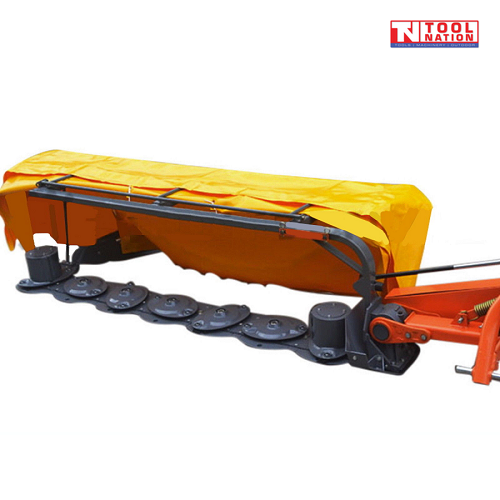

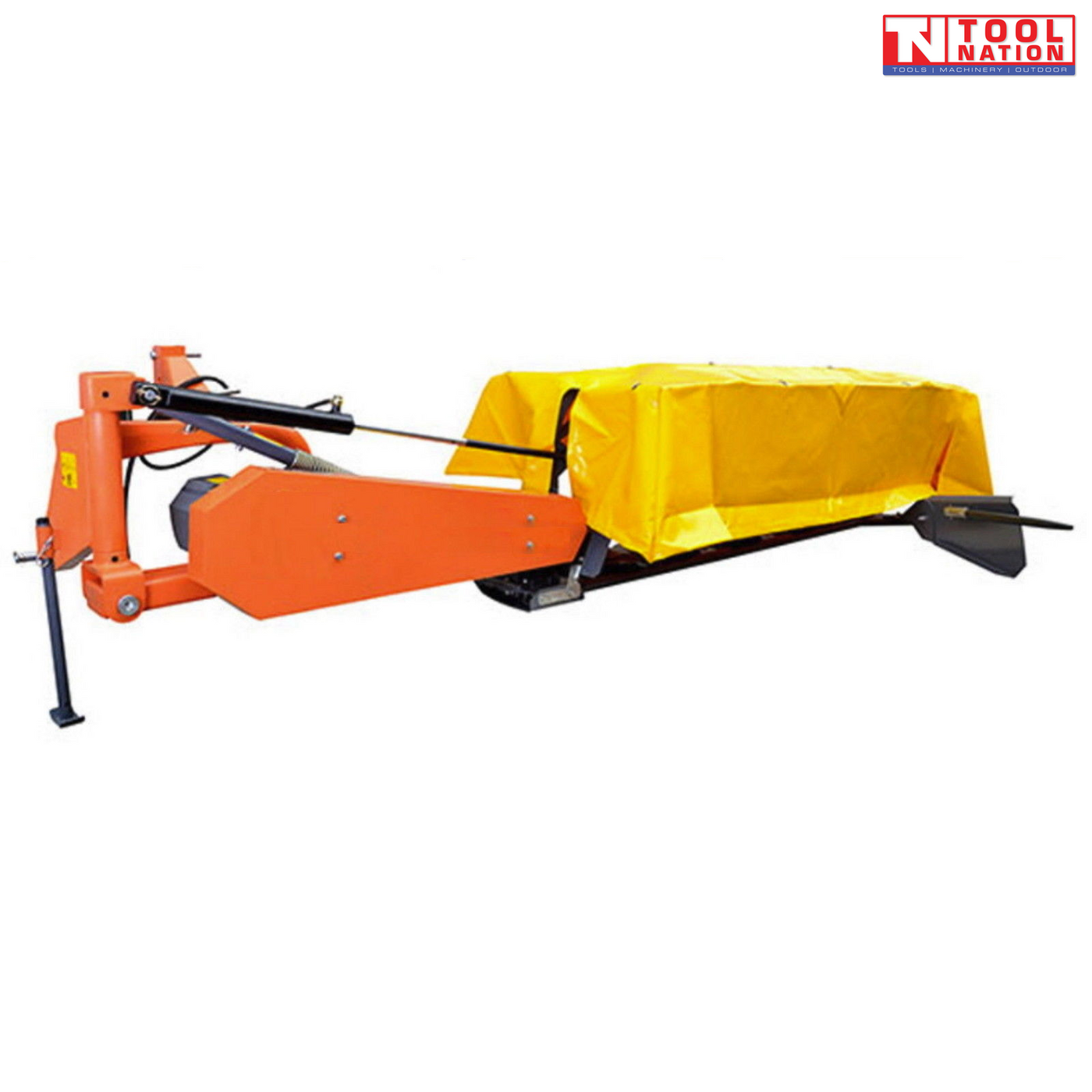

2400mm Disc Mower 6 Disc 3-Point Linkage 45HP
FIDM250
Disc Mower 2400mm 6 Discs Three Point Linkage Connection
With its 6 cutting discs featuring 2 blades on each disc and a cutting width of 2400mm this mower makes short work of hay crops in any condition; even wet, laid down and thick hay.
Mower features rock guards, skid shoes, adjustable flotation springs to control cutter bar ground pressure and a spring-loaded breakaway latch designed to protect the cutter bar.
The powder coated finish will protect and extend the life of your disc mower. This is a well-designed, well-constructed, reliable and durable piece of equipment.
A hydraulic lift moves the cutter head from working to the transport positions and back again quickly and effortlessly.
Features include:
Six Oval Cutting discs with Two High-quality, reversible blades on each disc.
An articulation joint that allows mowers to operate above and below horizontal
Rock guards and skid shoes to protect discs and carry the cutter bar over uneven ground.
An enclosed gear-driven cutter bar that provides years of reliable service
A 540-rpm PTO driveline with overrunning clutch to protect the tractor driveline
Adjustable flotation springs for changing cutter bar ground pressure
A spring-loaded breakaway latch that protects the cutter bar
A single-acting hydraulic cylinder that easily lifts the cutter bar after each pass
3-point hitch mounting.
Product Specifications:
Working width: 2400mm
3-Point likage: CAT1 & 2
Number of mowing discs: 6
Number of mowing blades: 12
Number of drums: 2
PTO speed: 540 rpm
HP: 45
Weight: 530 kg
Shipping Dimension: 565kgs, 277x75x90 cm crate
