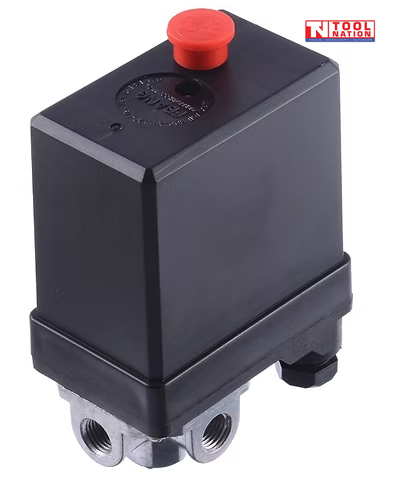

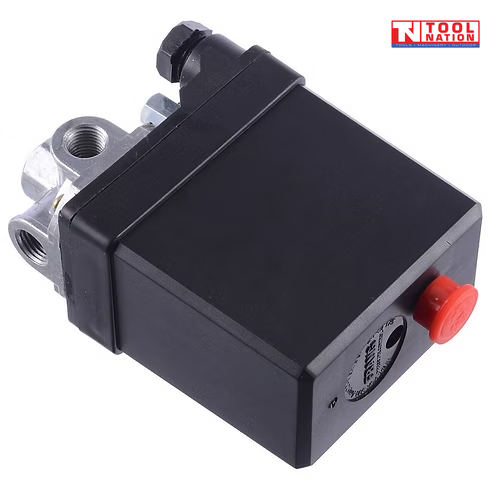

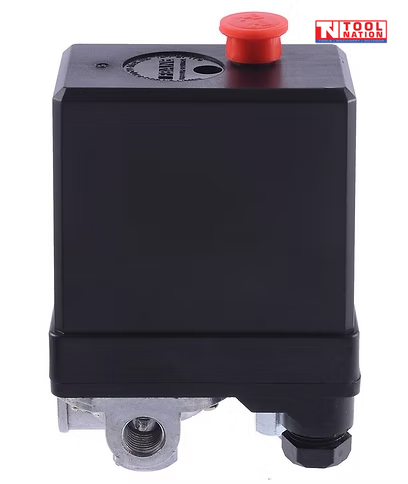

240V 4 Port Air Compressor Pressure Switch

ACS3

AIR COMPRESSOR PRESSURE SWITCH 4 PORT 240 Volt

Description:

The Millers Falls single four pressure switch is a durable and versatile option for most air compressors. It features adjustable cut in and cut out pressure settings, making it customizable to meet specific needs. The thicker plastic cover ensures durability and longevity, while the large heavy contacts are designed to last.

The quality alloy casting of the air connections adds to its overall durability. The ACS3 pressure switch is a pressure-operated electric switch that regulates tank pressure on electrically driven air compressors. It offers additional features such as an unloader valve to prevent starting under load and an On-Off button for manual control. The four-port manifold style option allows for easy mounting of valves and gauges. Overall, this pressure switch is a high-quality and reliable option for air compressor applications.

Features:

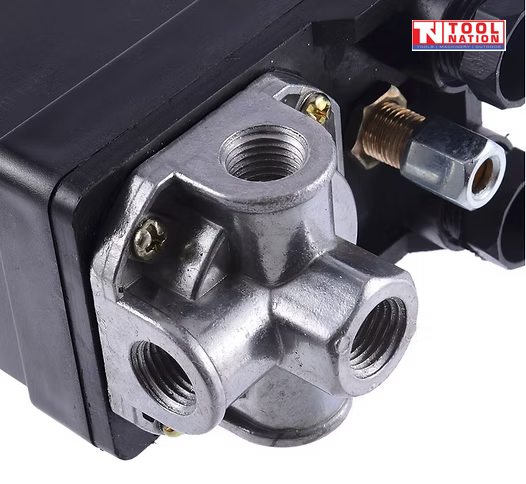

• 3 x 1/4″ bsp female inlet port
• Unloader 1/4″ copper or nylon
• Pressure range 45-175psi
• Differential (non Adjustable) 45psi
• Factory setting 85-115psi
• Contact Arrangement Normally Closed
• Auto load/unload
• ON/OFF switch knob
• Copper connector
• Easy to install and convenient to use
• Durable - High quality components & fittings.

Specifications:

Model: ACS3

Maximum Pressure: 175 PSI

Maximum Voltage: 240V

Current: 16A

Dimension (L x W x H): Approx. 82 x 52 x 135 mm

Weight: 200 grams
