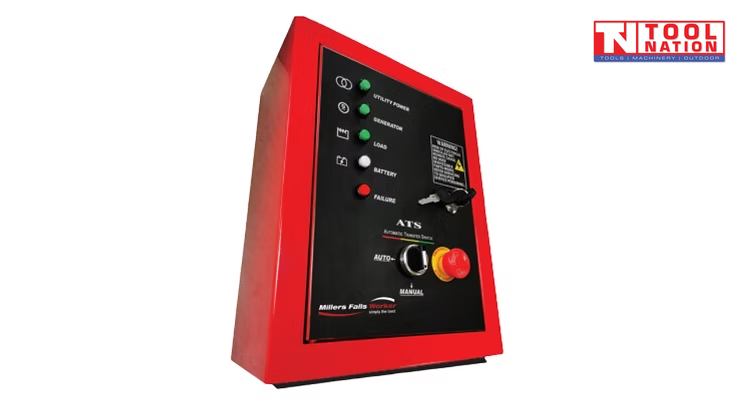

240V Auto Transfer Switch 30 Amp to 50 Amp
Estimate only. Final freight options are confirmed in checkout.
Superior Quality – Unprecedented Functionality – Exceptional Value
The ATS function gives our generators greater versatility, the switch can be wired direct to the house or workshop
mains power fuse box. In Automatic mode the switch will automatically start the generator if mains power fails for
whatever reason. Once the generator is up to full speed and generating voltage at 50Hz the switch will feed the power
into the required load point. Once mains power is restored the ATS will transfer load from the generator back to
mains power then shut down the generator. This same function can also be performed in manual mode if required.
THE WIRING OF THE ATS MUST ONLY BE PERFORMED BY A LICENSED ELECTRICIAN.
The solenoid operating mechanism of the ATS ensures a high-speed transfer of loads between alternate sources of power, regardless of current draw.
This ATS can handle current ranges from 30-50 Amps.
FEATURES:
• ATS Auto Transfer Switch
• Automatic & Manual Function
• Mains Power Indicator
• Generator Power Indicator
• Load Indicator
• Battery Voltage Indicator
• Failure Light
• Lockable Cabinet
• Single Phase 240V
• Dimensions: 25cm x 14cm x 32cm
