240V Auto Transfer Switch for 8 Pin Diesel Generators

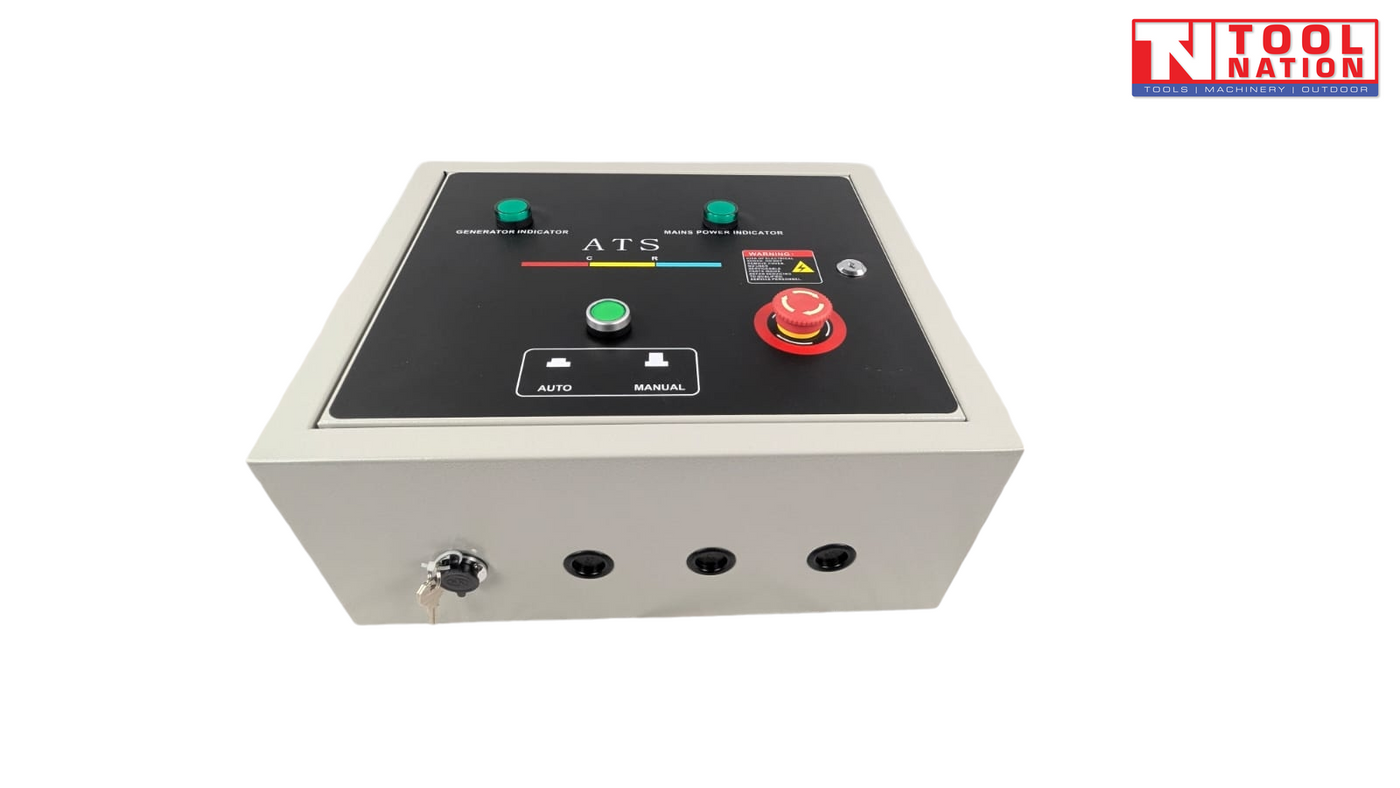

GSATS240-D2 Auto Transfer Switch 240V

Suits 8 Pin Diesel

The ATS function gives our generators greater versatility, the switch can be wired direct to the house or workshop mains power fuse box. In Automatic mode the switch will automatically start the generator if mains power fails for whatever reason. Once the generator is up to full speed and generating voltage at 50Hz the switch will feed the power into the required load point.

Once mains power is restored the ATS will transfer load from the generator back to mains power then shut down the generator. This same function can also be performed in manual mode if required.

THE WIRING OF THE ATS MUST ONLY BE PERFORMED

BY A LICENSED ELECTRICIAN.

The solenoid operating mechanism of the ATS ensures a high-speed transfer

of loads between alternate sources of power, regardless of current draw.

This ATS can handle current ranges from 30-50 Amps.

FEATURES:

• ATS Auto Transfer Switch

• Automatic & Manual Function

• 8 Pin Connector Cable Included

• Mains Power Indicator

• Generator Power Indicator

• Load Indicator

• Battery Voltage Indicator

• Failure Light

• Lockable Cabinet

• Single Phase 240V

• Dimensions: 45cm x 40cm x 20cm

• Weight: 12.5kg
