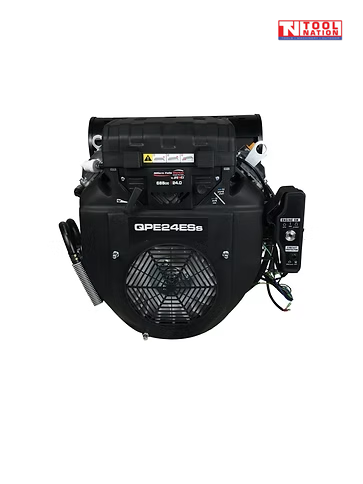

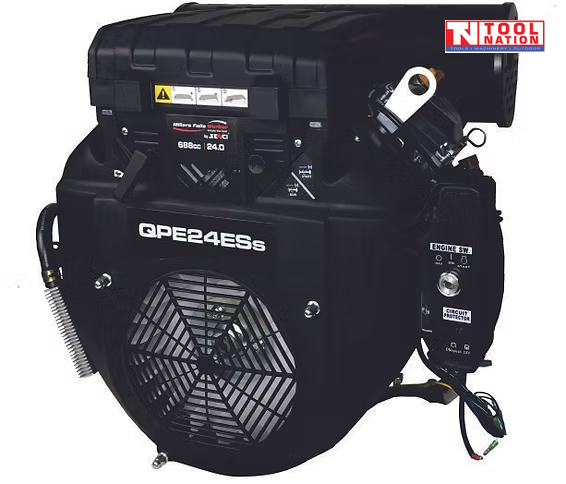

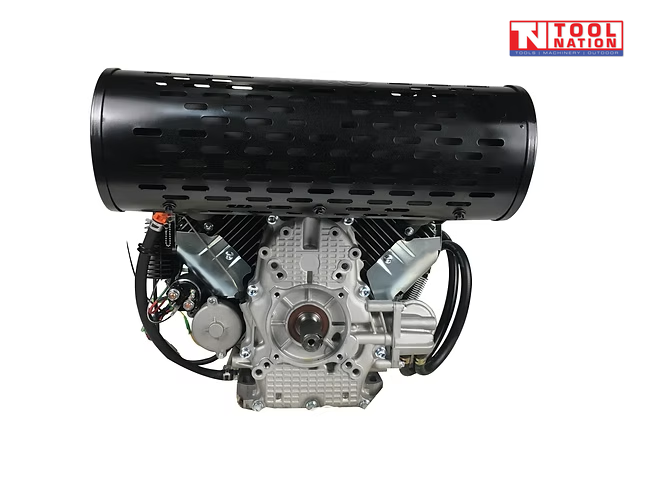

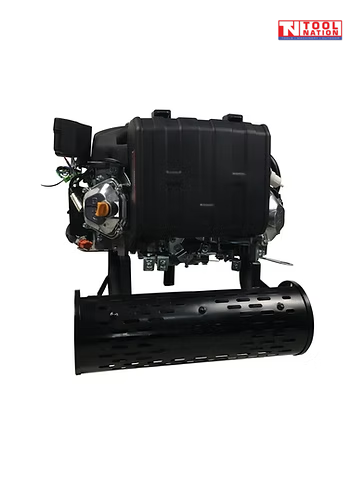

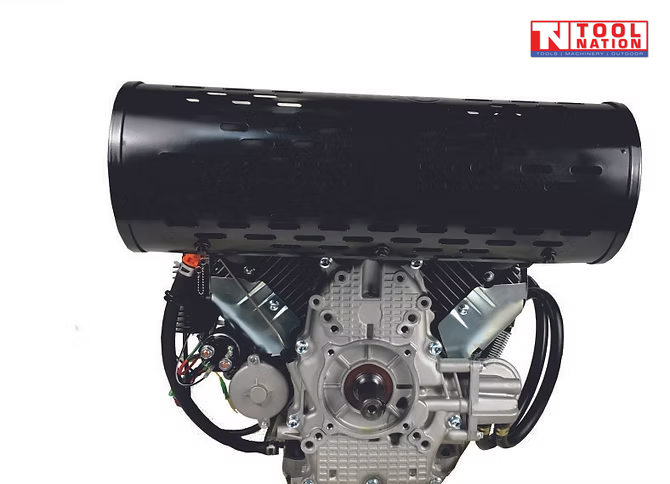

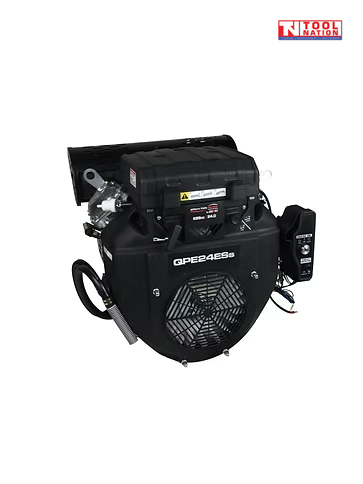

24HP V Twin Petrol Engine 688cc Electric Start 25mm Shaft

QPE24ES

Millers Falls 24HP 688CC V-TWIN PETROL ENGINE 1" SHAFT HORIZONTAL ELECTRIC START

The Millers Falls TWM QPE24ES 24HP 688cc V-Twin Electric Start Petrol Engine is a must-have if one of your petrol-driven machines is showing signs of reduced efficiency. This 24HP V-Twin Petrol Engine delivers exceptional quality and performance at an outstanding value.

Lightweight and designed for versatility, it is suitable for a wide range of applications including generators, pumps, pressure washers, air compressors, log splitters, or any other machinery requiring an engine of this size.

The QPE24ES features a standard 25.4mm (1") horizontal shaft, and its overhead valve (OHV) design allows the engine to operate at lower temperatures while maintaining strong power, fuel efficiency, and long-lasting durability. This ensures easy maintenance and reliable operation across all applications.

The transistor ignition system provides easy starting and stable performance for efficient, economical running. Its Low Oil Alert System automatically shuts down the engine when oil levels are low, providing critical protection. Cast iron cylinder sleeves, metal cams, and a forged crankshaft further enhance internal lubrication, wear resistance, and overall service life.

Features:

• Brand: Millers Falls
• Model: QPE24ES
• Type: 24HP Petrol Engine
• Engine Type: Air-cooled, 4-stroke, V-Twin (horizontal shaft)
• Displacement: 688cc
• Low Oil Level Cut-Out Switch: Fitted
• Bore & Stroke: 78 × 72 mm
• Compression Ratio: 8.5:1
• Ignition System: Transistorised Magneto

Specifications:

• Maximum Power Output: 24 HP / 2500 rpm
• Maximum Torque: 42 Nm / 2500 rpm
• Start Mode: Electric Start (Key)
• Shaft Diameter: 1" (25.4 mm) threaded with keyway
• Shaft Length: 89 mm
• Net Dimensions: 455 mm (L) × 400 mm (W) × 450 mm (H)
• Net Weight: 45 kg
