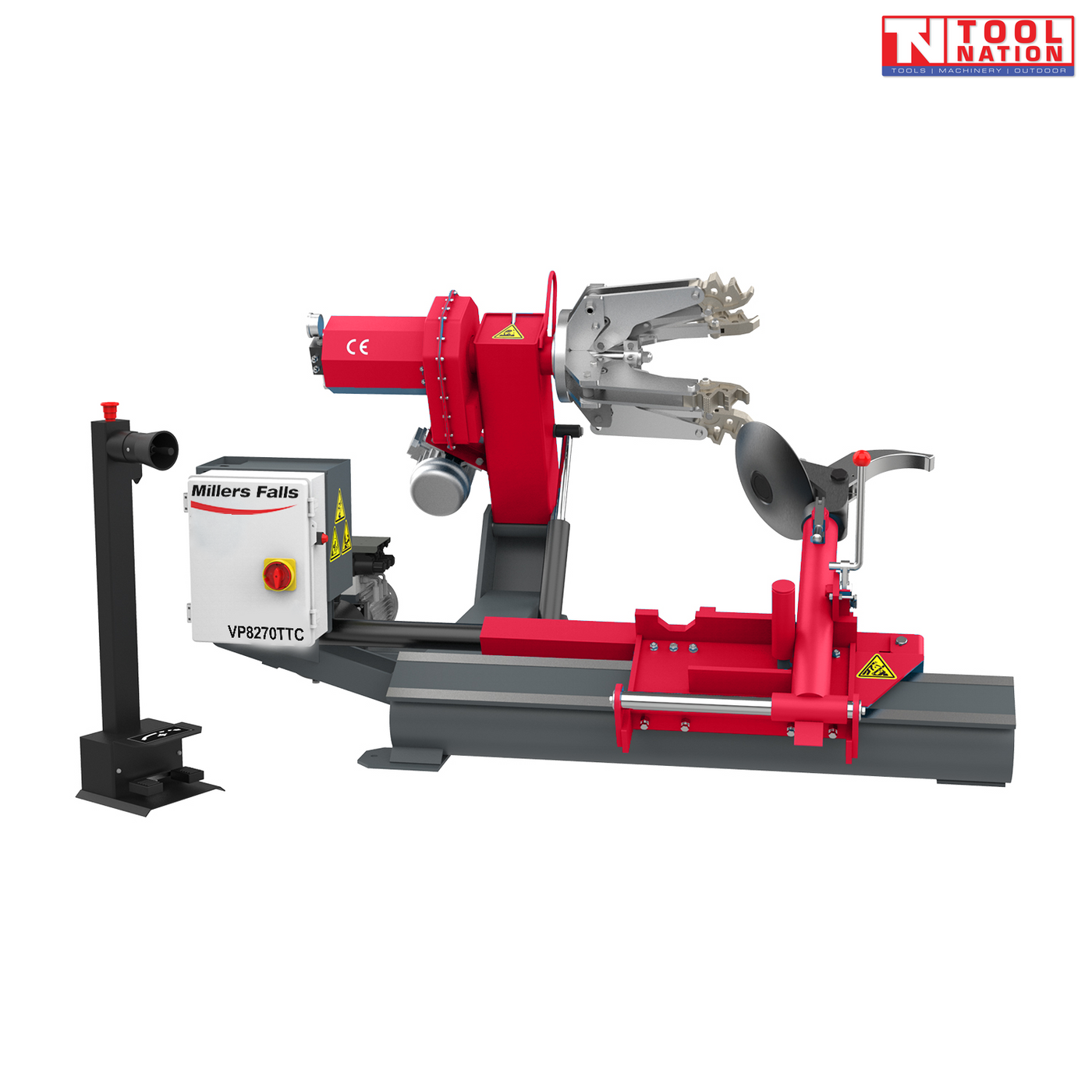

26 Inch Electro Hydraulic Truck Tyre Changer

VP8270TTC

Millers Falls Electro-Hydraulic Truck Tyre Changer 26” Capacity

The VP8270TTC Truck Tyre Changer offers precise, efficient tyre mounting and demounting, ideal for a wide range of truck, bus and agricultural equipment rims. The Millers Falls VP8270TCC is perfect for workshops catering to heavy vehicles that need equipment that can withstand rigorous and the demanding tasks of the industry. Our machines are built to last, delivering consistent performance even under the most challenging conditions. With Millers Falls you can trust that your tyre changer will be a reliable, efficient and safe investment for your workshop. Key features include: High-Grade Tempered Steel Mounting Head with Heat-Treated Clamping Jaw for enhanced durability. Our tyre machines accommodate most popular rim sizes with a Clamping Range of 14" to 26”.

Millers Falls Tyre Changers combine strength for tough tyres with a delicate touch on expensive rims, making them reliable in even the most demanding workshop environments. Additionally, Millers Falls offers exceptional after-sales support, maintaining a large parts inventory and dedicated customer service to keep your equipment running smoothly.

Features:

• Automatic Tyre Changer for drop-centre and tubeless-tyres on vans, trucks and bus wheels, and wheels with cylindrical rim with rim loop.

• Electro-hydraulic operation for superior torque and wheel holding power.

• Simple controls and positionable console unit lets the operator safely monitor the tyre-changing process from the most advantageous angle.

• Hydraulic sled carriage for positioning, bead loosening, mounting and demounting procedures.

• Hydraulic power unit installed on the machine to take up less space.

• The new standby function assures considerable energy saving and lower power unit noise emissions.

• Overhanging mobile bead breaker disc mounted on self-lubricating bushings.

• The clamping chuck rotates in both directions.

• Includes a pressure gauge for monitoring hydraulic pressure.

• Low voltage 24 v DC supply to remote unit adding an additional level of safety.

Specifications:

• Model: VP8270TTC

• Rim Clamping Range: 14"- 26"

• Max. Wheel Diameter: 1600mm

• Max. Wheel Width: 780mm

• Max. Tyre Weight: 500 kg

• Beadbreaking Force: 2700kg

• Operation Pressure: 130 Bar

• Gear Box Motor: 1.5 kW

• Hydraulic Motor: 1.5 kW

• Power Supply: 220V Single Phase

• Net Weight: 210kg

• Gross Weight: 618kg

• Packing Dimensions: 2030mm x 1570mm x 850mm
