26HP V Twin Petrol Engine 750cc Electric Start 25mm Shaft

QPE26ESs

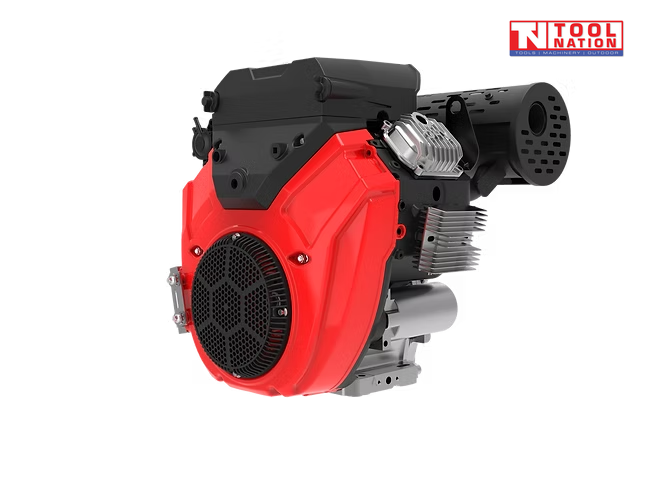

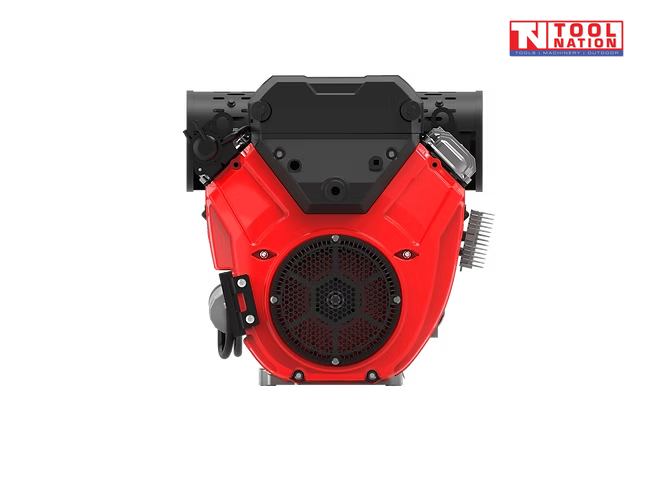

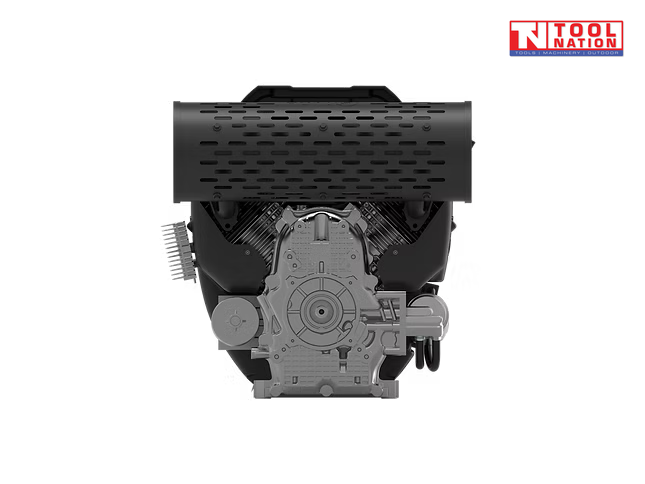

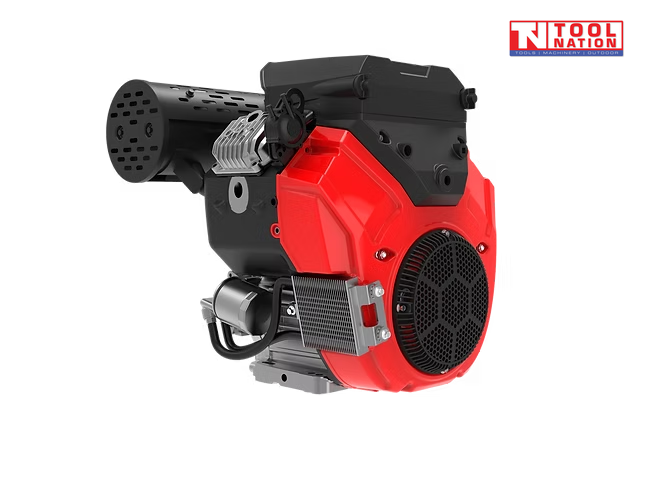

Millers Falls 26HP Horizontal Shaft Engine - Electric Start

Introducing the QPE26ESs, a dynamic 26HP electric start engine crafted with full commercial-grade construction, featuring a cast iron cylinder liner and durable design. Engineered for optimal power and torque, this powerhouse is the perfect choice for commercial ride-on mowers and zero-turn mowers. With its 1” crankshaft, the QPE26ESs serves as a direct replacement for popular models such as the Vanguard 23HP V-Twin Petrol Engine, Vanguard 26HP V-Twin Engine, Briggs & Stratton 27HP V-Twin Engine, and Kohler 25HP Engine.

The QPE26ESs features a 750cc displacement, delivering a powerful 18 kW (26 HP). With an 82×71 mm cylinder bore, this engine ensures efficient and tough performance. Operating at a maximum speed of 3600 r/min and producing 51 N·m of torque, it excels in performance and reliability. With a 2L oil capacity and compatibility with SAE 10W-30 oil, it’s designed for long-lasting operation. Compact dimensions of 670×500×585 mm and a weight of 46.5 kg make it robust yet manageable.

Features:

• Brand: Millers Falls
• Model: QPE26ESs
• Type: 26HP Petrol Engine
• Engine Type: Air-cooled, 4-stroke, V-Twin (horizontal shaft)
• Displacement: 750cc
• Low Oil Level Cut-Out Switch: Fitted
• Compression Ratio: 8.5:1
• Ignition System: Transistorised Magneto
• Compatible as a replacement for multiple popular engines
• Superior commercial-grade construction

Specifications:

• Model: QPE26ESs
• Bore & Stroke: 82 × 71 mm
• Displacement: 750 cc
• Rated Power: 26 HP
• Measured PTO Power: 16 kW
• Max Output Speed: 3600 rpm
• Max Torque: 47 N·m
• Idle Speed: 1440 rpm
• Starting System: Electric
• PTO Shaft Size: 25.4 mm (1")
• Shaft Length: 89 mm
• Engine Oil Capacity: 1.5 L
• Recommended Oil: SAE 10W-30
• Fuel Tank Capacity: N/A
• Fuel Consumption: 374 g/kW·h (max power)
• Packing Dimensions (L × W × H): 47 × 43 × 46 cm
• Net Weight: 46.5 kg
