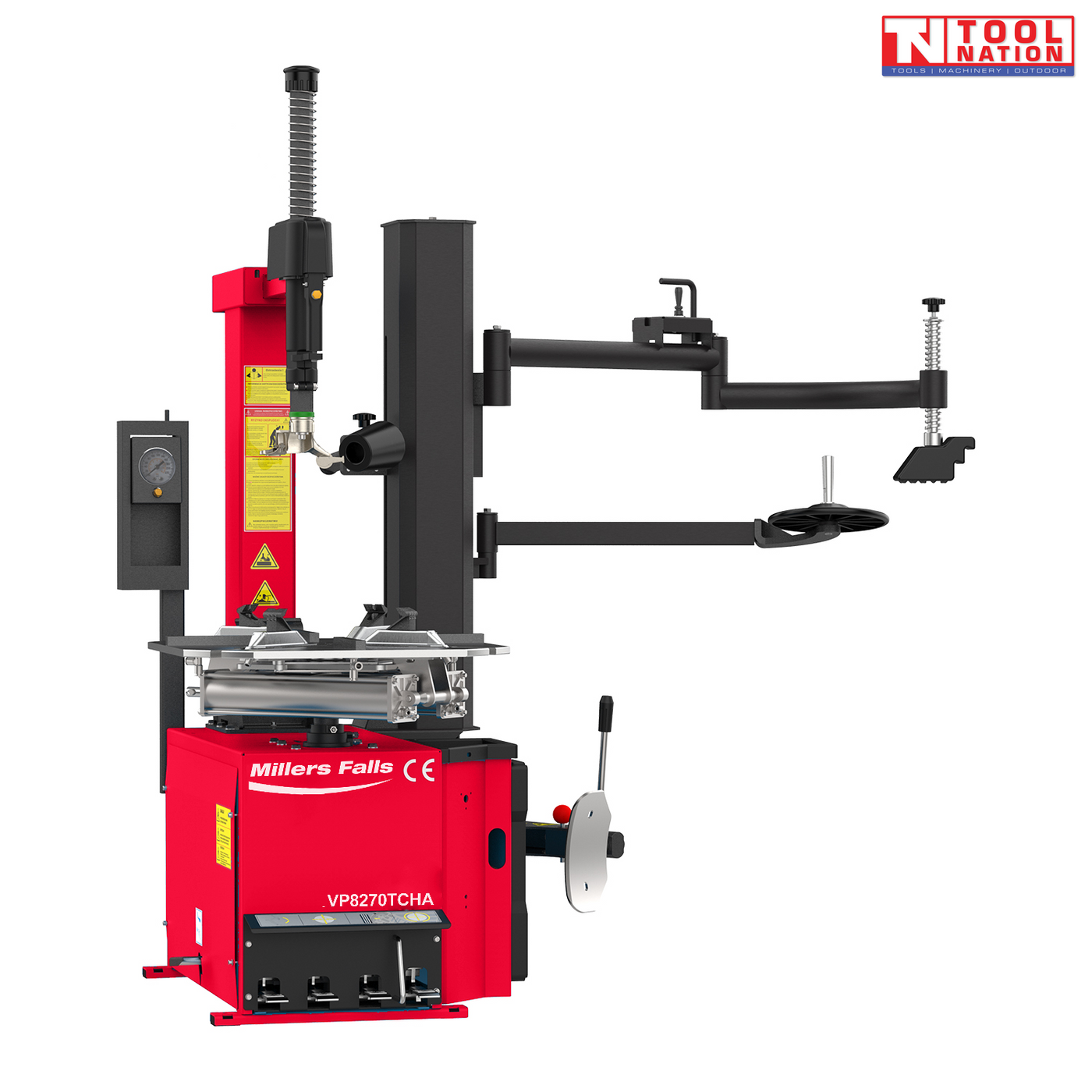

28 Inch Automatic Tyre Changer with Tilt Column and Right Help Arm

VP8270TCHA

Millers Falls Automatic Tyre Changer with Tilt Column and Right Help Arm 28” Capacity

The VP8270TCHA Tyre Changer with Pneumatic Tilt Column and right-side helper arm offers precise, efficient tyre mounting and demounting, ideal for a wide range of automotive and light truck rims. The helper arm with its bead pressing block, tyre lift disc and mid position roller is invaluable when dealing with drop centre rims, low profile tyres and a multitude of other difficult demounting situations. The tyre changer simultaneously locks both horizontal and vertical arms with automatic positioning of the head in the optimal work position.

Key features include: High-Grade Tempered Steel Mounting Head with Teflon insert guides for smooth scratch-free operation with Heat-Treated Clamping Jaw for enhanced durability. The Octagonal Precision Turntable coupled with Twin Clamping Cylinders ensures stable and reliable clamping.     Our Swing Arm Design provides flexibility in tyre handling. Our tyre machines accommodate most popular rim sizes with a Clamping Range of 10" to 24" across clamps.

Millers Falls Tyre Changers combine strength for tough tyres with a delicate touch on expensive rims, making them reliable in even the most demanding workshop environments. Additionally, Millers Falls offers exceptional after-sales support, maintaining a large parts inventory and dedicated customer service to keep your equipment running smoothly.

Features:

• Automatic tyre changer with pneumatic tilt-back tower.

• Robust Ø41mm hexagon shaft.

• Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position.

• Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions.

• Stainless Tool head with interchangeable plastic inserts for rim protection.

• Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types.

• Powerful clamping cylinders provide uniform clamping pressure.

• Clockwise and anticlockwise rotation of the turntable through electric motor.

• The pedal assembly can be removed allowing easy servicing.

• Independent tire inflation bay with inflation tube, pressure gauge and pressure release button.

• Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard.

• Complete with lubrication filter and pressure regulator.

Helper Arm:

• Rotating arm with bead pressing block for drop-centre rims, to assist fitting and removal of tyres, particularly low profile tyres.

• Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.

• Mid-position roller helps loosening of the second bead.

Specifications:

• Model: VP827TCHA

• Rim Clamping Outside: 12"- 28"

• Rim Clamping Inside: 10" - 24"

• Max. Wheel Diameter: 1150 mm

• Max. Wheel Width: 3” – 15” mm

• Beadbreaking Force: 2700 kg

• Operation Pressure: 8 -10 Bar

• Motor Power: 1.5 kW

• Power Supply: 220V Single Phase

• Gross Weight: 288 kg

• Packing Dimensions: 1130 mm x 890 mm x 990 mm

Helper Arm:

• Gross Weight: 100 kg

• Packing Dimensions: 1270 mm x 530 mm x 420 mm
