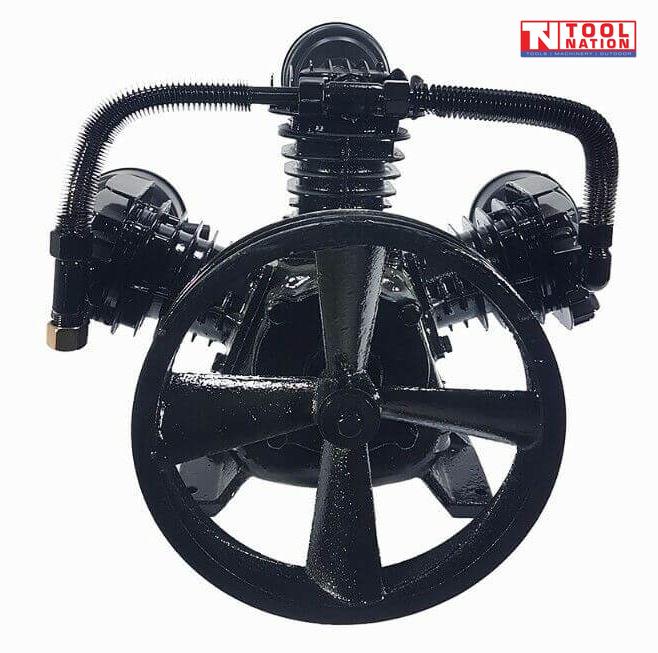

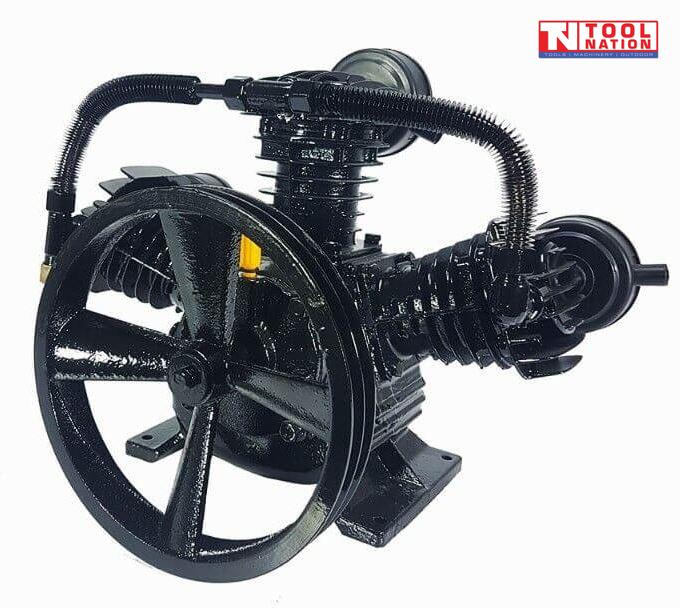

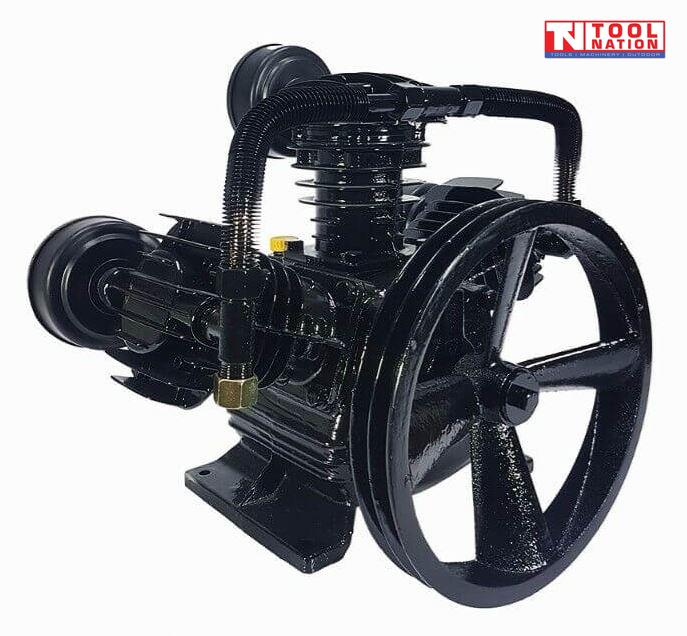

3 Cylinder Cast Iron V Type Air Compressor Pump
ACBPUMP3065
AIR COMPRESSOR PUMP 3 Cylinder Cast Iron V Type
Description:
Millers Falls three cylinder cast iron single stage air compressor pump. This pump is most commonly used on 240 volt or petrol driven air compressors and mounted on an air receiver. The most common motor size used with this pump ranges from 2 to 3 horsepower electric or 6.5-7.5HP Petrol engines. The pump comes complete with intake filters and flywheel.
The Millers Falls Belt Driven Air Compressor pump has a displacement of 368 litre per minute (13 CFM) at 980 RPM. One of the standout features of this model is its comparatively high air output. With 330 Litres per Minute of actual Free Air Delivery (F.A.D.) at 8 BAR this compressor pump can comfortably run most air tools.
Features:
Three Cylinder Cast Iron Pump
Cast Iron Cylinder and Crankcase
Durable - High quality components & fittings.
Specifications:
Model: ACBPUMP3065
Recommended Working Pressure: 115 PSI
Recommended RPM: 900-1200
Displacement: 368L/min Max (13cfm)
Power Required: 2250W (3.0HP/2.2kW) Electric
Power Required: 6.5 HP – 7.5 HP Petrol
Air Flow @ 8 Bar: 330L/min
Air Flow @ 4 Bar: 400L/min
Noise: 76dB
Pump: 3 x 65mm Cylinders
Flywheel Diameter: 265 mm
Package Size: 56.5 x 35 x 45 cm
Weight – G.W = 21kg N.W = 19kg
