34HP V Twin Petrol Engine 999cc Electric Start 36mm Shaft

Engines

$2,145.00

QPE34ESs

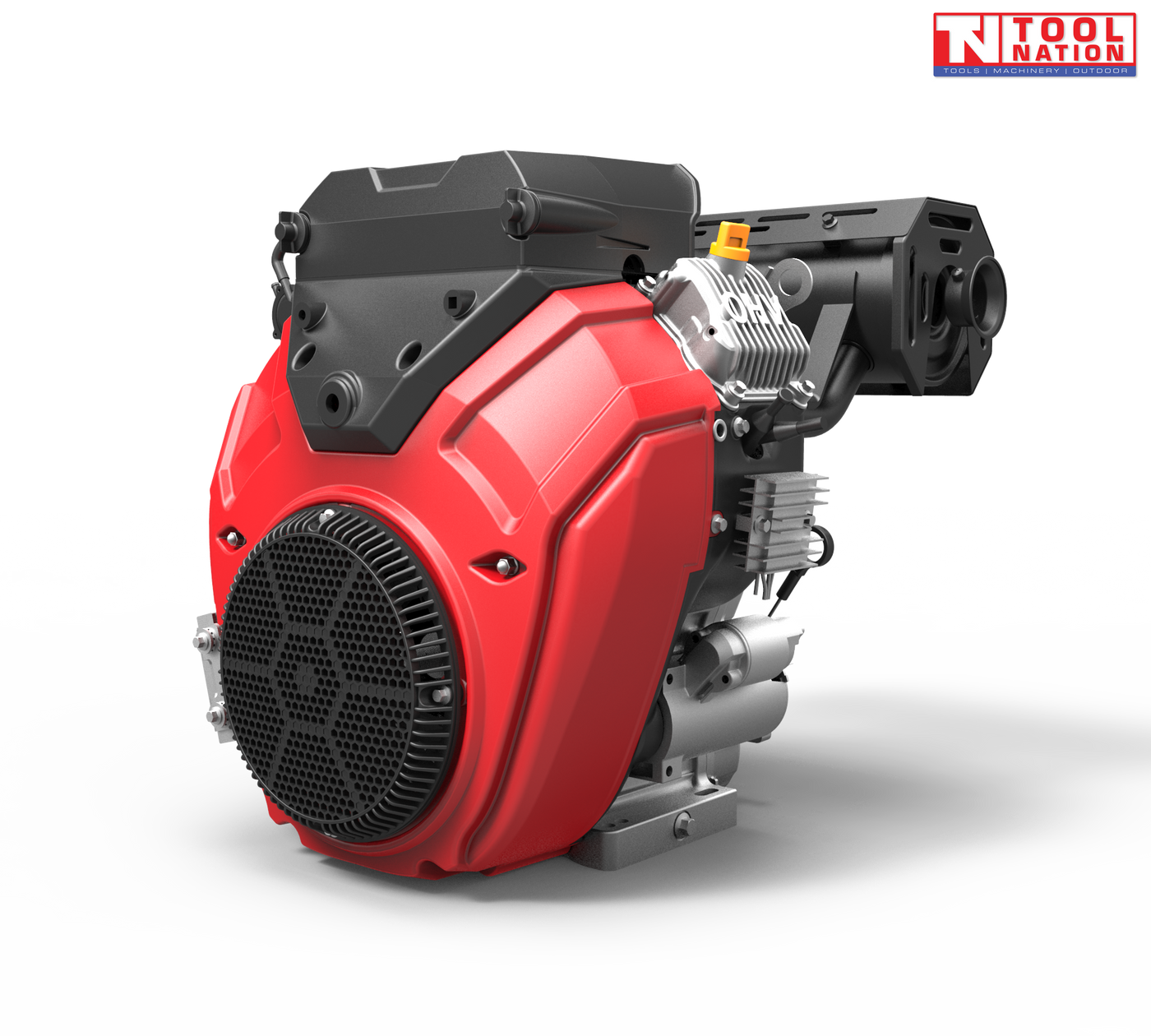

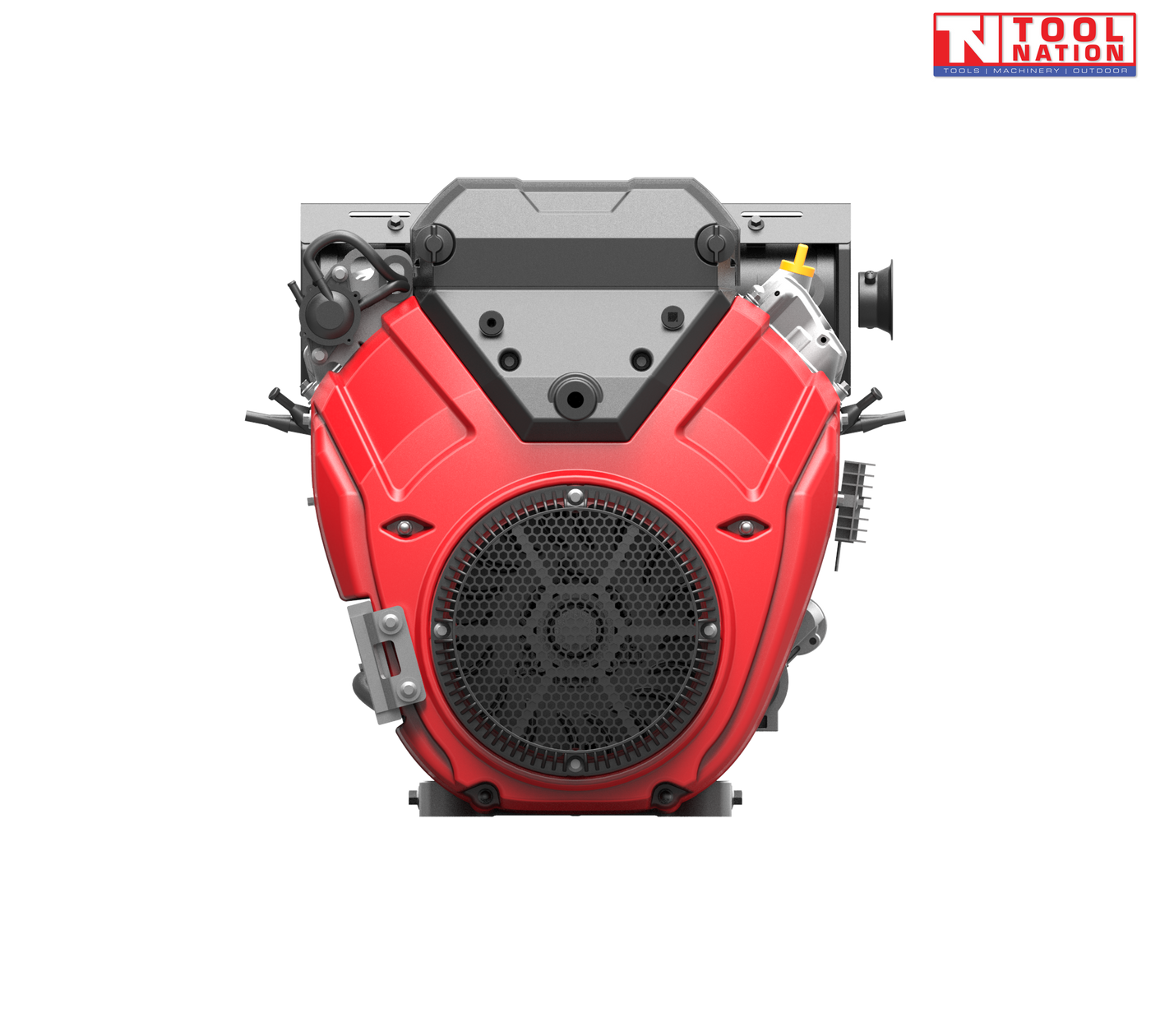

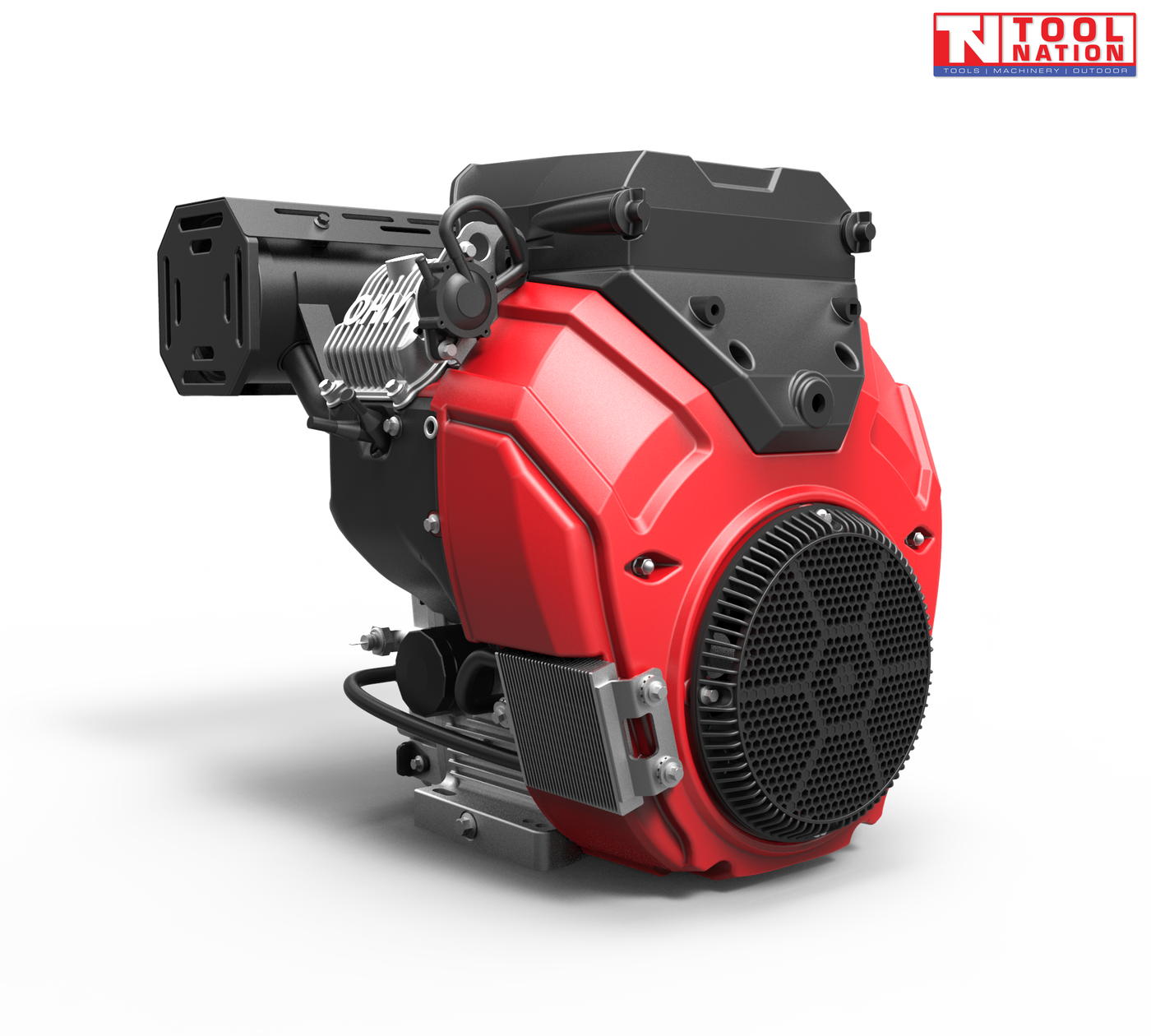

Millers Falls TWM 34HP 999cc V-Twin Petrol Engine 1" 25.4mm Horizontal Shaft

The Millers Falls QPE34ES is the largest petrol engine in the Millers Falls range. The V Twin 999cc engine features design innovation with proven performance and reliability. Suitable for the most challenging applications—where downtime is not an option—this V-Twin engine has been expertly engineered to deliver the dependability expected of quality products.

Typical applications include: Pressure Pumps, Commercial Mowers, Chippers, Water Pumps, Construction Equipment, Agricultural Machinery and many other uses.

The 34HP V-Twin Petrol Engine is an excellent quality engine at an exceptional price. It is lightweight and has an improved design that is suitable for a number of different applications including generators, pumps, pressure washers, air compressors, log splitters, or any other machine which requires an engine of this size to operate.

The Millers Falls TWM QPE34ESs 34HP 999cc V-Twin Electric Start Petrol Engine has a 36.4mm horizontal shaft, while its overhead valve (OHV) design allows the engine to operate at lower temperatures, providing strong power combined with reliability and durability, while saving fuel and ensuring easy maintenance.

Its transistor ignition system provides easy starting and stable performance and efficient, economical running and the onboard Low Oil Alert System will shut down the engine if the oil level is low, giving more protection.

Cast iron cylinder sleeve, metal cams and a forged crankshaft effectively improve internal lubrication performance, enhancing wear resistance and extending its service life.

Features:

Brand: Millers Falls

Model: QPE34ES

Type: 34HP petrol engine

Engine Type: Air-cooled, 4 stroke, V-Twin (horizontal shaft)

Low oil level cut out switch fitted

Gross Horsepower of 34HP (999cc)

Muffler supplied

Full Pressure Lubrication with Spin On Oil Filter

Oil Cooler Radiator

Fitted With Heavy Duty Air Filter Assy

Ignition System: Transistorised Magneto

Start Mode: Electric start (Key)

Specifications:

Displacement: 999cc

Bore & Stroke: 90 x 78.5mm

Rated Speed: 3600 RPM

Maximum power output: 24kw /2800rpm

Maximum torque: 70nm/2800rpm

Idle speed: 1600 +- 160

Shaft Diameter: 36.4mm (1 7/16”) threaded with keyway

Oil Capacity: 2.5L

Shaft Length: 108mm

Net Dimensions: 500mm (L) x 580mm (W) x 570mm (H)

Net Weight 60kg

Package Dimensions: 67cm x 58cm x 62cm

Package Weight: 69kg
