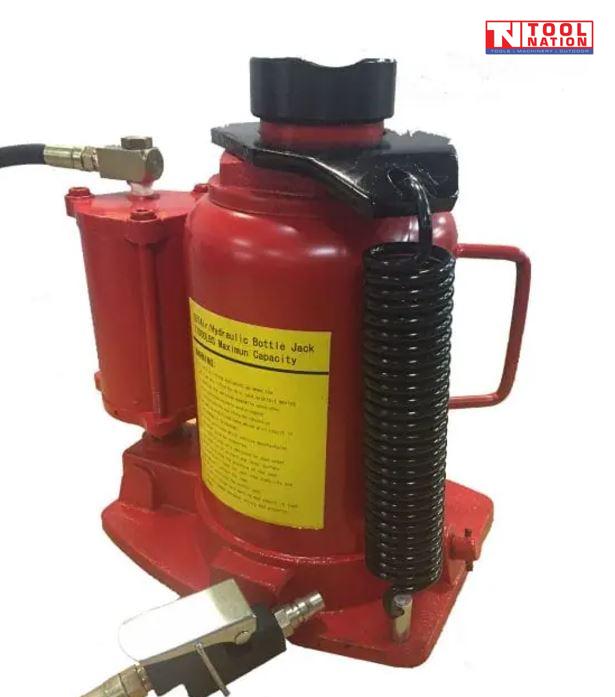

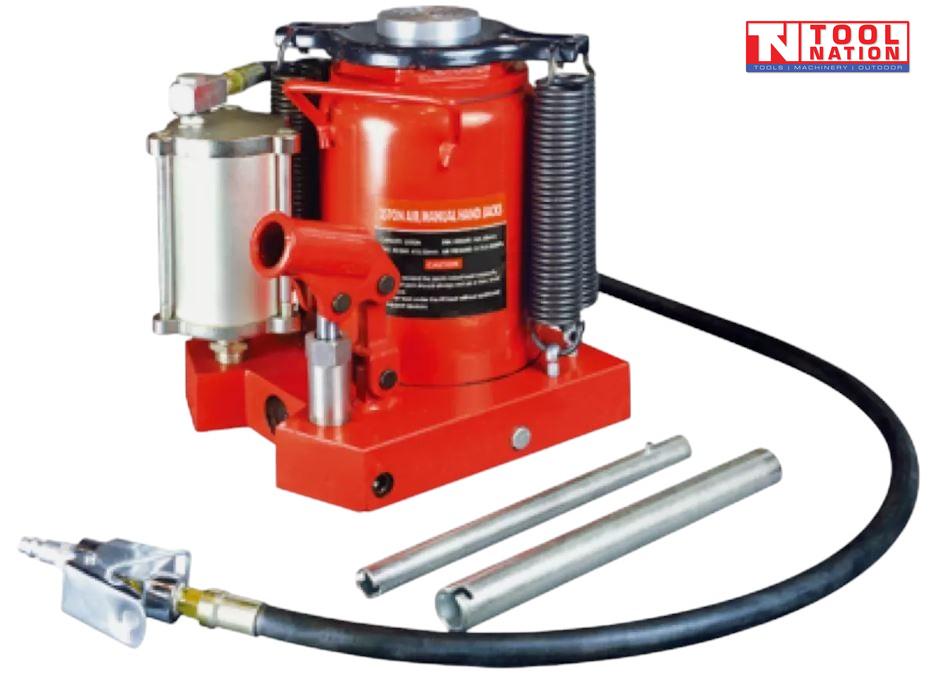

35 Ton Air Hydraulic Bottle Jack

LHJ35

35T AIR HYDRAULIC JACK

Description:

The 35-tonne air hydraulic jack is a robust and high-powered tool designed for heavy-duty lifting, capable of handling up to 35 tonnes (77,161 lbs) of weight. With an adjustable height range from 10.4 inches (265 mm) to 16.4 inches (416 mm), it is ideal for a wide variety of heavy lifting tasks, including machinery, trucks, and large vehicles.

A key feature of this jack is its powerful design, featuring 4 return springs that provide quick and stable resetting, which enhances work efficiency and ensures fast readiness for subsequent lifts. Its extension screw allows for additional fine height adjustments, making it perfect for lifting objects with higher ground clearance or those that require precise positioning during lifting.

For seamless operation, the air hydraulic bottle jack connects to an air compressor via the included hose and 20 PM connector. Once connected, simply press the pneumatic switch to initiate the lift, eliminating the manual effort needed with traditional jacks. This feature significantly boosts efficiency, especially in demanding heavy lifting operations.

The jack is engineered for durability with high-quality welding and seals that prevent oil leakage, ensuring long-lasting and reliable performance. It also includes a built-in safety valve to prevent overloading, reducing the risk of accidents and ensuring that the jack operates safely within its rated capacity. The integrated hydraulic cylinder and piston rod design, along with a corrosion-resistant coating, contribute to the jack's overall strength and longevity.

Portability is another key advantage. The jack's compact design, combined with a built-in handle, makes it easy to carry and transport. For optimal performance and longevity, it is recommended to store the jack in a clean, dry environment, away from excessive heat and corrosive substances.

Regular maintenance is essential to keep the jack in peak condition. Periodic lubrication with the appropriate hydraulic fluid is necessary to ensure smooth operation and extend the service life of the jack.

Features:

• 35-Tonne Capacity: Lifts up to 35 tonnes (35,000 kg), making it suitable for even the most demanding heavy-duty lifting tasks.

• Adjustable Height: Lifting range from 265 mm to 416 mm, with the ability to make fine adjustments using the extension screw.

• Effortless Operation: Connects to an air compressor with a pneumatic switch for easy and efficient lifting.

• Leakage-Proof: High-quality welding and seals prevent oil leakage, ensuring reliable and efficient operation.

• Safety Features: Built-in safety valve to prevent overloading, ensuring secure and safe lifting operations.

• Durable & Portable: Corrosion-resistant coating, compact design, and built-in handle for easy transport.

This 35-tonne air hydraulic bottle jack combines exceptional strength, ease of use, and portability into one powerful tool, making heavy lifting simpler, safer, and more efficient.

Specifications:

Model: LHJ35

Capacity: 35,000 kg

Min Height: 265 mm

Max Height: 416 mm

Lifting Height: 151 mm

Package Dimensions: 29 x 22 x 27 cm (CTN)

Weight: 23 kg
