4 Inch Diesel Water Transfer Pump 10HP Electric Start

QWD100ES

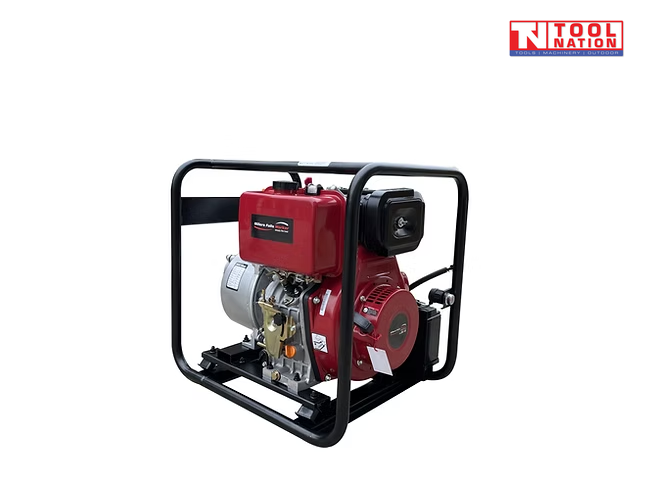

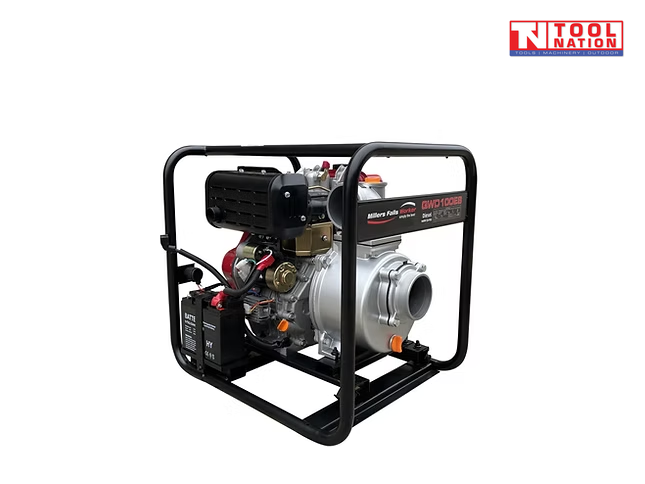

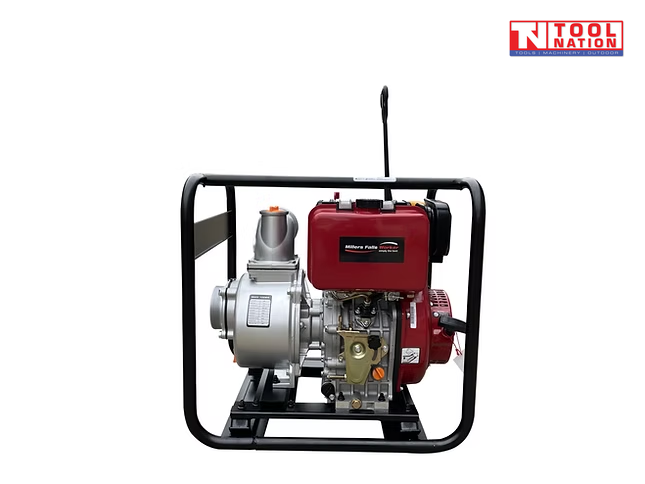

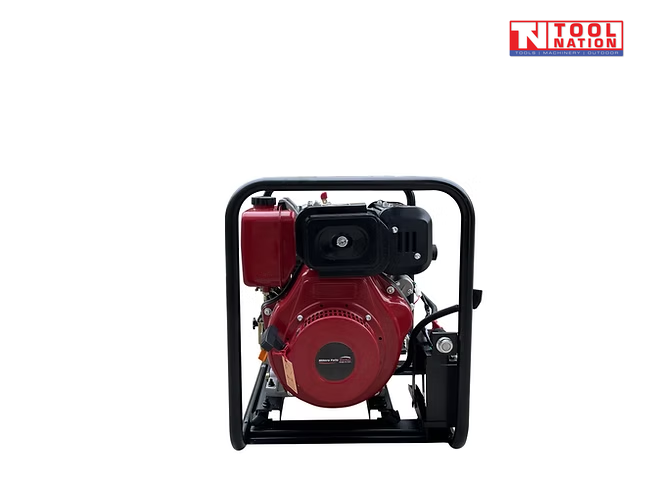

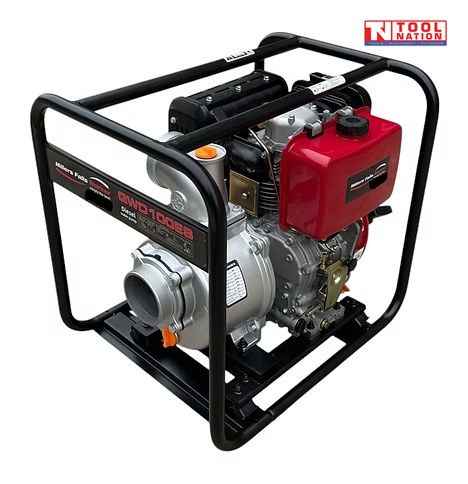

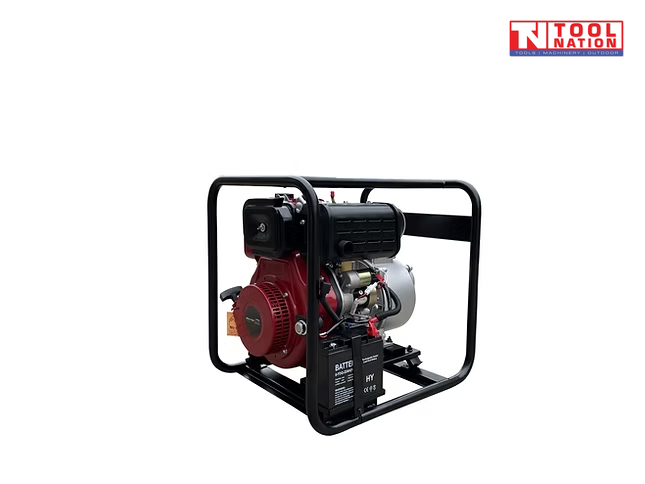

The QWD100ES is a high-capacity 4-inch Diesel Water Transfer Pump designed for demanding fluid transfer operations. Powered by a 10HP diesel engine, it delivers a maximum head of 32 meters and a capacity of 96m³/hr, ensuring efficient performance for large-scale applications. With 100mm suction and discharge ports, it provides optimal fluid intake and delivery. The pump also features a self-priming time of under 120 seconds for quick start-up. Its air-cooled, 4-stroke diesel engine ensures reliability, while both electric and recoil start options—combined with a 5.5L fuel tank—allow for extended operation in tough conditions.

Features:

• Suction: 100mm for reliable fluid intake
• Discharge Port Dia: 4” (100mm) for efficient fluid delivery
• Max Head: 32m, providing reliable pressure for water transfer
• Max Capacity: 96m³/hr for high-volume fluid transfer
• Max Suction Head: 8m, allowing water intake from greater depths
• Self-Priming Time: <120s for quick and efficient priming
• Engine Type: Air-cooled, 4-stroke diesel for durability and longevity
• Engine Continuous Output: 10HP at 3600 RPM for high performance
• Electric & Recoil Start: Battery included for easy starting
• Engine Fuel Tank: 5.5L for extended operation
• Packing Dimensions: [To be provided]
• Weight: [To be provided]

Specifications:

• Suction: 100mm
• Discharge Port Dia: 4” (100mm)
• Max Head: 32m
• Max Capacity: 96m³/hr
• Max Suction Head: 8m
• Self Priming Time: <120s
• Engine Type: Air-cooled, 4-stroke diesel
• Engine Continuous Output: 10HP @ 3600 RPM
• Engine Fuel Tank: 5.5L
• Weight: [Not provided]
• Packing Dimensions: [Not provided]
