4 Inch PTO Wood Chipper 100mm Fabricated Steel 24-45HP

FIBX42S

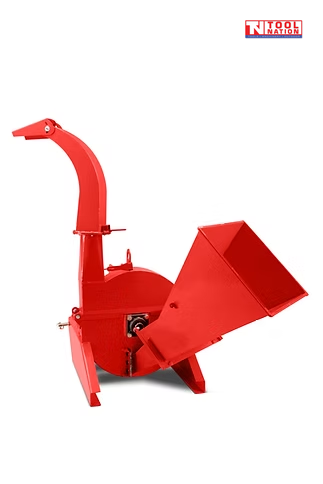

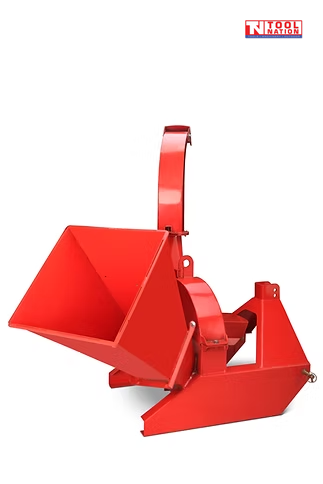

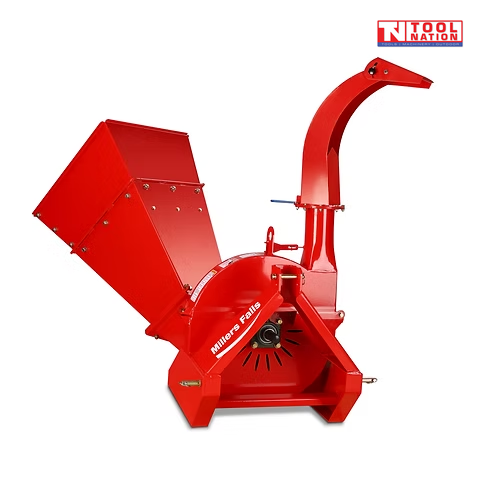

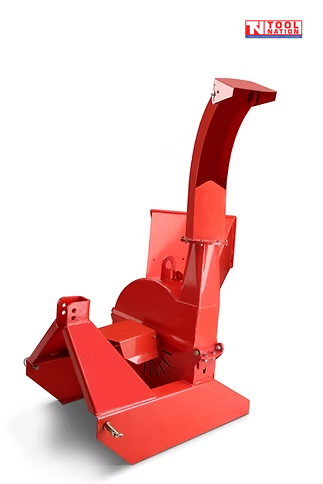

Wood Chipper 100mm 4” Fabricated Steel for Tractor with Three-point Linkage

Description:

The PTO wood chipper efficiently transfers power from the tractor's engine to the chipper. This model is designed to be mounted to a tractor’s three-point lift assembly, eliminating the need for trailers or additional transport methods. Once material is placed into the feed hopper, the self-feeding system and chipper blades automatically pull it through for processing.

The 4" 3-point PTO wood chipper has a maximum chipping capacity of 100mm diameter wood. It features multiple adjustments for the blades, chute, and lift points, and the reversible blades allow for extended use. The rotor is powered directly from the tractor via the supplied Shear Pin PTO shaft, ensuring smooth power transmission. Compatible with tractors from 18–45 HP.

Note: Pine or other sappy timbers contain resins that can build up and clog the cutter teeth. It is recommended to run dry hardwood through at the end of use to prevent buildup.

This heavy-duty fabricated steel chipper has a large-diameter rotor for faster tip speed and improved chipping action. The heavy-gauge steel construction maintains momentum to power through logs up to 100mm in diameter.

The reversible blades are precision-cut tool steel and hardened for long life and consistent cutting performance. Integrated blower paddles with twig breakers improve chip consistency and allow chips to be expelled further. The double-adjustable exit chute swivels 360° and the top deflector allows control of chip throw distance.

Features:

• Fabricated Steel Construction
• Reversible Knives
• Adjustable Bed Blade
• Rotating Exit Chute
• Shear Pin PTO Shaft included
• 3-point linkage connection
• Large Diameter Rotor
• Easily accessible anvil and blades for quick maintenance

Specifications:

• Dimensions (mm): 1015 × 1065 × 1525
• Chipper Housing Opening: 100 × 250mm
• Rotor Size: 635mm
• Number of Rotor Knives: 4
• Rotor Weight (kg): 50
• Feeding System: Gravity Self Feed
• Hopper Opening: 510 × 510mm
• Discharge Hood Rotation: 360 degrees
• Discharge Hood Height: 1525mm
• Rated RPM: 540–1000
• Power Required (HP): 24–45
• Weight (kg): 195
