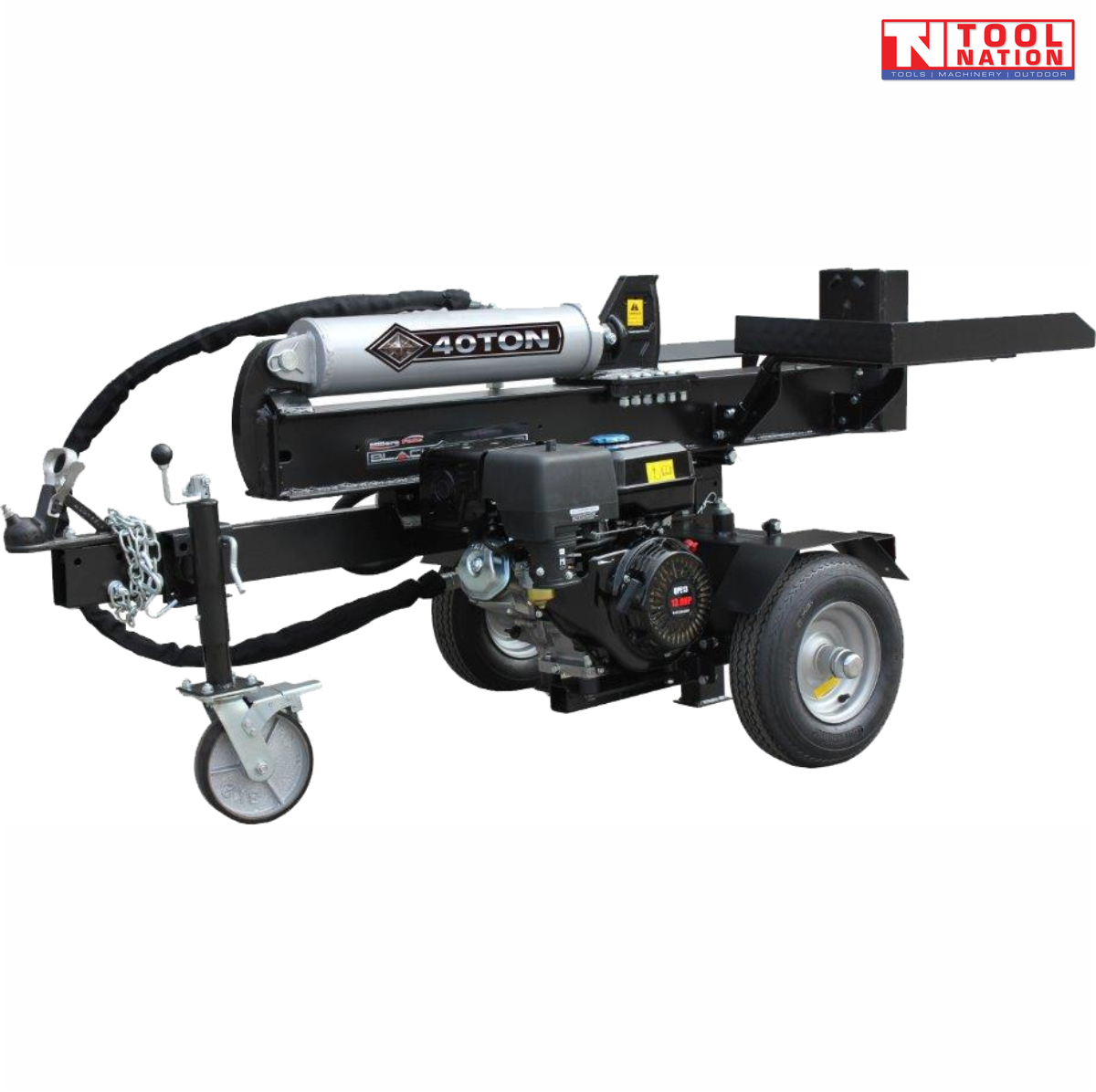

40 Ton Hydraulic Log Splitter No Engine

LS40WEBD

40 Ton Log Splitter (Engine-Not-Included)

The LS40WEBD Millers Falls Black Diamond Log Splitter is a versatile, heavy-duty machine built to deliver exceptional splitting power, capable of splitting logs with 40 tons of force. Unlike the standard model, the LS40WEBD allows you to use your own engine, providing flexibility and customization. It is ideal for customers who already own a compatible engine and want to tailor their log splitter to their specific needs.

This model features a robust 200mm heavy-duty cast steel wedge, designed for maximum splitting efficiency. The 2-stage gear pump ensures optimal hydraulic pressure, providing a cycle time of 16 seconds for fast and efficient splitting. The auto return valve with a safe relief function offers enhanced safety during operation.

The LS40WEBD is equipped with a heavy-duty log table to make loading and unloading logs easier. Additionally, the 406mm DOT pneumatic wheels and 203mm jockey wheel enable easy towing, making it suitable for use on private property at speeds up to 116 kph.

For added convenience and safety, this splitter comes with a safe chain, wheel fenders, and reflectors to ensure visibility during transport. This log splitter is perfect for those who need a customizable, high-performance machine for demanding firewood splitting tasks.

Features:

• Engine: Engine not included

• Maximum Splitting Force: 40 Ton

• Cylinder Size: 127mm x 493mm

• Wedge: 200mm heavy-duty cast steel wedge (wearproof)

• Pump: 2-stage gear pump for a minimum 16-second cycle time

• Auto Return Valve: Includes safe relief function

• Log Capacity: Maximum log length 550mm, maximum diameter 300mm

• Heavy-Duty Log Table: For easier log handling

• Towing: 406mm DOT pneumatic wheels and 203mm jockey wheel

• Maximum Towing Speed: 116 kph

• Safety Features: Safe chain, wheel fenders, and reflectors

• Operation: Horizontal and Vertical positions

• Towing Restrictions: Only to be used on private property (not for public roads)

Specifications:

• Maximum Splitting Force: 40 Ton

• Wedge Height: 200mm (heavy-duty cast steel, wearproof)

• Log Length Capacity: Up to 550mm

• Log Diameter Capacity: Up to 300mm

• Pump: 2-stage gear pump, 16s cycle time

• Cylinder Size: 127mm x 493mm

• Hydraulic Oil: Supplied with 20 Litres OSO46 Oil

• Towing Wheels: 406mm DOT pneumatic wheels

• Jockey Wheel: 203mm diameter x 51mm

• Maximum Towing Speed: 116 kph

• Packing Dimensions: 1720mm x 520mm x 790mm

• Packaged Weight: 300kg
