415V 3-Phase Auto Transfer Switch for 10 Pin Diesel Generators

GSATS100-3PH

Auto Transfer Switch 415V

Suits 10 Pin Diesel Generators

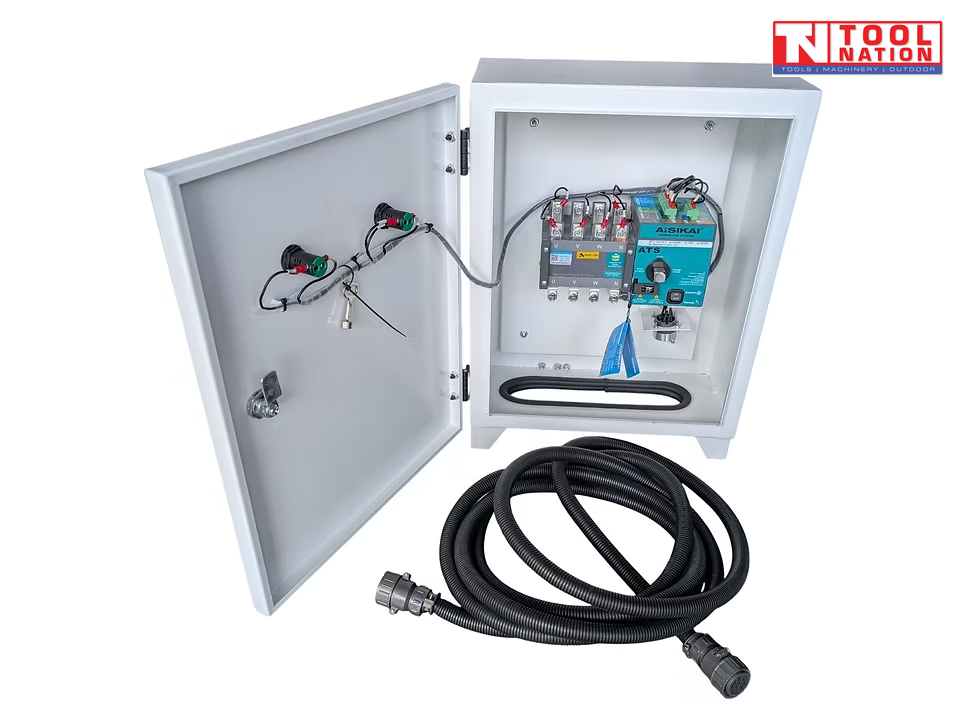

The GSATS100-3PH Auto Transfer Switch is a robust and reliable solution engineered for high-powered 3-phase diesel generators, providing automatic or manual transfer between mains and generator power sources. Perfect for industrial, commercial, and agricultural applications, it ensures a continuous and stable power supply during mains outages.

In Automatic Mode, the GSATS100-3PH instantly detects a mains power failure and sends a start signal to the generator via the 10-pin connector. Once the generator reaches stable operation at 50Hz, the switch transfers the load to generator supply. When mains power is restored, it automatically transfers the load back and shuts down the generator safely.

The Manual Mode allows for user-controlled operation, ideal for maintenance or testing purposes.

Built with a high-speed solenoid-driven mechanism, the GSATS100-3PH ensures rapid, safe, and precise switching between power sources, supporting a current range of 63-100 Amps.

IMPORTANT: All wiring and installation must be performed by a licensed electrician.

Features:

• Heavy-Duty 3-Phase Auto Transfer Switch
• Automatic and Manual Operating Modes

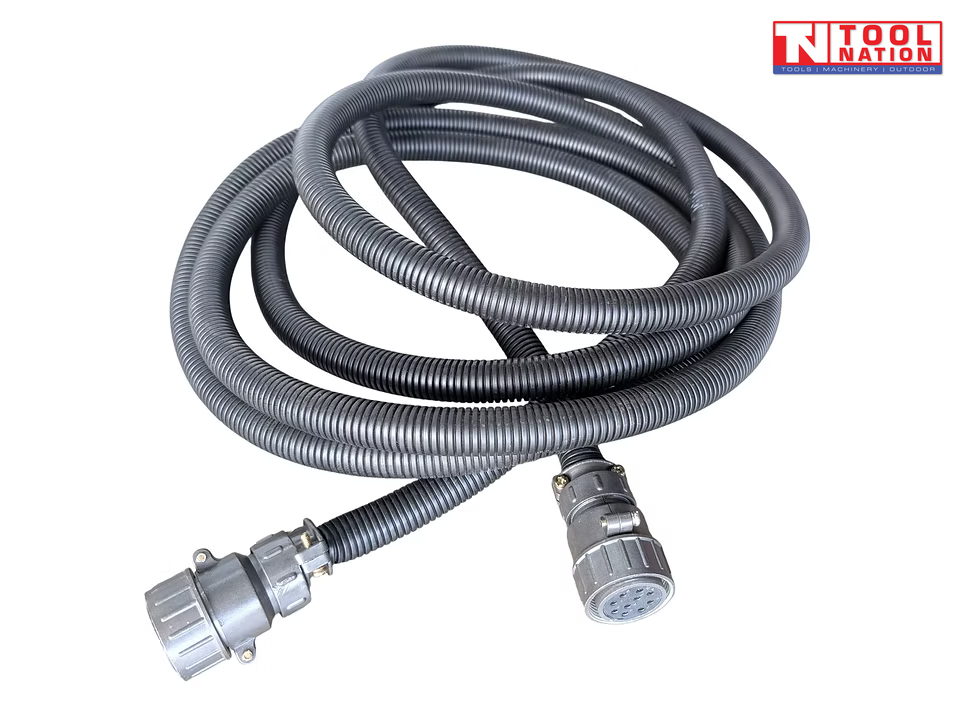

• 10 Pin Connector Cable Included
• Mains Power Indicator
• Generator Power Indicator
• Load Active Indicator
• System Fault Light

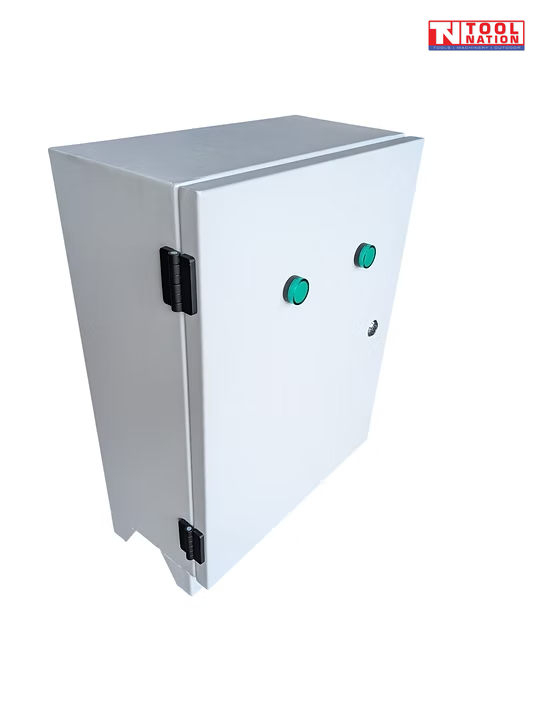

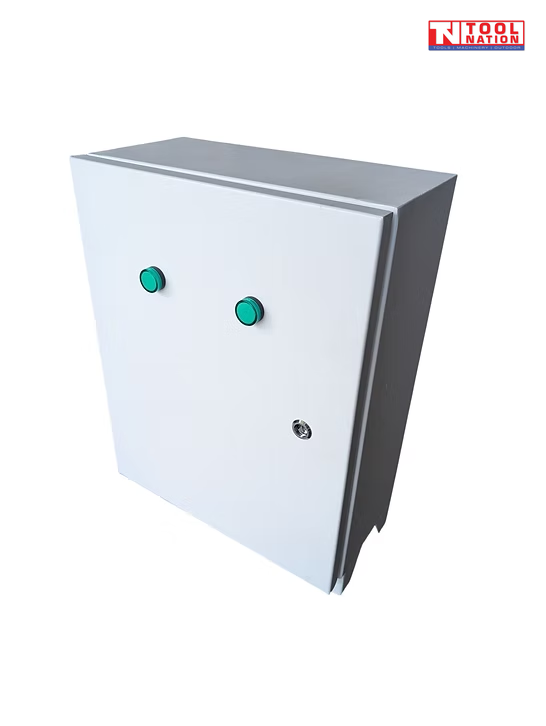

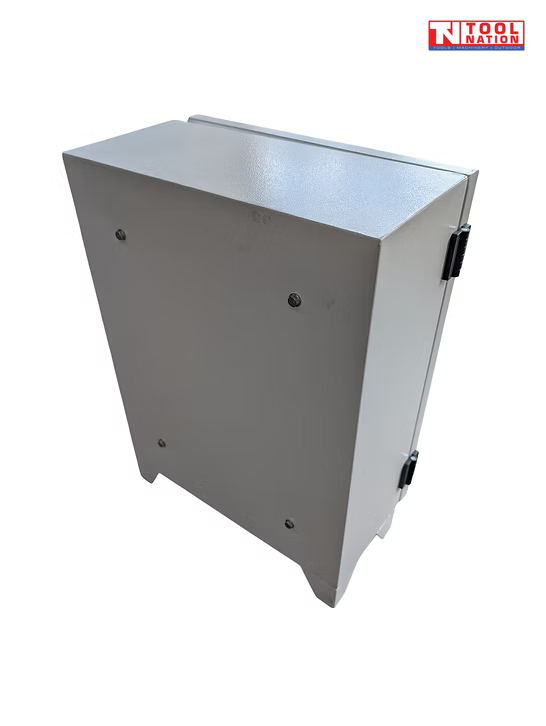

• Lockable Metal Cabinet for Security

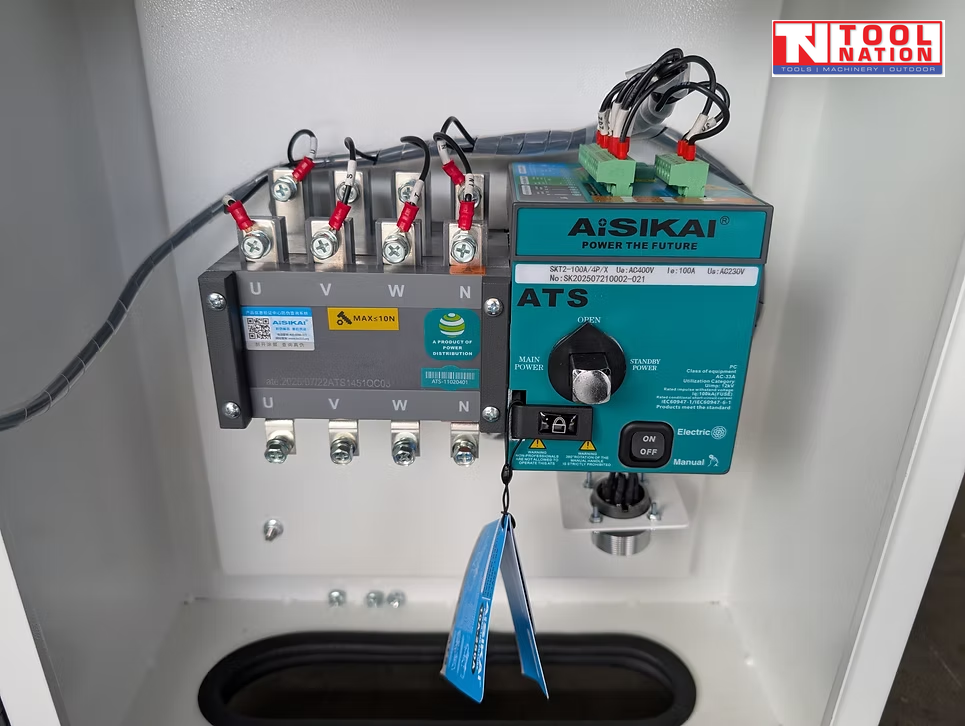

• Industrial Solenoid Mechanism for Fast Load Transfer
• 415V 3-Phase Operation
• Current Range: 63-100 Amps
• Dimensions: 55cm x 45cm x 25cm
• Weight: 16kg
