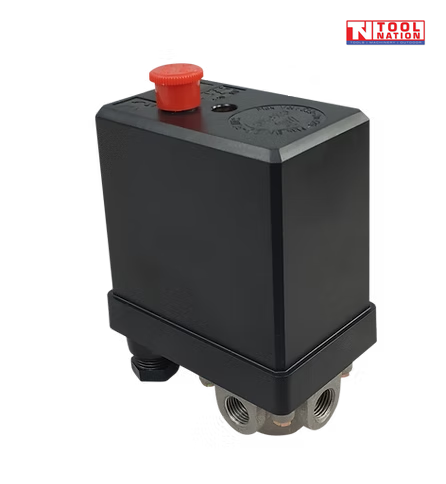

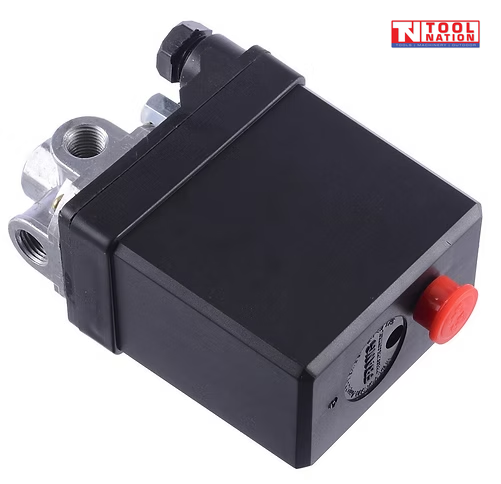

415V 4 Port Air Compressor Pressure Switch

ACS3-3PH

AIR COMPRESSOR PRESSURE SWITCH 4 PORT 415 Volt

Description:

The Millers Falls four port three phase pressure switch is a durable and versatile option for most air compressors. It features adjustable cut in and cut out pressure settings, making it customizable to meet specific needs. The thicker plastic cover ensures durability and longevity, while the large heavy contacts are designed to last.

The quality alloy casting of the air connections adds to its overall durability. The ACS3-3PH pressure switch is a pressure-operated electric switch that regulates tank pressure on electrically driven air compressors. It offers additional features such as an unloader valve to prevent starting under load and an On-Off button for manual control. The four-port manifold style option allows for easy mounting of valves and gauges. Overall, this pressure switch is a high-quality and reliable option for air compressor applications.

Features:

• For commercial compressors

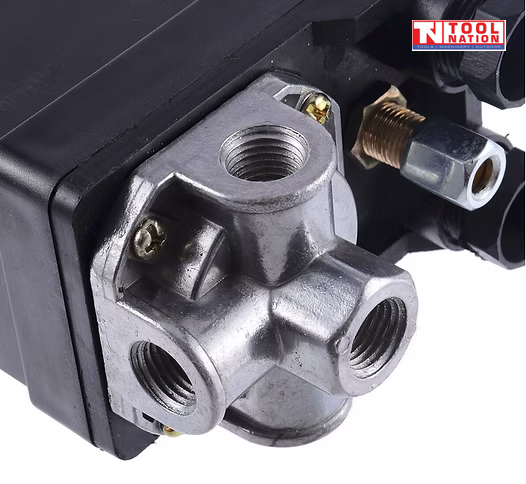

• 3 x 1/4″ bsp female inlet port
• Unloader 1/4″ copper or nylon
• Pressure range 45-175psi
• Differential (non Adjustable) 45psi
• Factory setting 85-115psi
• Contact Arrangement Normally Closed
• Auto load/unload
• ON/OFF switch knob
• Copper connector
• Easy to install and convenient to use
• Durable - High quality components & fittings.

Specifications:

Model: ACS3-3PH

Maximum Pressure: 175 PSI

3-phase for simultaneous switching of all 3 phases

Protection class: IP44 (splash-proof)

Operating voltage / power: max. 500 Volt/20 amp.

Current: 16-20A

Dimension (L x W x H): Approx. 110 x 70 x 150 mm

Weight: 300 grams
