4HP Diesel Engine 246cc Electric Start 19mm Shaft

QDE4ES

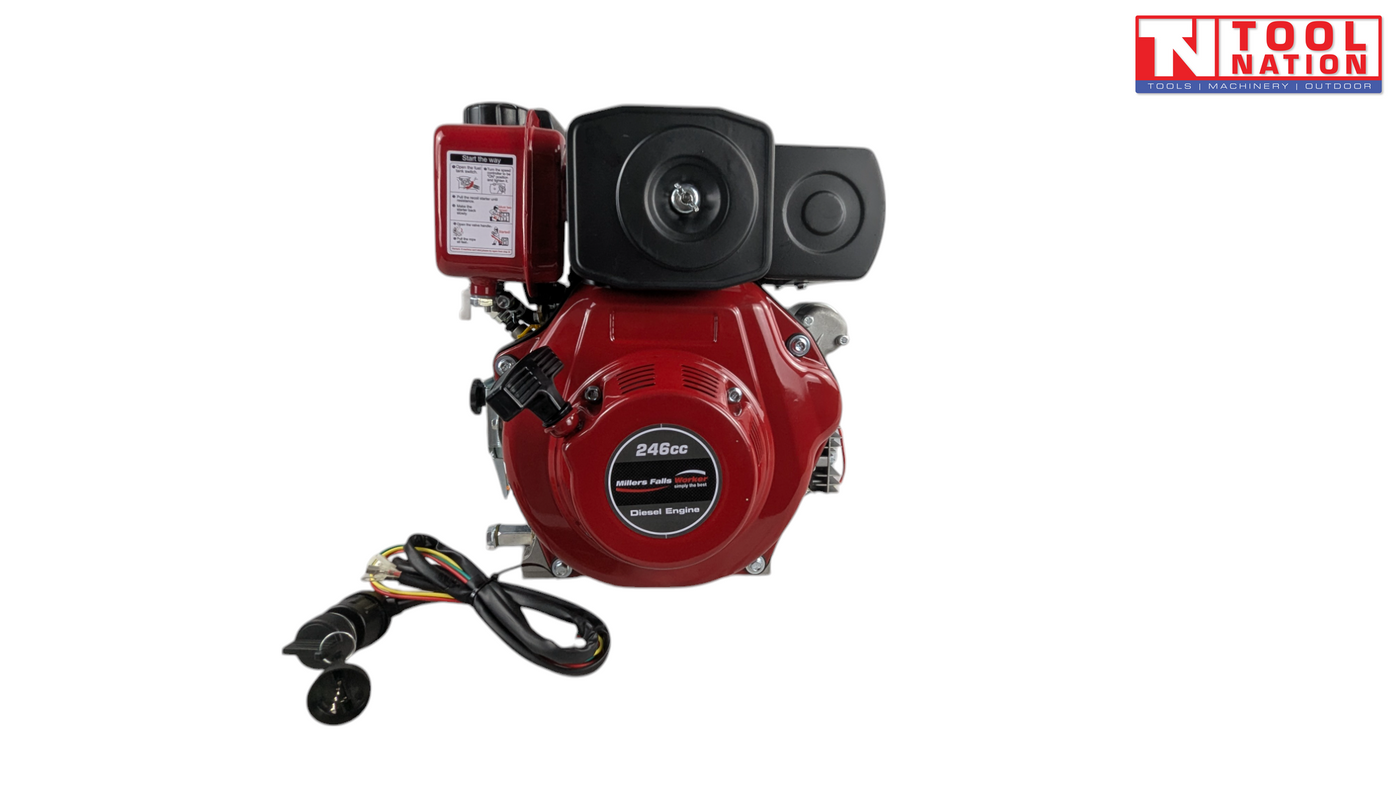

4HP 246cc Electric Start Diesel Engine

The Millers Falls TWM QDE4ES 4HP 246cc Electric Start Diesel Engine is a highly versatile and reliable engine designed for a variety of applications. Its lightweight design and enhanced durability make it suitable for use in generators, pumps, pressure washers, air compressors, log splitters, and tillers.

This engine features a standard 19mm horizontal shaft and an overhead valve design, allowing it to operate at lower temperatures while delivering strong power and fuel efficiency. With a high power output and large tank capacity, it's an ideal choice for professionals.

Equipped with air cooling, an electric start, and a manual decompression lever, the QDE4ES ensures convenience and reliability. The shaft output is 19mm with a keyway at 3000rpm, and it includes a variable throttle control system. Additionally, the engine offers both electric and pull-start options for flexibility in operation.

Overall, the Millers Falls TWM QDE4ES 4HP 246cc Electric Start Diesel Engine is a dependable and efficient choice for replacing or upgrading your diesel-driven machines.

Features:

• Type: 4HP diesel engine

• Engine Type: Air-cooled, OHV, 4 stroke, single cylinder

• Start Mode: Electric start with manual backup

• Mounting Bolt Pattern: Compatible with Honda, Briggs & Stratton, and most Yanmar engines

Specifications:

Model: QDE4ES

Engine: 246CC Four Stroke Diesel 4HP Air Cooled

Bore & Stroke: 70 x 55mm

Shaft diameter: 3/4" 19mm

Shaft length: 57 mm

Displacement: 246 cc

Maximum Power Output: 4HP

Fuel Tank Capacity: 2.5L

Engine Speed: 3000rpm - 3600rpm

Starter Type:      Electric Start

Filter Type:          Paper-Foam Ext

Fuel / Capacity: Diesel / 2.5LT

Shaft Size:            Parallel Keyed Shaft 19mm 3/4" with Keyway

Weight:                 32KG

 Dimensions:       42 x 36 x 46 cm (Shaft length 36cm to end of shaft)

 Shipping Dimensions:     42 x 36 x 46 cm-m
