50 Ton and 25 Ton Short Body Multi Stage Air Hydraulic Jack
Estimate only. Final freight options are confirmed in checkout.
LHTJM5025SB
SHORT BODY M-STAGE JACK 50/25T
Description:

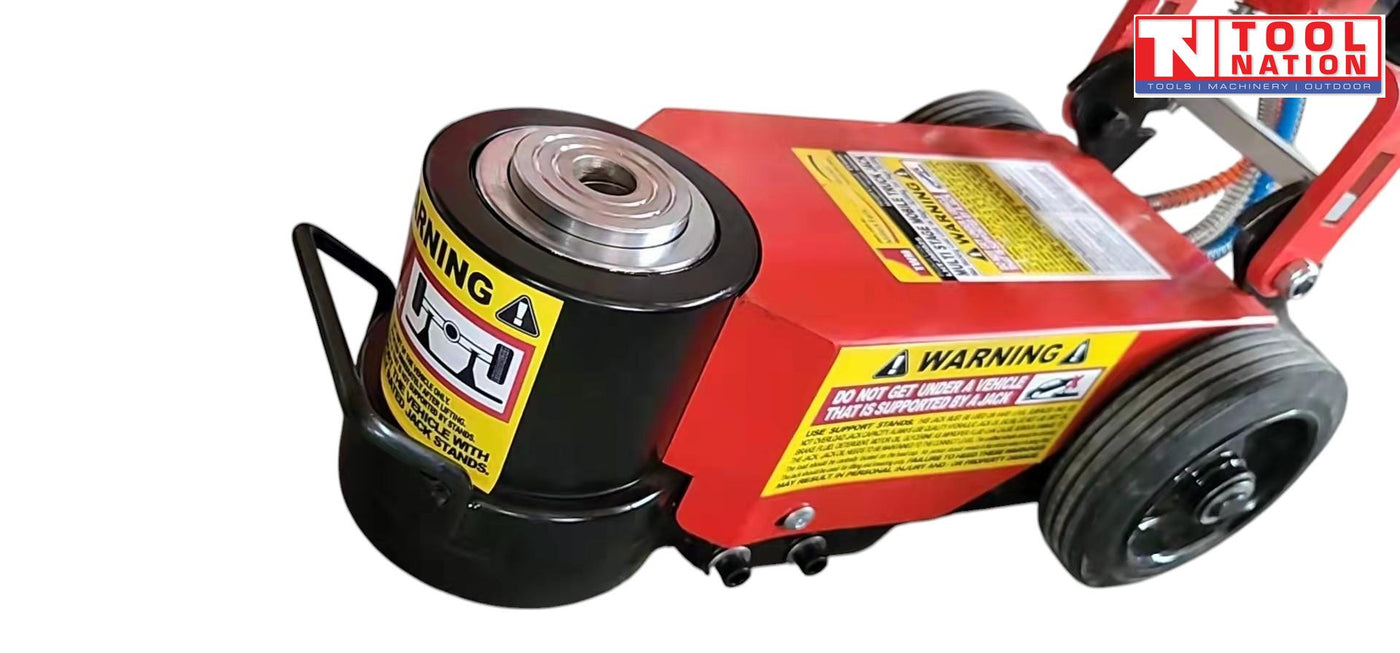

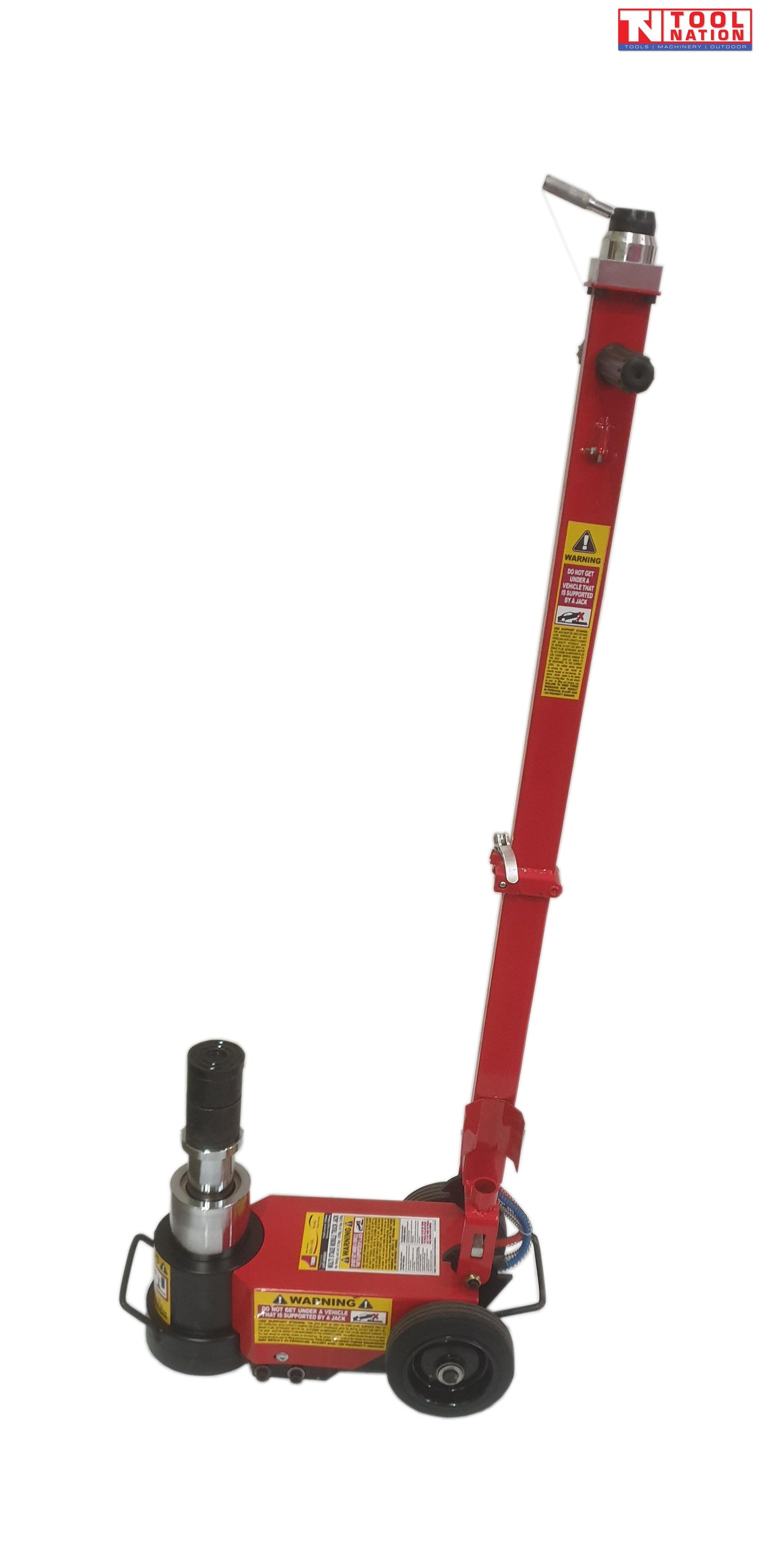

The LHTJM5025SB - SHORT BODY M-STAGE JACK 50/25T is a powerful air hydraulic jack designed for heavy-duty lifting in confined spaces. With an impressive lifting capacity of 50,000 kg (50T) in the first stage and 25,000 kg (25T) in the second stage, this multi-stage jack is ideal for use in tight or restricted environments where full-size jacks may not fit, such as truck, bus, and industrial machinery maintenance.
This short-body design ensures that the jack retains its high performance while being compact enough to be used in challenging, space-limited settings. The LHTJM5025SB operates at an air pressure range of 0.75-0.85 MPa, ensuring smooth and quick lifting with a stroke speed of 4.74 m/s. With a 160 mm stroke, it provides significant lifting power, while the minimum ram height of 170 mm and maximum ram height of 330 mm offer flexibility to work with various vehicle heights.
The jack is equipped with 38 mm and 55 mm extension pins, enabling additional adaptability to suit different lifting needs. Additionally, the LHTJM5025SB operates much more quietly than traditional truck jacks, making it a preferable choice for noise-sensitive work environments, such as workshops and garages.
Despite its powerful lifting capabilities, the LHTJM5025SB remains lightweight and portable, weighing 40 kg, with a gross weight of 45 kg. It also has compact packaging dimensions of 71 x 36 x 36 cm, making it easy to store and transport.
The LHTJM5025SB - SHORT BODY M-STAGE JACK 50/25T is the perfect solution for professional workshops, industrial environments, and heavy-duty vehicle repairs where space is limited but powerful and efficient lifting is required. Its quiet operation, high lifting capacity, and compact design make it an essential tool for lifting trucks, buses, and large equipment in confined spaces.
The LHTJM5025SB - SHORT BODY M-STAGE JACK 50/25T combines heavy-duty performance with a compact design, making it ideal for lifting large vehicles and machinery in spaces where traditional jacks cannot be used. Its quiet operation and versatile lifting range make it the go-to choice for demanding environments.
Key Features:
First Stage Capacity: Lifts up to 50,000 kg (50T), ideal for lifting large trucks, buses, and industrial machinery.
Second Stage Capacity: Lifts up to 25,000 kg (25T), offering versatility for a range of lifting applications.
Compact, Short-Body Design: Perfect for use in confined spaces where standard jacks may not fit.
Hydraulic Stroke: 160 mm stroke ensures efficient lifting and lowering.
Lifting Range: Min ram height: 170 mm, Max ram height: 330 mm, offering adjustable lifting options for vehicles with varying ground clearance.

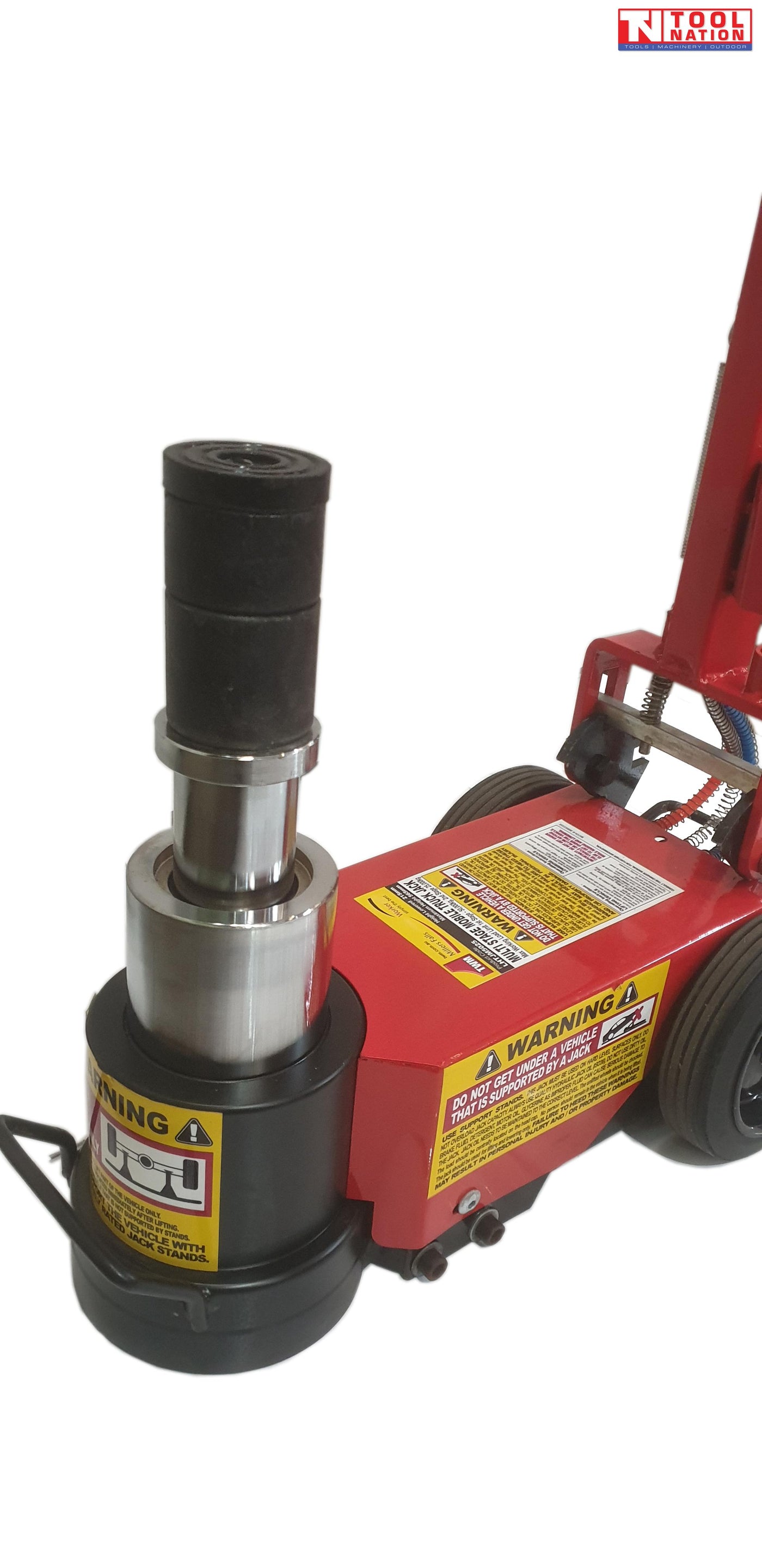

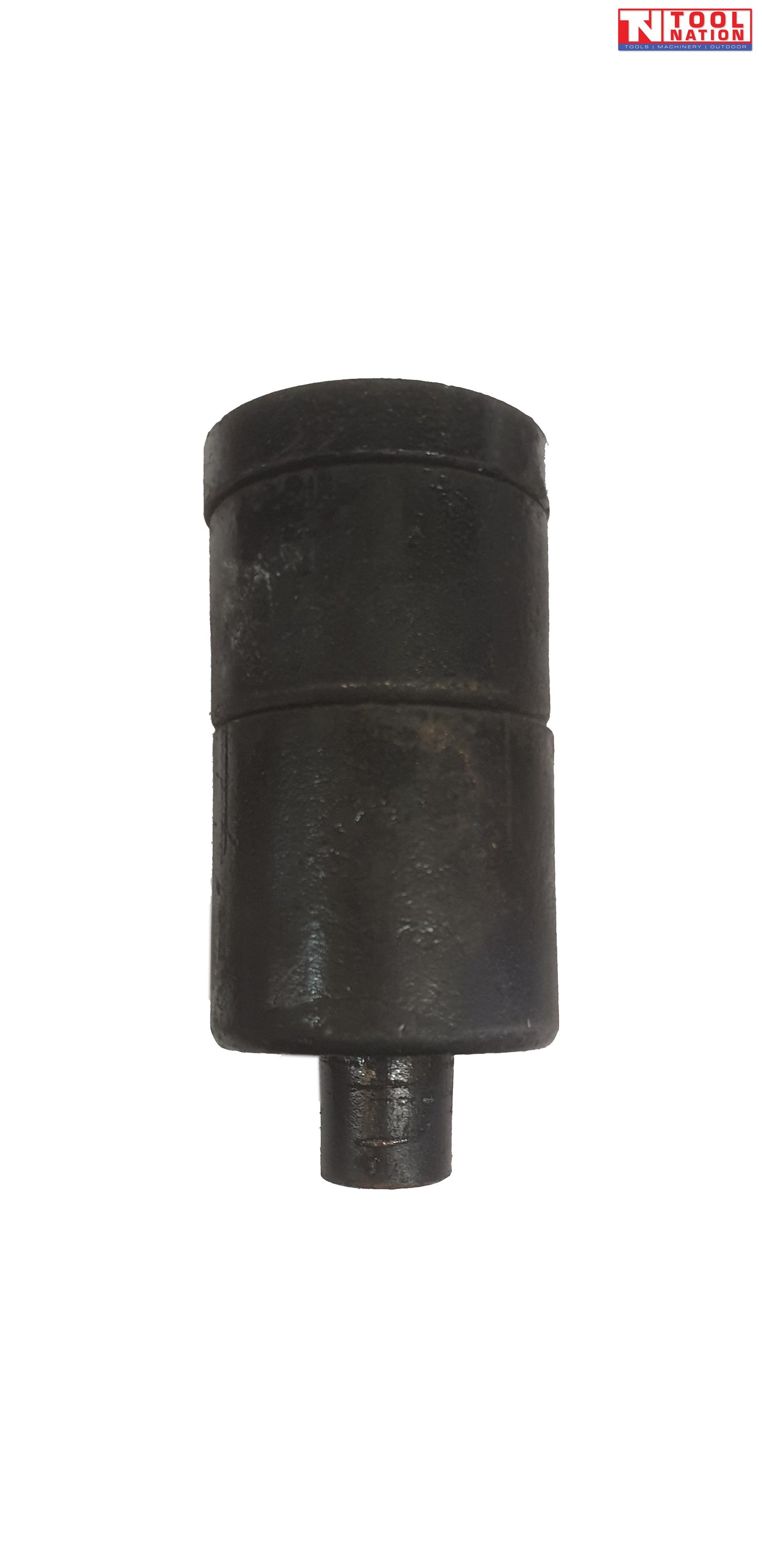

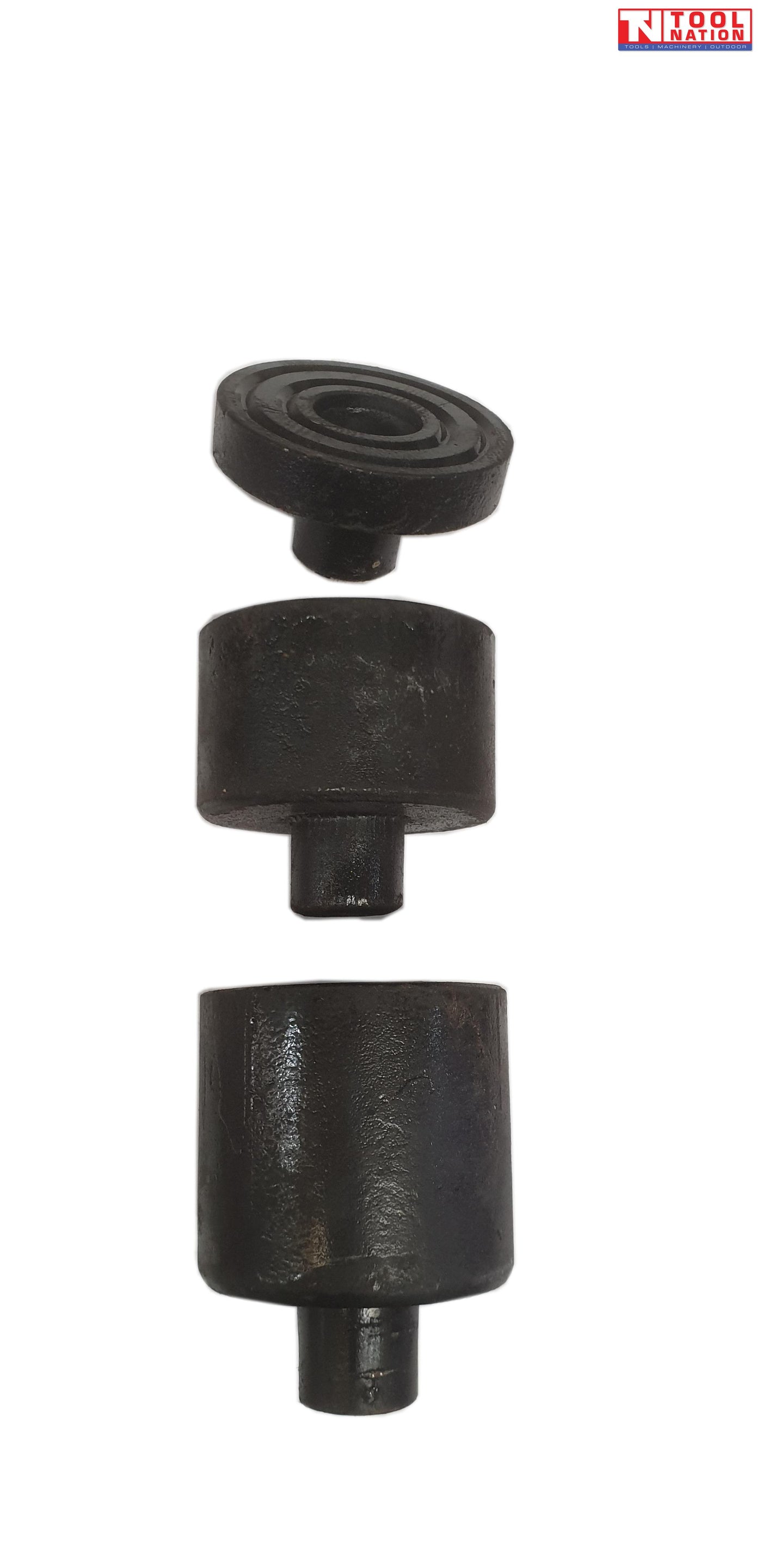

Extension Pins: Includes 38 mm and 55 mm extension pins for adaptable lifting heights.
Fast Stroke Speed: Stroke speed of 4.74 m/s ensures quick lifting and lowering operations.
Operating Air Pressure: 0.75-0.85 MPa (110-125 psi), allowing for fast and efficient lifting with minimal manual effort.
Quieter Operation: The LHTJM5025SB operates more quietly than conventional truck jacks, reducing noise in busy workshop environments.
Portable & Lightweight: Weighs 40 kg and has packing dimensions of 71 x 36 x 36 cm, making it easy to transport and store.
Specifications:
Model: LHTJM5025SB
First Stage Capacity: 50,000 kg (50T)
Second Stage Capacity: 25,000 kg (25T)
Stroke: 160 mm
Minimum Ram Height: 170 mm
Maximum Ram Height: 330 mm
Air Pressure: 0.75-0.85 MPa (110-125 psi)
Extension Pins: 38 mm and 55 mm
Stroke Speed: 4.74 m/s
Nett Weight: 40 kg
Gross Weight: 45 kg
Packing Size: 71 x 36 x 36 cm
