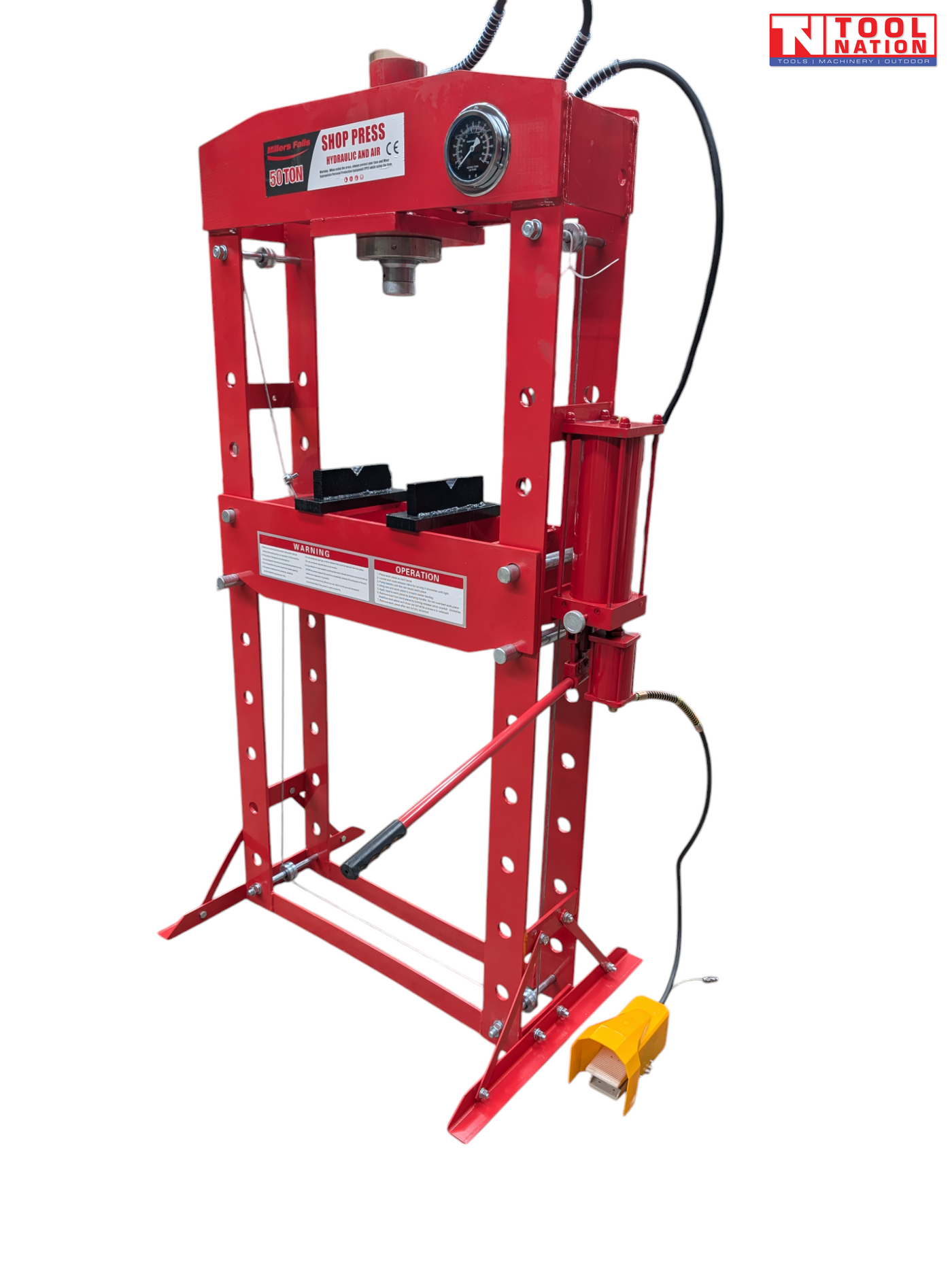

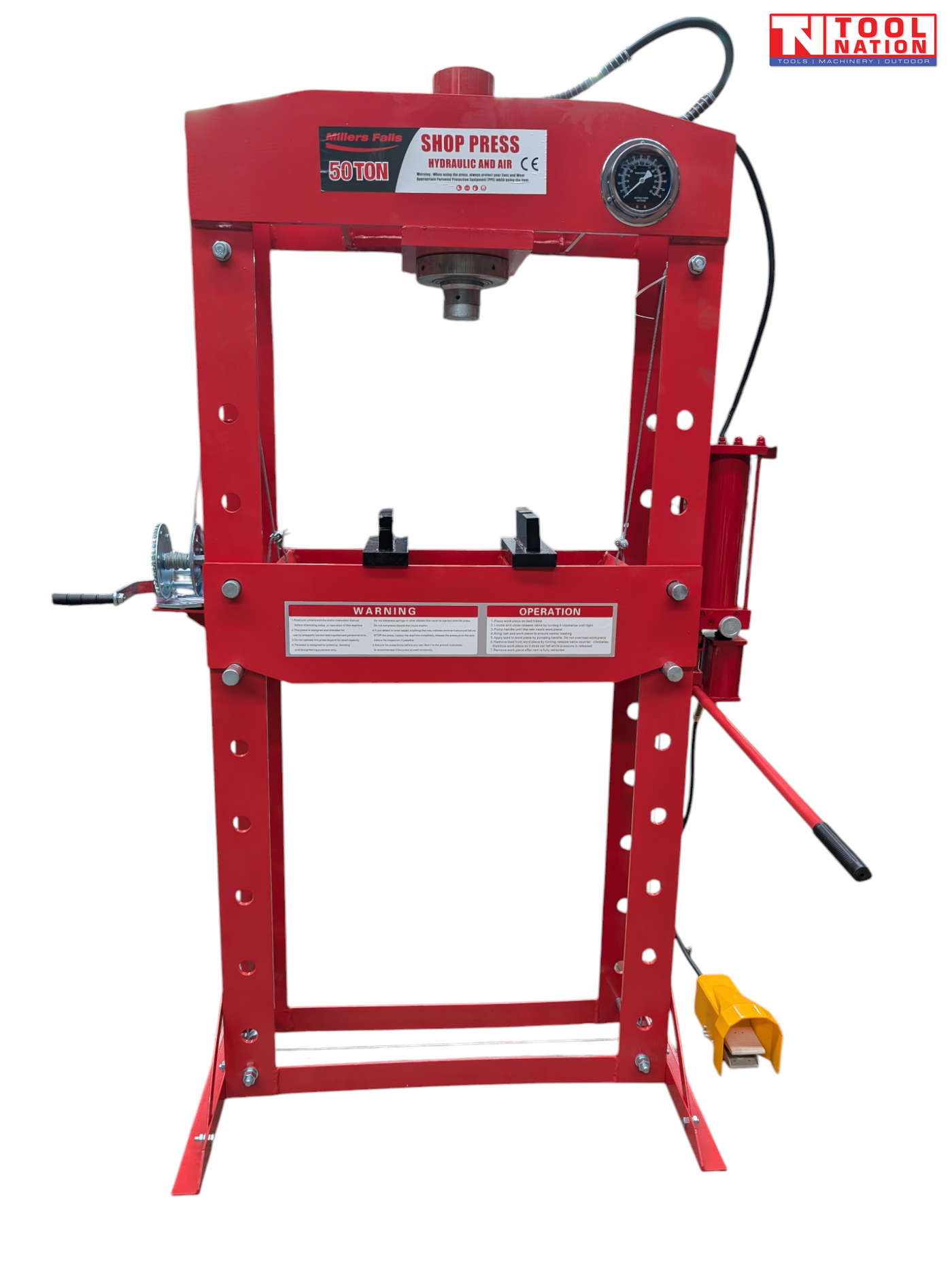

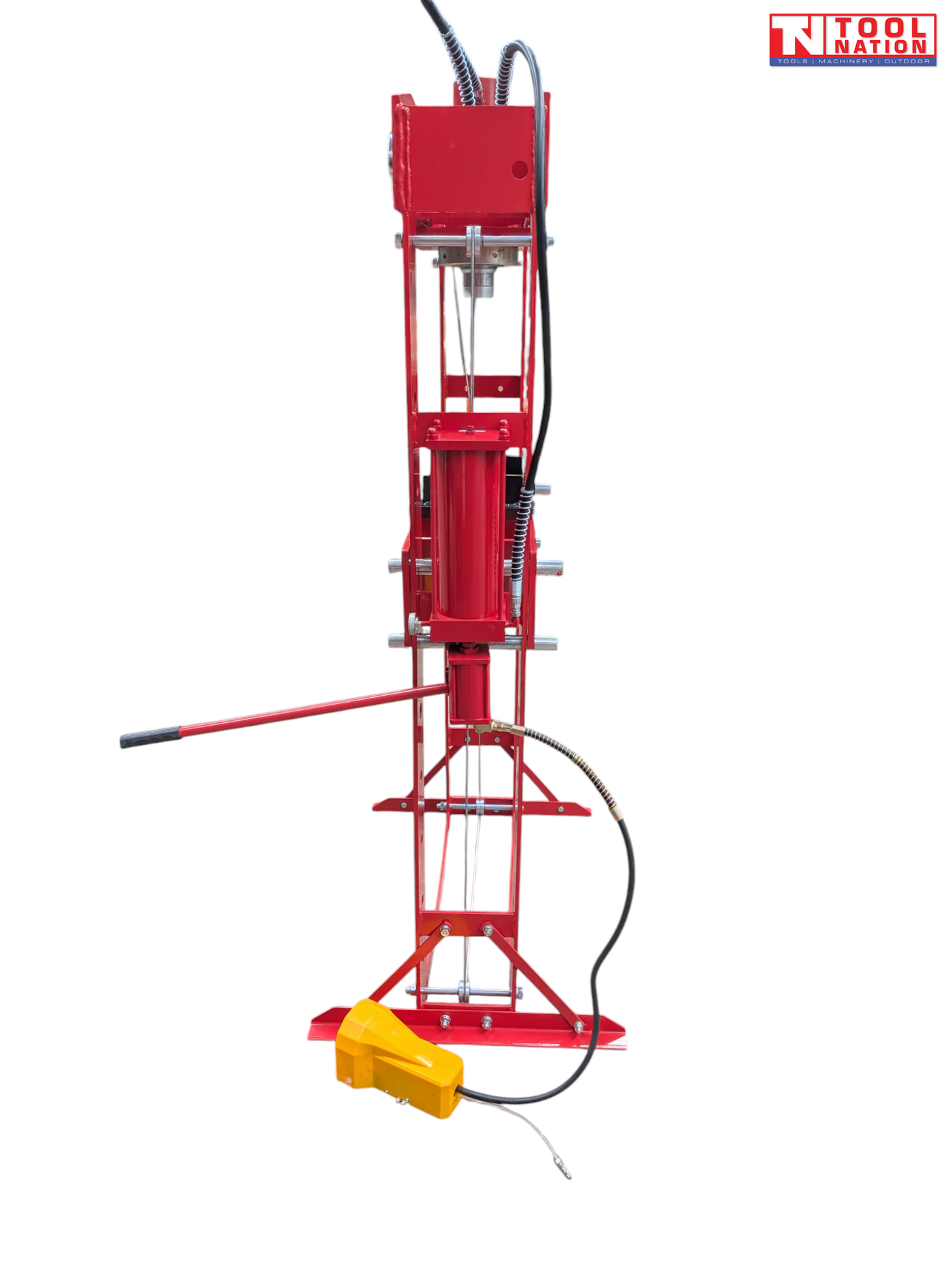

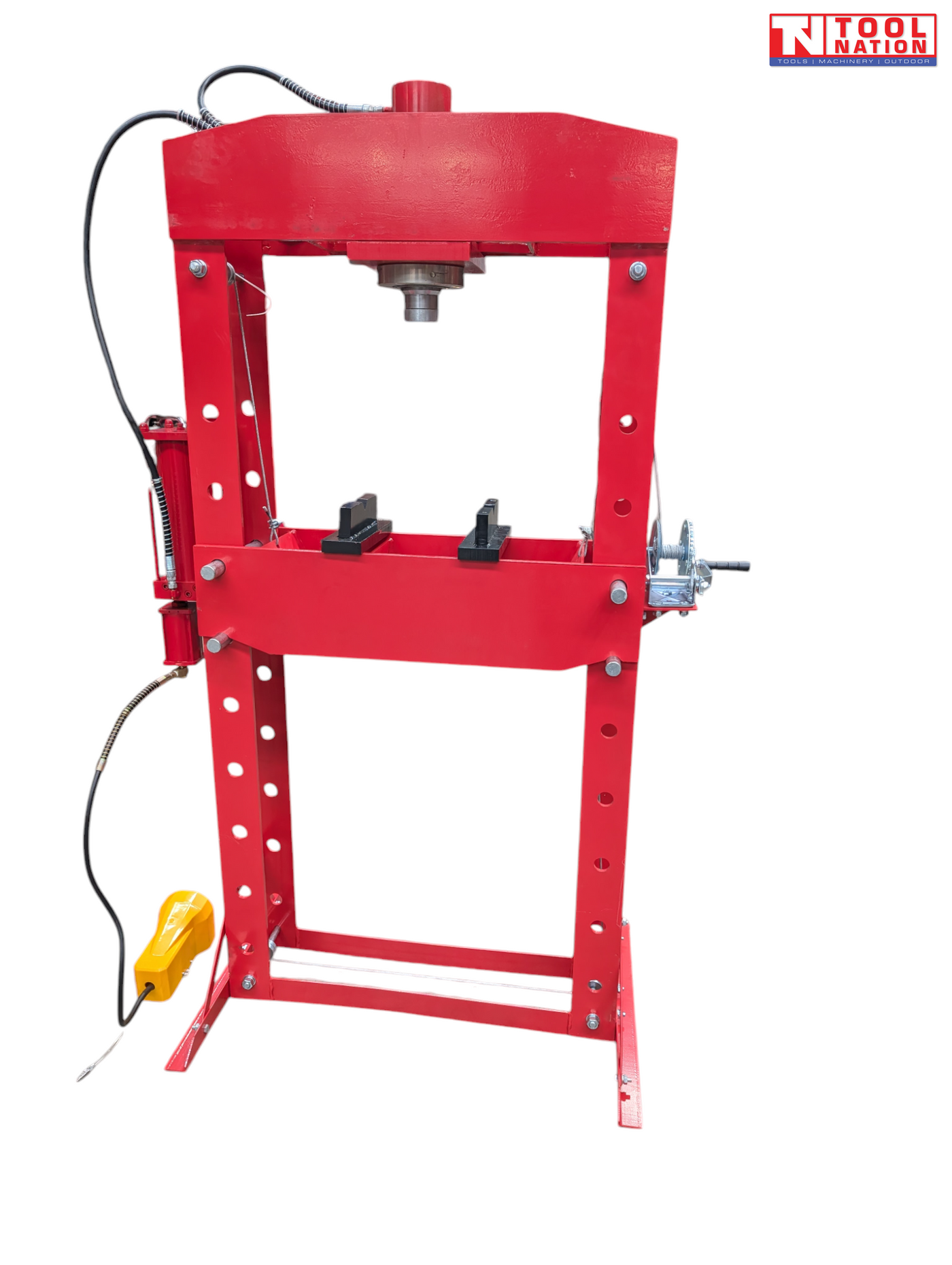

50 Ton Air Hydraulic Shop Press with Sliding Head

PRESALR50T

The PRESALR50T 50 Ton Air Hydraulic Shop Press by Millers Falls is a high-performance, industrial-grade tool designed for demanding applications in professional workshops, automotive repair, metalworking, and DIY projects. This robust press is engineered to make light work of tasks such as removing and replacing bearings, bushes, ball joints, and other challenging metalworking applications, all while allowing you to keep both hands free for the task at hand.

With a 50,000kg (50 tons) lifting capacity, this press provides exceptional force to handle even the most rusted or tightly-fitted components. Whether you are working on heavy-duty automotive repairs or industrial metal fabrication, the PRESALR50T ensures you get the job done with ease and efficiency.

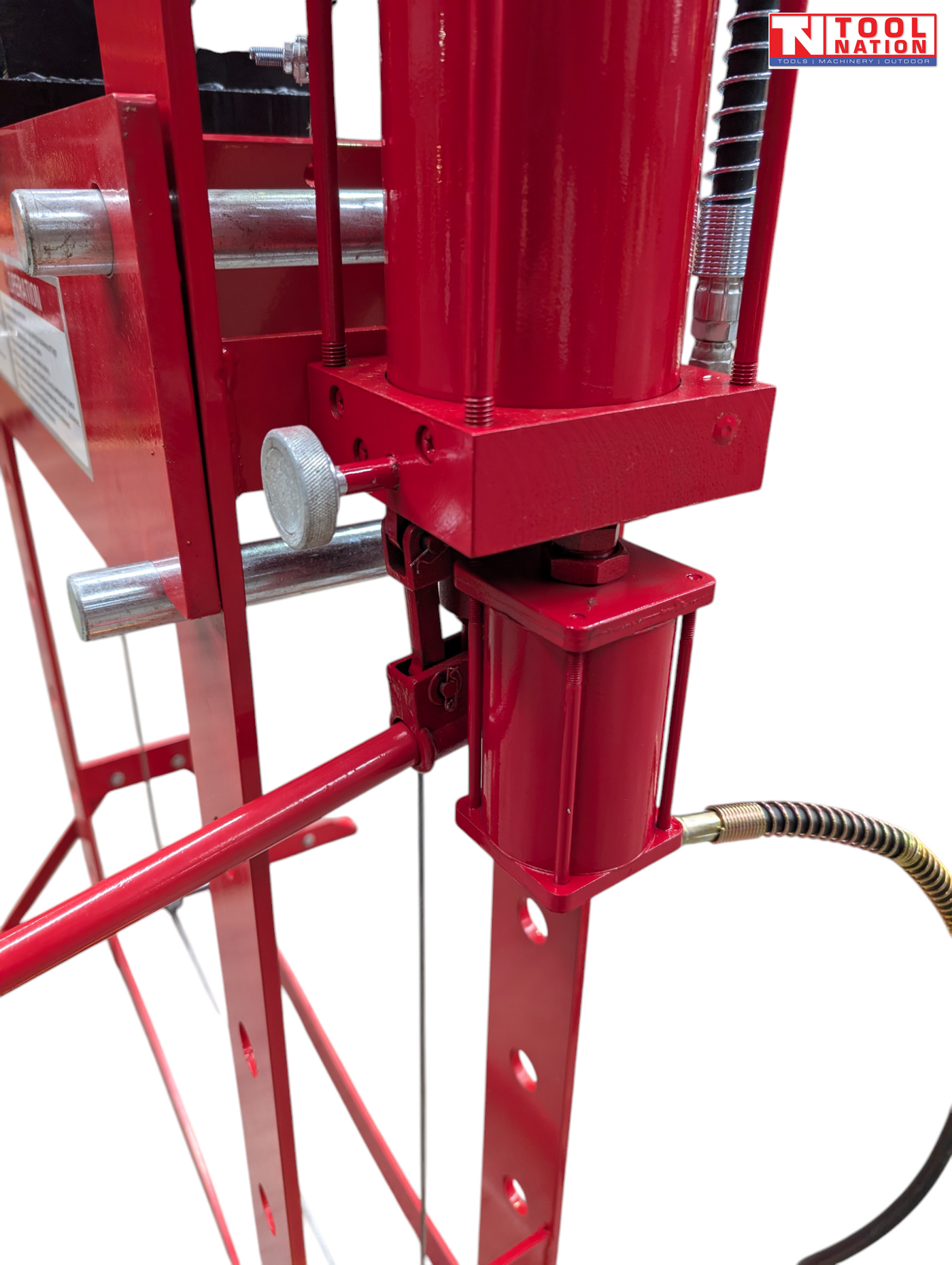

The dual air hydraulic/manual operation system allows you to select between the speed and power of the air-operated ram or the slower, more controlled precision of the hydraulic press, making it adaptable for various types of jobs. The sliding head design enables easy adjustments, allowing for smoother movement and more accurate positioning of workpieces.

For added convenience and safety, the foot-operated valve ensures hands-free operation, allowing the operator to focus on positioning and guiding materials during the pressing process, improving both efficiency and safety. The adjustable cross member allows for customizable setups to maximize comfort and operational efficiency, making the press easy to use for a wide range of tasks.

The PRESALR50T also features a generous working range of 75mm to 1125mm, providing ample flexibility for different sizes of components. Its bed width of 700mm ensures it can accommodate larger workpieces, while its stroke of 200mm provides the necessary space to complete a variety of pressing applications.

Features:

• Lifting Capacity: 50,000kg (50 tons), ideal for heavy-duty pressing tasks, including dealing with rusted or tightly-fit components.

• Dual Operation: Choose between the speed of the air hydraulic system and the precision of the manual operation.

• Working Range: Adjustable from 75mm to 1125mm, suitable for various sizes of workpieces.

• Sliding Head: Ensures smooth, easy adjustments for better positioning and greater accuracy during pressing.

• Air Pressure: Operates within 0.75 – 0.85 Mpa, suitable for a wide range of industrial air systems.

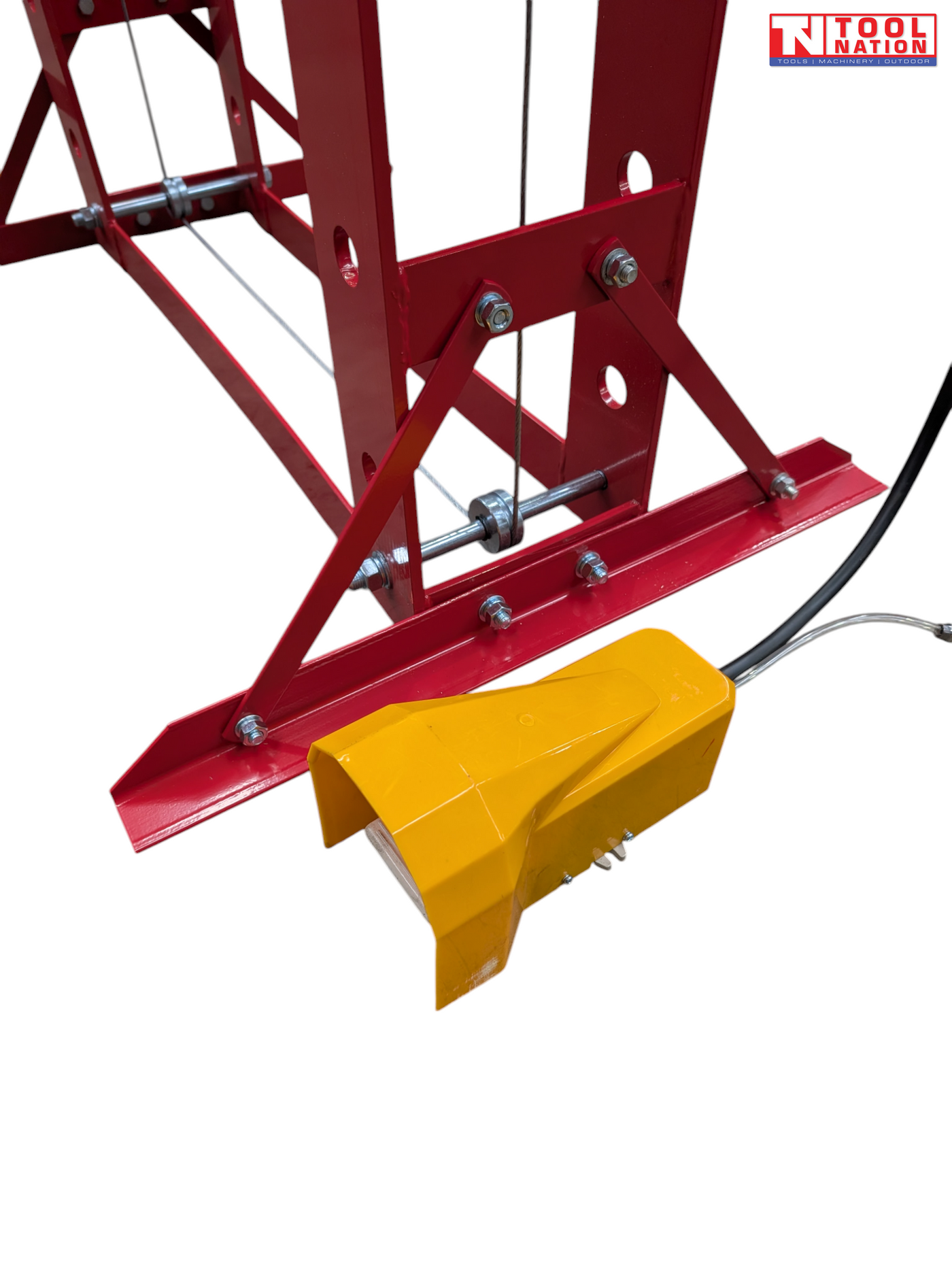

• Foot Valve: Allows for hands-free operation, improving safety and increasing efficiency.

• Adjustable Cross Member: Customizable setup for maximum comfort and efficiency.

• Stroke: 200mm, providing ample space for larger workpieces.

• Bed Width: 700mm, providing the necessary room for accommodating a wide range of materials.

Specifications:

• Capacity: 50,000kg (50 tons)

• Working Range: 75mm – 1125mm

• Stroke: 200mm

• Air Pressure: 0.75 – 0.85 Mpa

• Air Inlet Fitting: ¼ inch NPT

• Bed Width: 700mm

• Shipping Dimensions: 221cm x 110cm x 207cm

• Net Weight: 248kg

• Shipping Weight: 268kg
