56 kVA Diesel Generator 415V FAW Powered

GSD60FSC

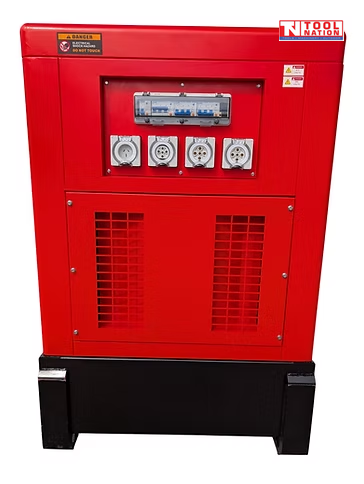

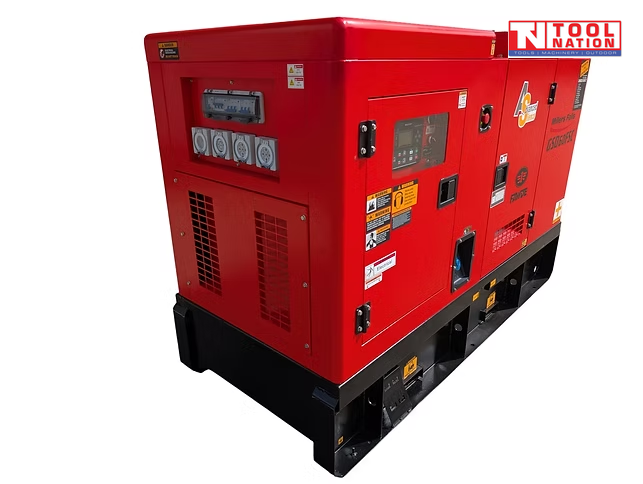

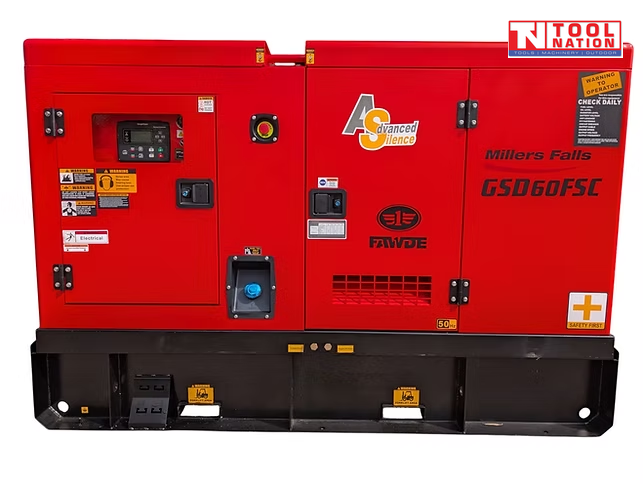

Millers Falls 56 kVA Diesel Generator 415V – FAW Powered

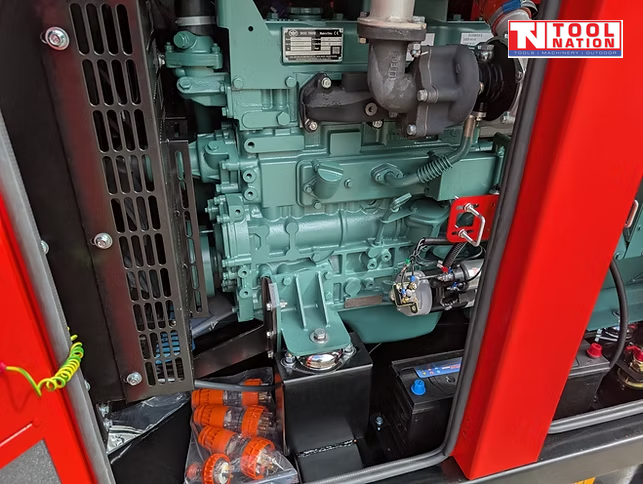

This Millers Falls 415V Three phase generator is powered by the famous and reliable FAW 4DX22-65D Chinese Diesel engine. A 4 Cylinder 3.86 Litre Turbo Charged Diesel Engine partnered with a high-quality OEM Stamford Style 4 Pole brushless alternator; this generator offers a high-performance cost-effective solution to your power generation requirements.

The Millers Falls 56kVA three phase 4-pole FAW powered generator is perfectly suited for commercial or industrial applications as well as backup power for homes or offices. It offers 50 kVA power at prime load and together with its bunded 219 litre fuel tank can provide a consistent output of up to 24 hours at 75% Prime Load. As a standby generator it offers a 56kVA of silenced power operating at just 67 dBA at 7 meters sound level.

Built to meet highest Australian standards the Millers Falls GSD60FSC FAW powered generator features: earth leakage protection, quality RCBO’s- IP67 protected, approved IP66 outlets and industry leading safety features plus RCBO protected hardwire terminals.

With its 1500 RPM FAW 4-cylinder turbo charged industrial engine Stamford Style OEM alternator contained in a robust sound deadened and heat insulated lockable cabinet the Millers Falls GSD60FSC is a quality generator that you can always depend on. The oversize 50-degree radiator allow the generator to keep preforming even in Australia’s extreme temperatures.

The Millers Falls range of generators are known for producing a stable and consistent output with industry-leading reliability.

Features:

• Famous & Reliable FAW Turbo Charged 4 Cylinder Diesel Engine.

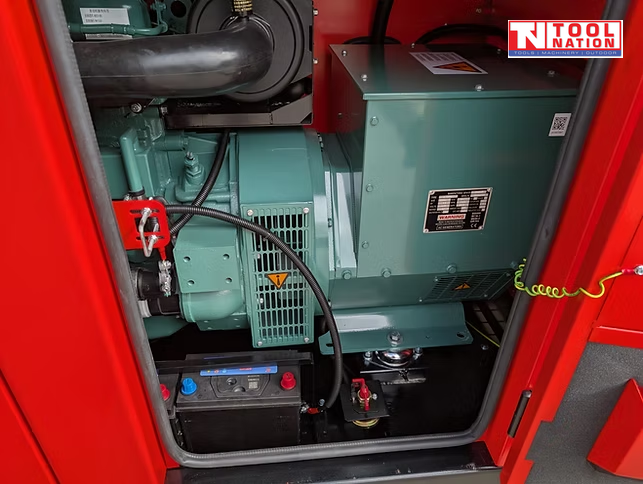

• Stamford Style OEM 4 Pole Brushless Alternator
• Robust Design and built silenced canopy designed for outdoor use.
• Double Bunded Fuel Tank
• Drain Plugs Fitted: Water, Oil, Diesel
• Fork Slippers and Lifting Hooks for ease of manoeuvrability
• 24 hr Fuel Tank
• 50°C temperature rating, oversize radiator allows for extreme temperature conditions.
• 24 hours continuous stable power at 75% prime load. The low 1500 RPM engine generates a more stable operation.
• Silenced Operation 67 dBA at 7 metres.
• Fuel-efficient 12.14 Litres/Hour at 75% prime load.
• Oil Pressure Shutdown, Over Temperature shutdown,
• Interior Cabinet Light with switch
• Emergency E Stop

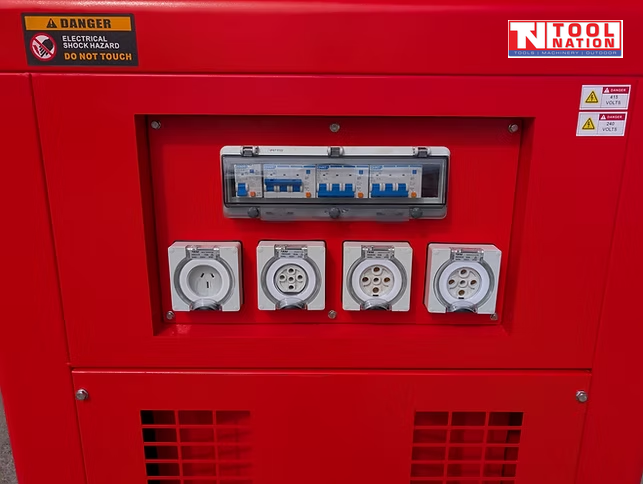

• Hardwire Terminals with RCBO additional protective cover.
• Site Safe Lockable Canopy
• Australian Compliant Wiring and M.E.N link

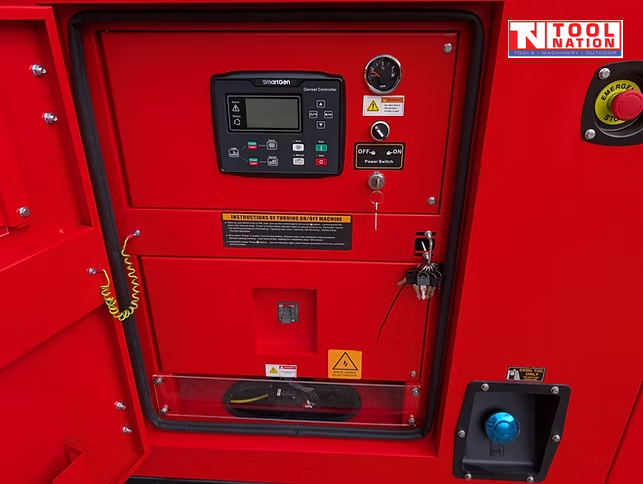

• Easy to use Smartgen Controller
• 2 Wire Remote Start Capable
• ATS Function Connection Socket
• Remote Start 4G Function Capable
• Shunt Relay Auto Stop
• Australian Safety Standards compliant.

Specifications:

Options: Automatic Start Systems

GSM -G4

ATS (Mains Failure Auto Transfer Switch)

2 Wire Remote Start (Socket Fitted)

Weight: 1140 kg

Dimensions: 225 L x 98 W x 130 H cm
