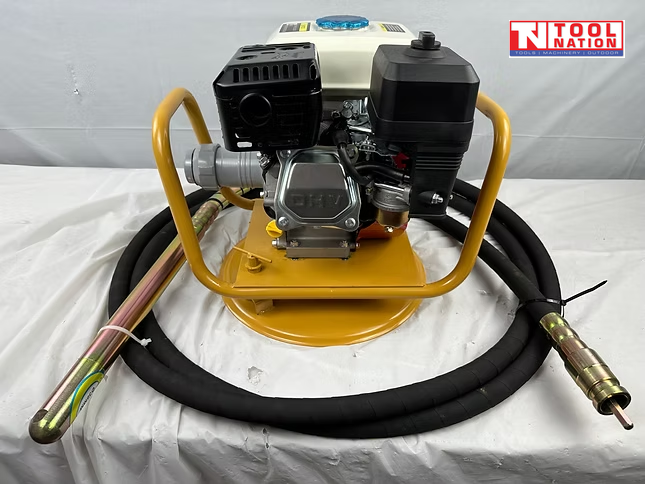

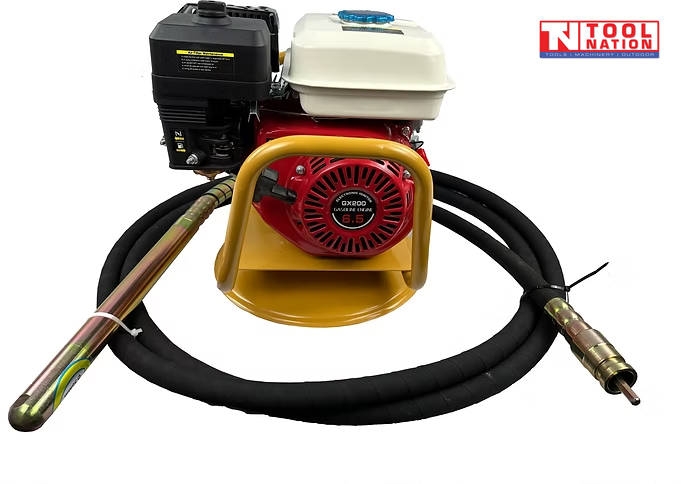

6.5HP Petrol Concrete Vibrator 38mm x 6m

CONVIB Concrete Vibrator

6.5HP Petrol Powered Concrete Vibrator 38mm x 6m

Description:

The Miller Falls CONVIB 6.5hp concrete vibrator is a powerful tool used in the construction industry for consolidating and compacting concrete, providing sufficient power to vibrate and agitate concrete mixture.

Handling demanding tasks and penetrate through stiff or high-slump concrete mixes.

Insertion of the hose into wet concrete causes the concrete to vibrate and release trapped air, eliminating voids and improve the overall quality and durability of the concrete.

Flexible hose:

The TWM CONVIB is fitted with a flexible, lengthy 6m hose, allowing for sufficient reach in various applications.

Swivel Cradle:

The Millers Falls engine is fitted with a swivel cradle to allow the engine to rotate and follow the pump cable, the cradle rotation can also be locked in position as required. The Motor cradle has built in handles for easy transport and manoeuvrability on job sites.

Universal Coupling:

The coupling connection from hose to pump is a common Japanese style, incorporating the a 10mm hex connection from inner cable to engine and a quick release twist connector holding the outer cable in place.

Engine:

Millers Falls engines are known for their durability and longevity, with robust construction.

Vibrator/Poker Specs:

• Diameter: 38mm
• Length: 6m
• Steel Vibrator head

Engine Specs:

• Air-cooled
• OHV valve system
• Recoil starting system
• Single cylinder
• Cast iron casing improves lubrication and increases engine life
• Automatic alarm and stop at the low oil level
• Shaft Diameter: 19mm
• Fuel Tank Capacity: 3.6 Litres
• Oil Capacity: 0.6 Litres
• Speed (RPM): 3600
• Compression ratio: 8.5:1
• Displacement (cc): 196
• Noise: 70dBA

Shipping weight (Kg): 35

Shipping Size (L x W x H)(cm): 78 x 66 x 50
