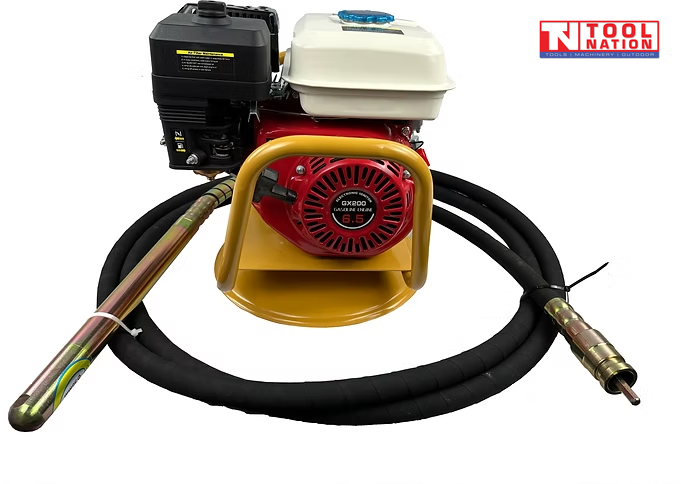

6.5HP Petrol Engine and Cradle for Concrete Vibrator
Estimate only. Final freight options are confirmed in checkout.
CONVIBENG
6.5HP Petrol Engine and Cradle Only Suit Concrete Vibrator
Description:
The Miller Falls CONVIB 6.5hp concrete vibrator is a powerful tool used in the construction industry for consolidating and compacting concrete, providing sufficient power to vibrate and agitate concrete mixture.
Handling demanding tasks and penetrate through stiff or high-slump concrete mixes.
Engine:
Millers Falls engines are known for their durability and longevity, with robust construction.

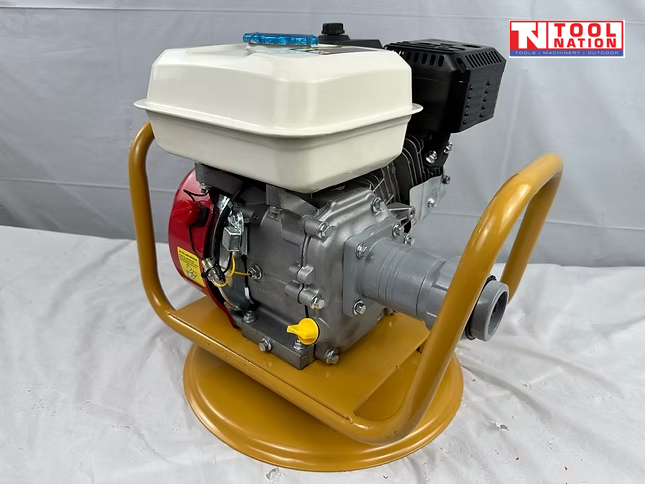

Swivel Cradle:
The Millers Falls engine is fitted with a swivel cradle to allow the engine to rotate and follow the pump cable, the cradle rotation can also be locked in position as required. The Motor cradle has built in handles for easy transport and manoeuvrability on job sites.
Universal Coupling:
The coupling connection from hose to pump is a common Japanese style, incorporating the a 10mm hex connection from cable to engine and a quick release twist connector holding the cable in place.
Features:
- Air-cooled
- OHV valve system
- Recoil starting system
- Single cylinder
- Cast iron casing improves lubrication and increases engine life
- Automatic alarm and stop at the low oil level
Engine Specs:
Shaft Diameter: 19mm
Fuel Tank Capacity: 3.6 Litres
Oil Capacity: 0.6 Litres
Speed (RPM): 3600
Compression ratio: 8.5:1
Displacement (cc): 196
Noise: 70dBA
Shipping weight (Kg): 23
Shipping Size (L x W x H)(cm): 51 x 39 x 44
