6.785 kVA Diesel Open Frame Generator with ATS and Two Wire Remote Start

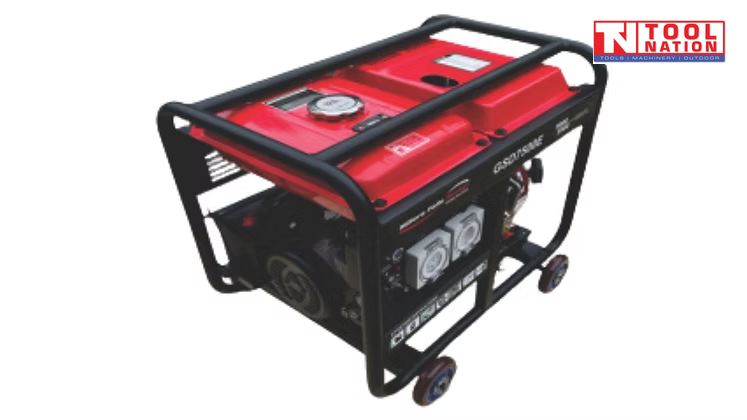

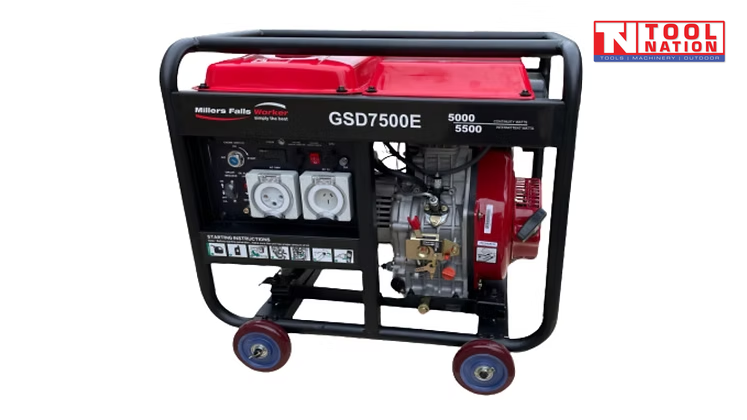

GSD7500E Diesel – Open Frame Generator
Superior Quality – Unprecedented Functionality – Exceptional Value
The GSD7500E delivers dependable, mid-range power for small to mid-size properties and a wide variety of tools and machinery. It’s built for versatility and site readiness, with safety-first electrics and easy starting.
ATS and Two-Wire Remote Start support let you integrate with an optional ATS box to auto-start during mains outages and stop on restoration, or trigger charging for off-grid batteries via a controller—hands-free reliability when you need it most.
Supplied IP66 outlets include 1 × 32 A / 240 V and 1 × 15 A / 240 V, plus a matching 32 A IP66 plug. An integrated RCD (earth leakage safety switch) boosts protection for construction and mining sites. A 12 V DC @ 8 A output is included for battery charging.
Features
- 12-Volt DC circuit
- 15 A 240 V IP66 socket
- 32 A 240 V IP66 plug (supplied)
- 32 A 240 V IP66 socket
- ATS auto transfer switch connection
- AVR automatic voltage regulator
- Digital hour, hertz & volt meter
- Heavy-duty copper alternator
- Electric start
- Low noise emission
- Never-flat wheels
- Oil alert light
- RCD safety switch
- Two-wire remote start
Specifications
| Model Number | GSD7500E | AMPS | 20.8 |
| Volts | 240 | Frequency | 50 Hz |
| Engine Displacement | 418 cc | THD | < 8% |
| Max Power (kVA) | 6.785 | Power Factor | 0.8 |
| Rated Power (kVA) | 6.25 | Phase | Single |
| Max Power (kW) | 5.5 | RPM | 3000 |
| Rated Power (kW) | 5.0 | Fuel Capacity | 18 L |
| Noise (dBA) | 82 | Run Time (50%–100% load) | 9.0 – 6.5 hrs |
| Dimensions (L × W × H / cm) | 94 × 58 × 89 | Weight | 113 kg |
