6 Inch PTO Wood Chipper 150mm Hydraulic Power Feed 40-85HP

FIBX62R

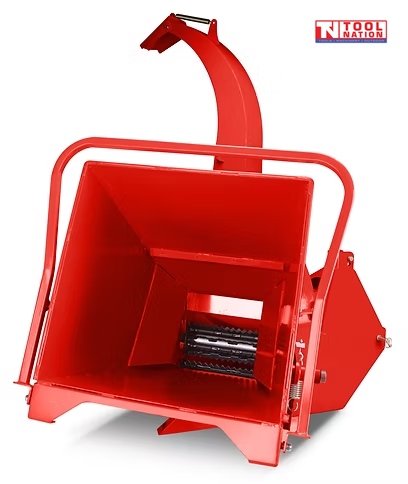

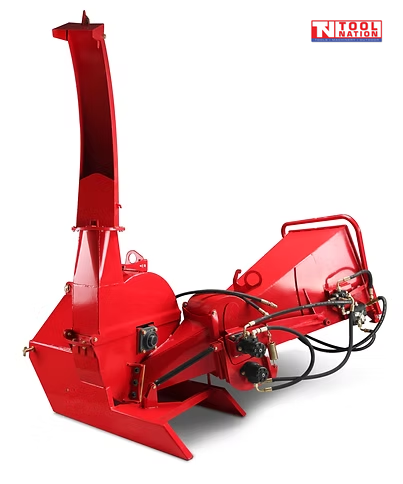

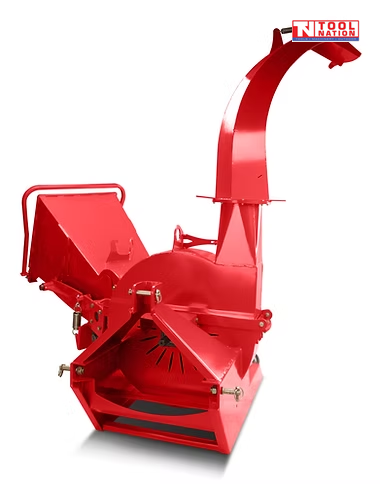

Wood Chipper 150mm 6” Fabricated Steel • Hydraulic Power Feed • 3-Point Linkage (Tractor)

Description:

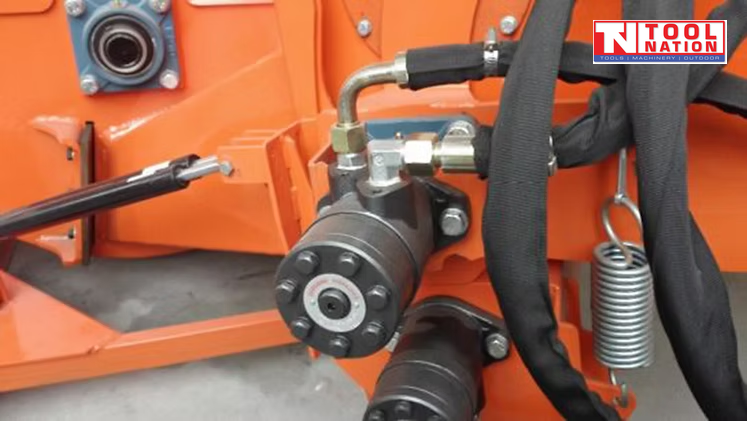

The PTO wood chipper efficiently transfers power from the tractor’s engine to the chipper and mounts to a standard three-point lift assembly—no separate trailer required. It features a hydraulic power-feeding system with twin feed rollers, each driven by its own hydraulic motor powered by the tractor’s auxiliary hydraulics. Once material enters the feed hopper, the rollers pull it through for chipping.

The 6" 3-point PTO chipper handles up to 150mm diameter wood. It provides adjustable settings for blades, chute, and lift points, with reversible blades for extended service life. A safety bar lets you disengage the feed rollers. The rotor is driven directly from the tractor via the supplied Shear Pin PTO shaft for smooth power delivery. Compatible with tractors from 40–85 HP (auxiliary hydraulic outlets required).

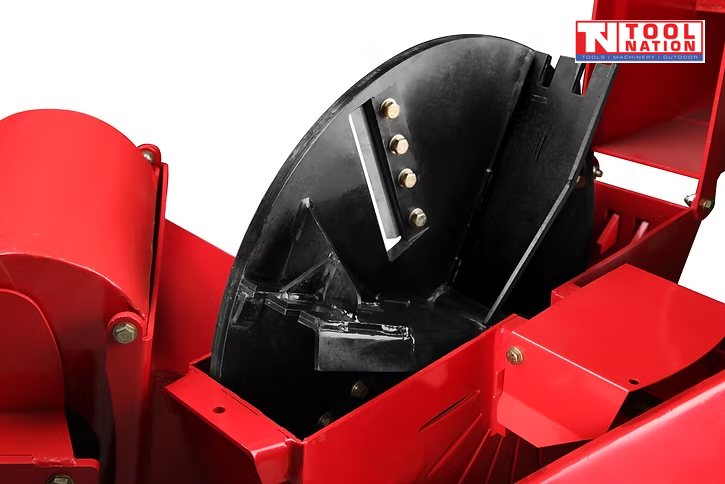

This heavy-duty fabricated steel, power-fed model uses a large-diameter rotor for higher tip speed and improved chipping action. Precision-cut, hardened tool-steel reversible blades maintain a sharp edge for consistent performance. Blower paddles with integrated twig breakers increase output force, create smaller, more uniform chips, and propel them further. A double-adjustable exit chute swivels 360° with a top deflector to control throw distance.

Note: Pine and other sappy timbers can build up resin on cutter teeth. Running some dry hardwood at the end of use helps clear residue and prevent clogging.

Features:

• Twin feed rollers driven by two hydraulic motors
• Fabricated steel construction
• Reversible knives
• Adjustable bed blade
• Safety bar to disengage feed rollers
• Rotating exit chute
• Shear Pin PTO shaft included
• 3-point linkage connection
• Large-diameter rotor
• Uses tractor hydraulics to drive feed motors
• Easily accessible anvil and blades for quick maintenance

Specifications:

• Chipper Capacity: 150mm / 6"
• Dimensions (mm): 1270 × 1320 × 1880
• Chipper Housing Opening: 165 × 255mm
• Rotor Size: 760mm
• Number of Rotor Knives: 4
• Rotor Weight: 82kg
• Feeding System: Twin Hydraulic Motor Power Feed
• Hopper Opening: 635 × 635mm
• Discharge Hood Rotation: 360 degrees
• Discharge Hood Height: 1880mm
• Rated RPM: 540–1000
• Power Required (HP): 40–85
• Shipping Dimensions (mm): 1250 × 1000 × 2500
• Weight: 510kg
• Shipping Weight: 540kg
