6 Inch PTO Wood Chipper 150mm Gravity Self Feed 40-85HP

FIBX62S

Wood Chipper 150mm 6” • Fabricated Steel • 3-Point Linkage (Tractor)

Description:

The PTO wood chipper efficiently transfers power from the tractor’s engine to the chipper and mounts to a standard three-point lift assembly—no trailer needed. It uses a self-feeding system: once material is placed in the hopper, the chipper blades pull it through.

This 6" 3-point PTO chipper handles up to 150mm diameter wood. It provides multiple adjustments for blades, chute, and lift points, and the reversible blades extend service life. The rotor is driven directly from the tractor via the supplied Shear Pin PTO shaft for smooth power delivery. Compatible with tractors from 40–85 HP.

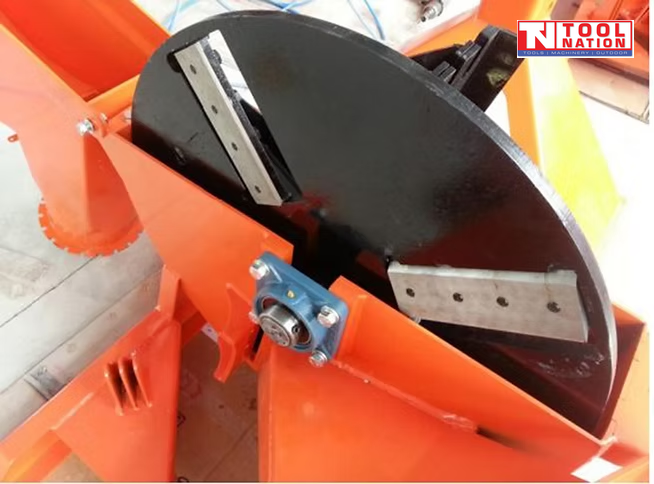

A large-diameter rotor increases tip speed for improved chipping, while heavy-gauge fabricated steel maintains momentum through 150mm trunks. Precision-cut, hardened tool-steel reversible blades keep a sharp edge. Blower paddles with integrated twig breakers boost discharge force, produce smaller, more consistent chips, and throw them farther. A double-adjustable exit chute swivels 360° with a top deflector to control throw distance.

Note: Pine and other sappy timbers can leave resin on cutter teeth. Run some dry hardwood at the end of use to clear residue and prevent clogging.

Features:

• Fabricated steel construction
• Reversible knives
• Adjustable bed blade
• Rotating exit chute
• Shear Pin PTO shaft included
• 3-point linkage connection
• Large diameter rotor
• Easily accessible anvil and blades for quick, simple maintenance

Specifications:

• Chipper Capacity: 150mm / 6"
• Dimensions (mm): 1270 × 1320 × 1880
• Chipper Housing Opening: 165 × 255mm
• Rotor Size: 760mm
• Number of Rotor Knives: 4
• Rotor Weight: 82kg
• Feeding System: Gravity Self Feed
• Hopper Opening: 635 × 635mm
• Discharge Hood Rotation: 360 degrees
• Discharge Hood Height: 1880mm
• Rated RPM: 540–1000
• Power Required (HP): 40–85
• Weight: 350kg
