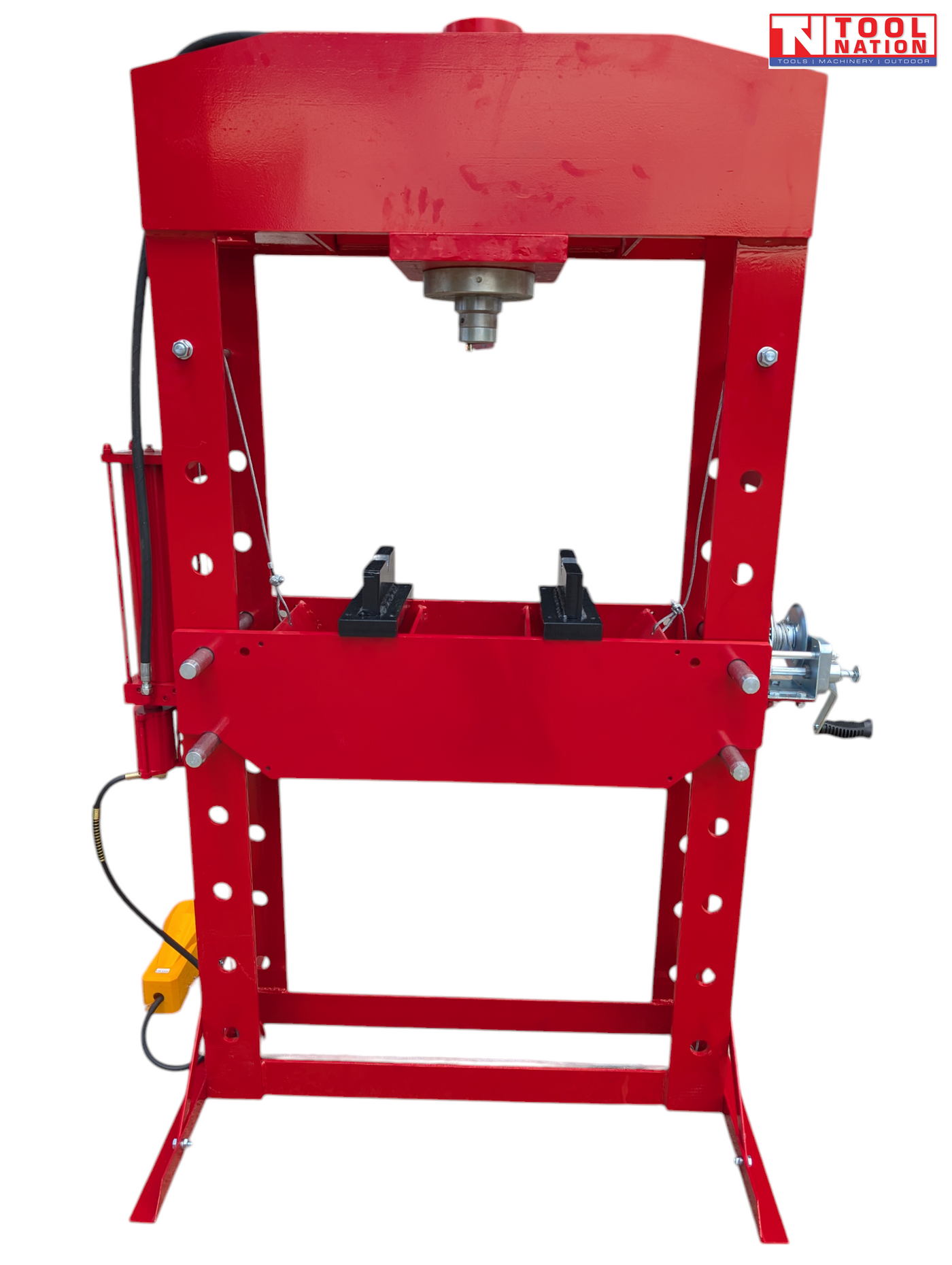

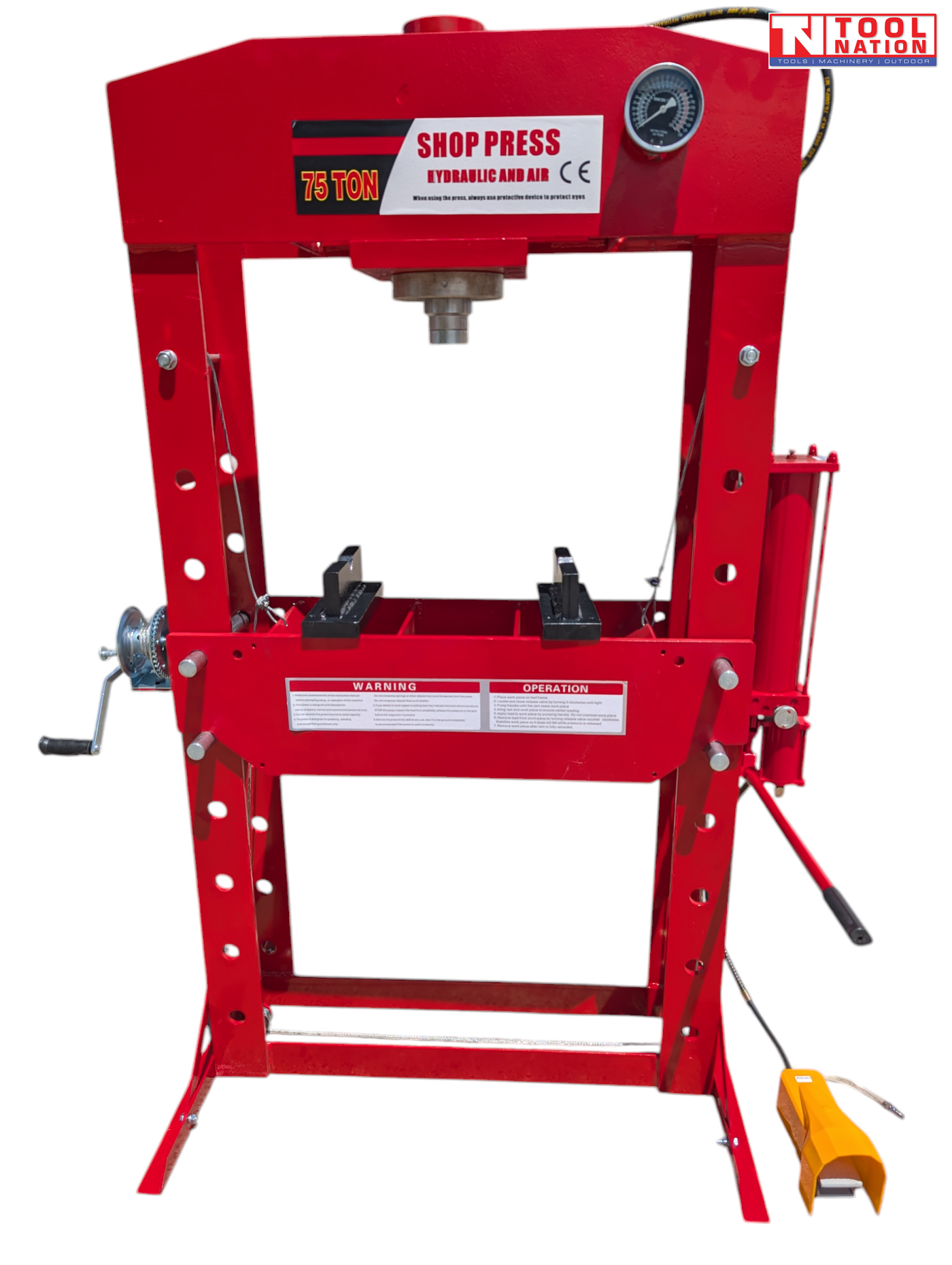

75 Ton Air Hydraulic Shop Press with Sliding Head
PRESALR75T
The PRESALR75T 75 Ton Heavy Duty Air Hydraulic Shop Press is a high-performance machine designed for industrial workshops that demand precision, versatility, and significant lifting capacity. Ideal for heavy-duty tasks like metal fabrication, automotive repair, and other industrial applications, this press offers a robust solution for pressing and forming materials that require substantial force. Its powerful 75-ton capacity ensures reliable performance even with large and heavy workpieces.
With an adjustable working range from 130mm to 1140mm, the PRESALR75T can accommodate a variety of sizes and types of materials, making it a flexible tool for different pressing tasks. The sliding head allows for smooth and easy adjustments, providing precise positioning and ease of use for operators. This feature is essential for tasks that require accuracy, such as bending, pressing, and forming.

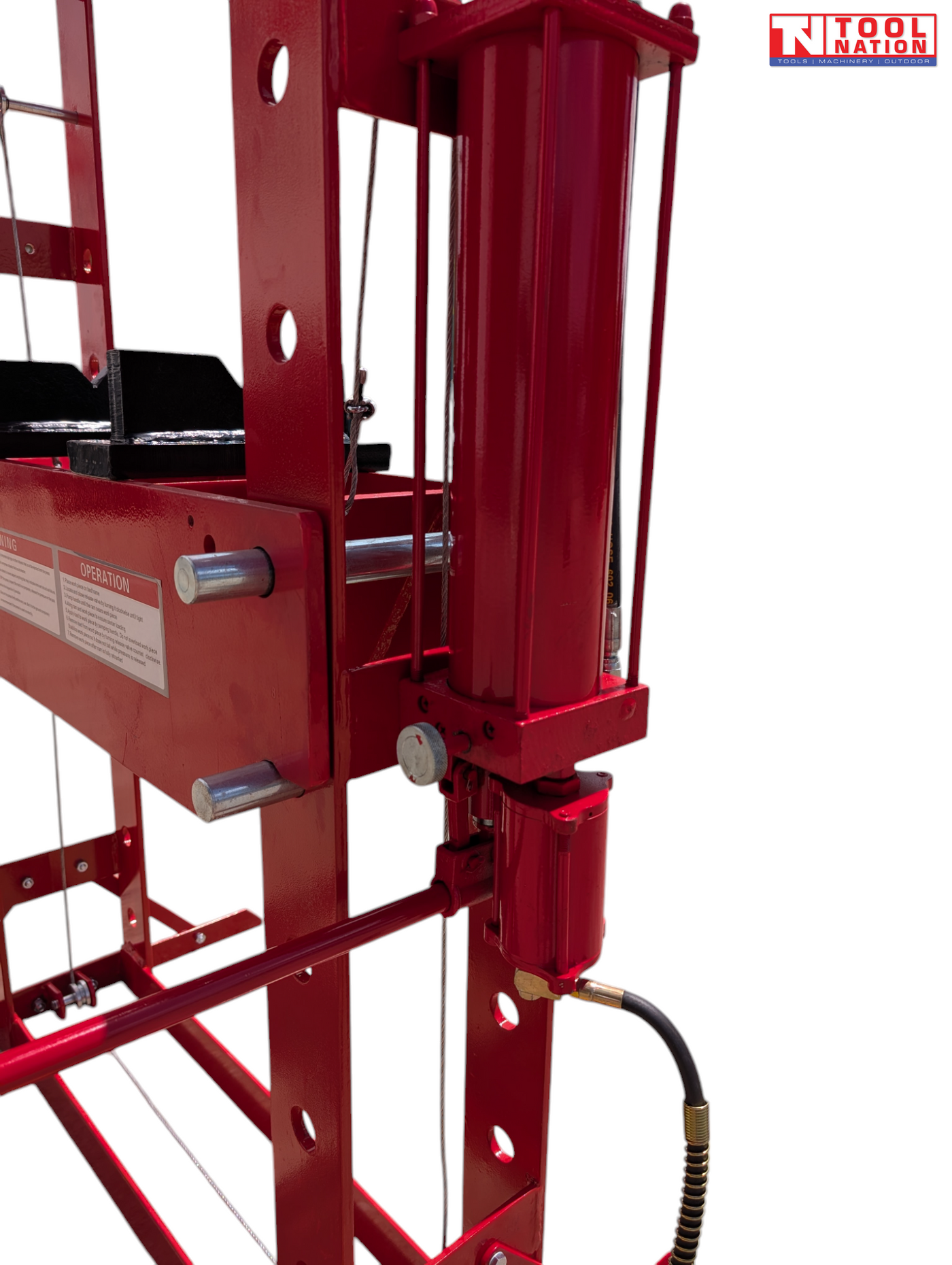

The PRESALR75T can be operated using either air hydraulic or manual controls, providing the flexibility to choose the most suitable operation mode for specific tasks. The air hydraulic operation is ideal for heavy-duty, continuous applications requiring high force, while the manual operation provides finer control for lighter tasks.
The press is equipped with a stroke length of 250mm, offering adequate space for pressing larger items and ensuring smooth operation. The foot valve enables hands-free operation, enhancing safety and productivity as operators can focus on adjusting and positioning materials without needing to engage the controls manually.
With a bed width of 700mm, the press provides ample space to securely hold materials during the pressing process. Its air inlet fitting (¼ inch NPT) allows easy connection to your air supply, while the air pressure range of 0.75 – 0.85 Mpa makes it compatible with a wide range of industrial air sources.
Whether you are involved in assembly, metal forming, or heavy lifting tasks, the PRESALR75T offers the strength, precision, and versatility required to tackle demanding industrial jobs. Its combination of heavy-duty construction, high lifting capacity, and flexible features makes it an essential tool for any workshop.
Features:
Lifting Capacity: 75,000kg (75 tons), ideal for heavy-duty pressing and forming applications.
Working Range: Adjustable from 130mm to 1140mm, offering flexibility for a wide range of tasks.

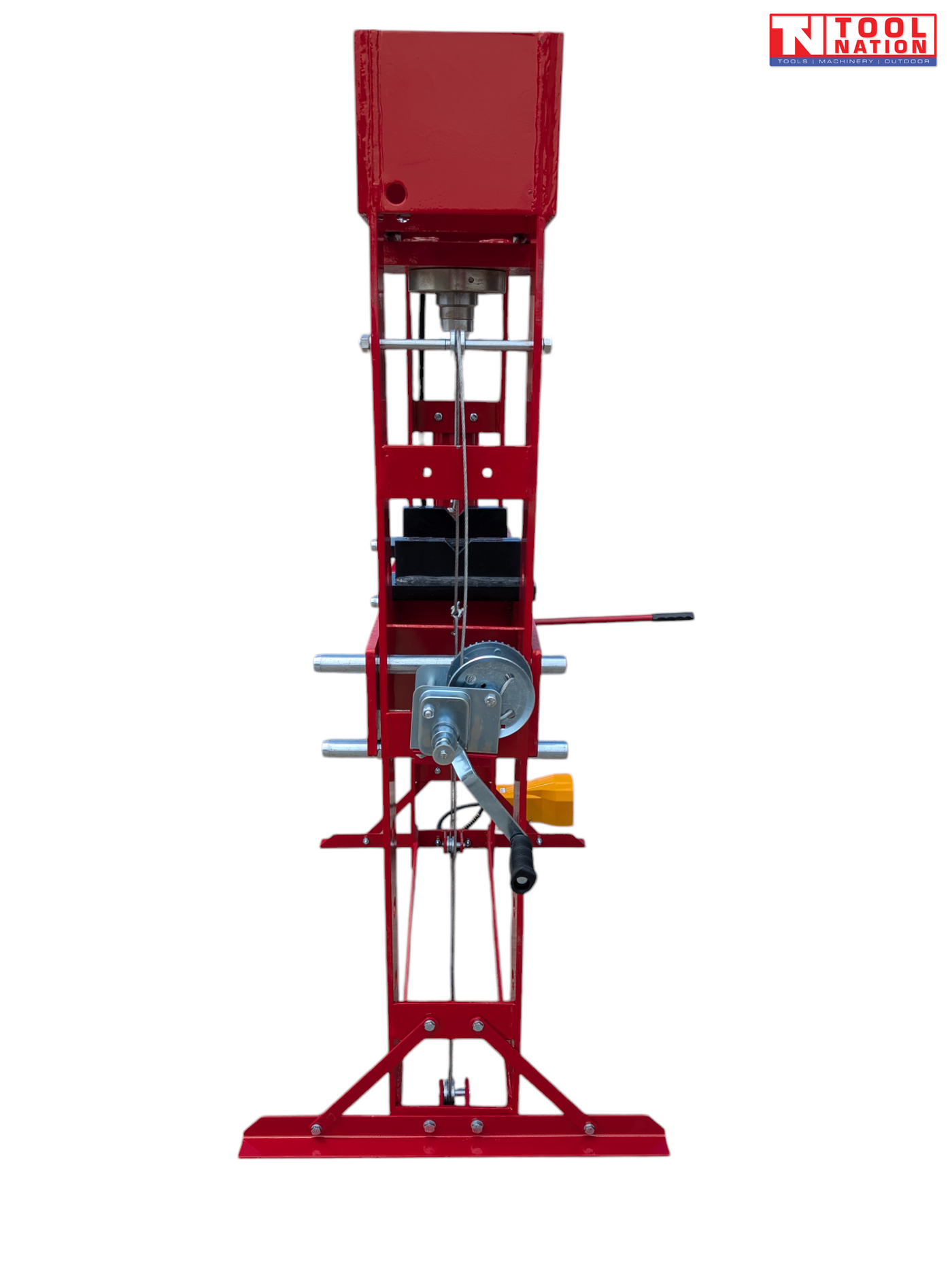

Sliding Head: Provides easy adjustments and precise positioning for accurate pressing.
Air Hydraulic/Manual Operation: Operates via both air hydraulic and manual controls for versatility.
Stroke: 250mm, providing ample space for various pressing operations.
Air Pressure: Works at 0.75 – 0.85 Mpa, suitable for most industrial tasks.
Air Inlet Fitting: ¼ inch NPT for easy connection to air sources.

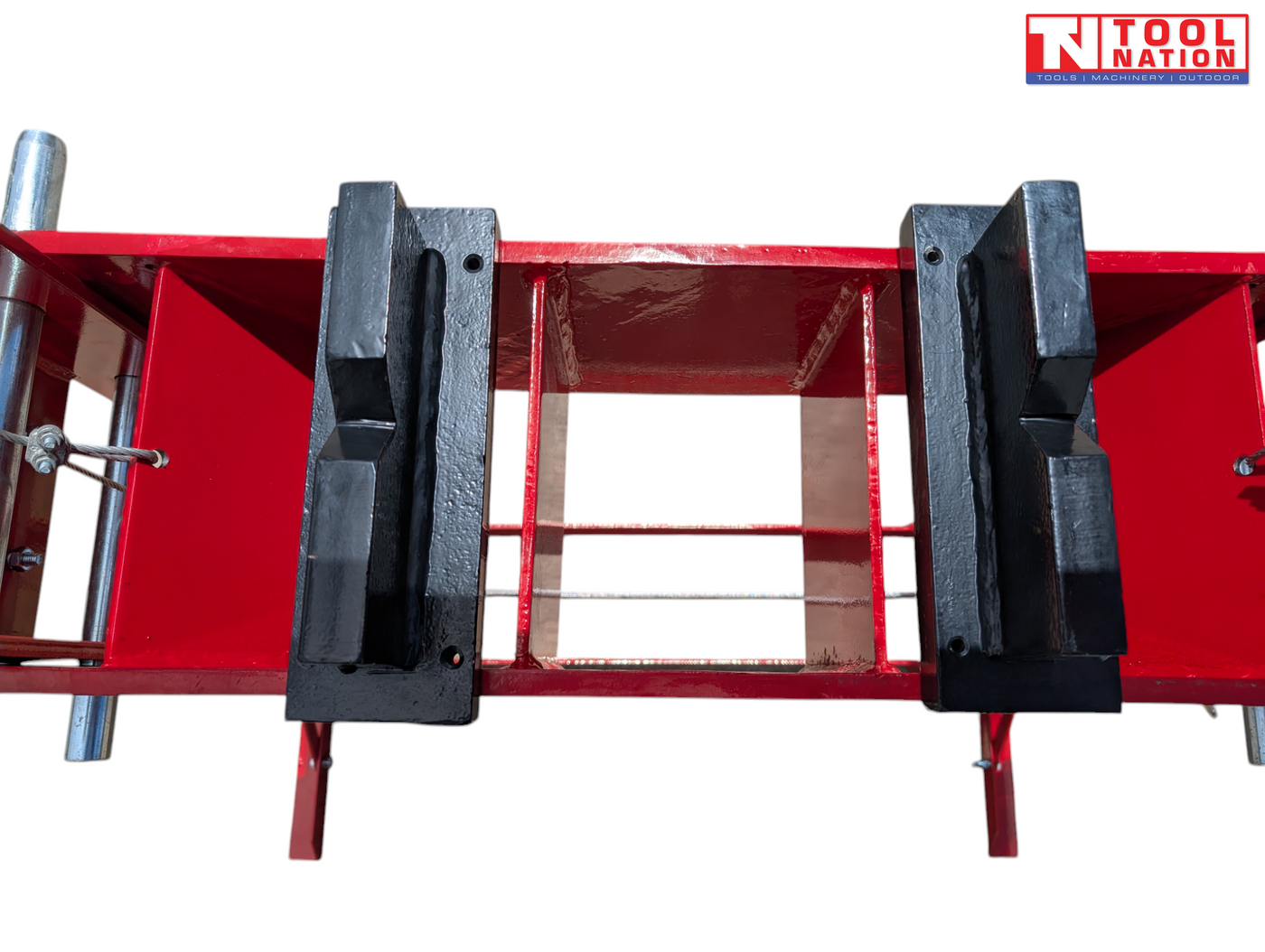

Bed Width: 700mm, offering sufficient space for materials during pressing.

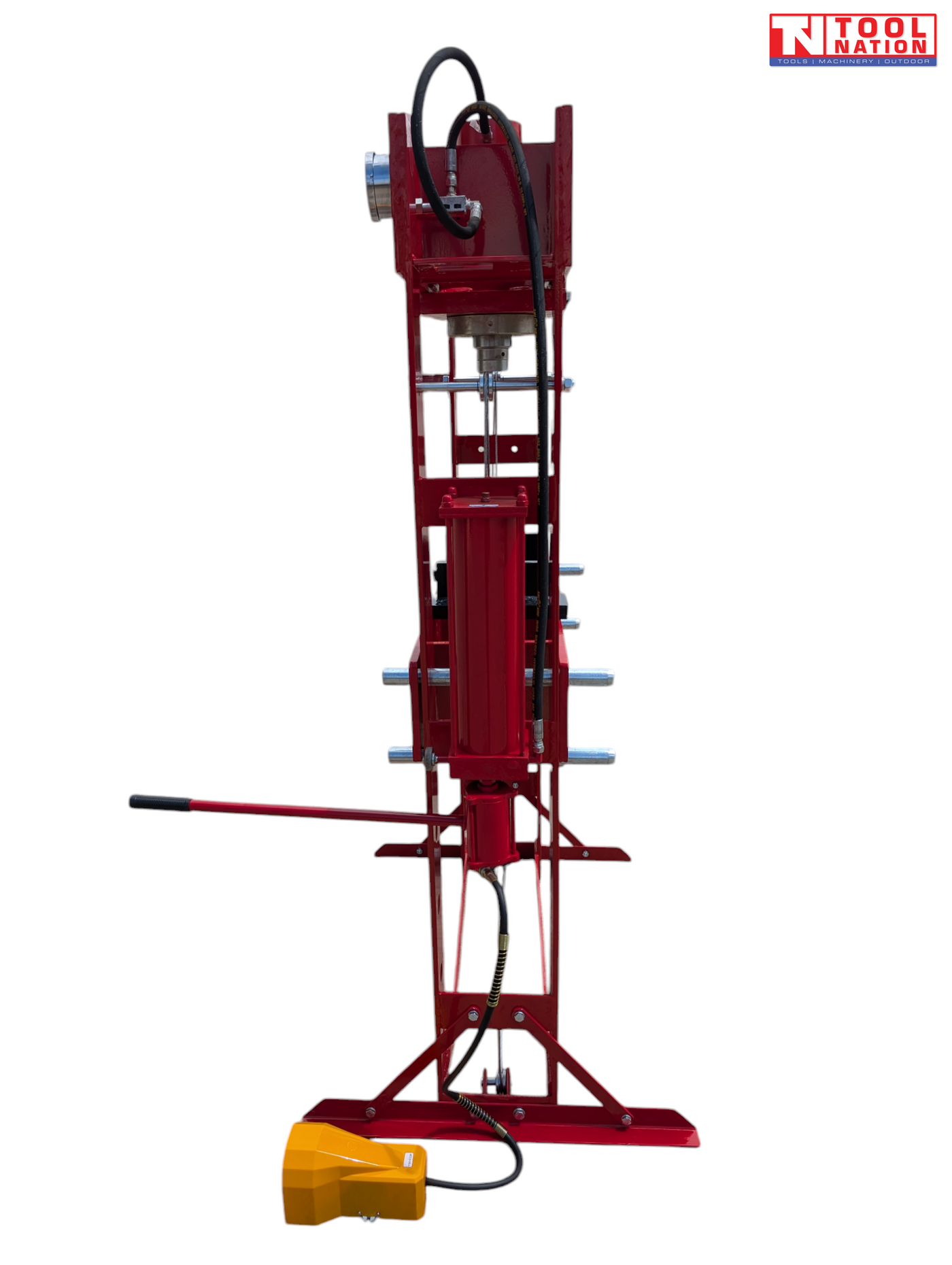

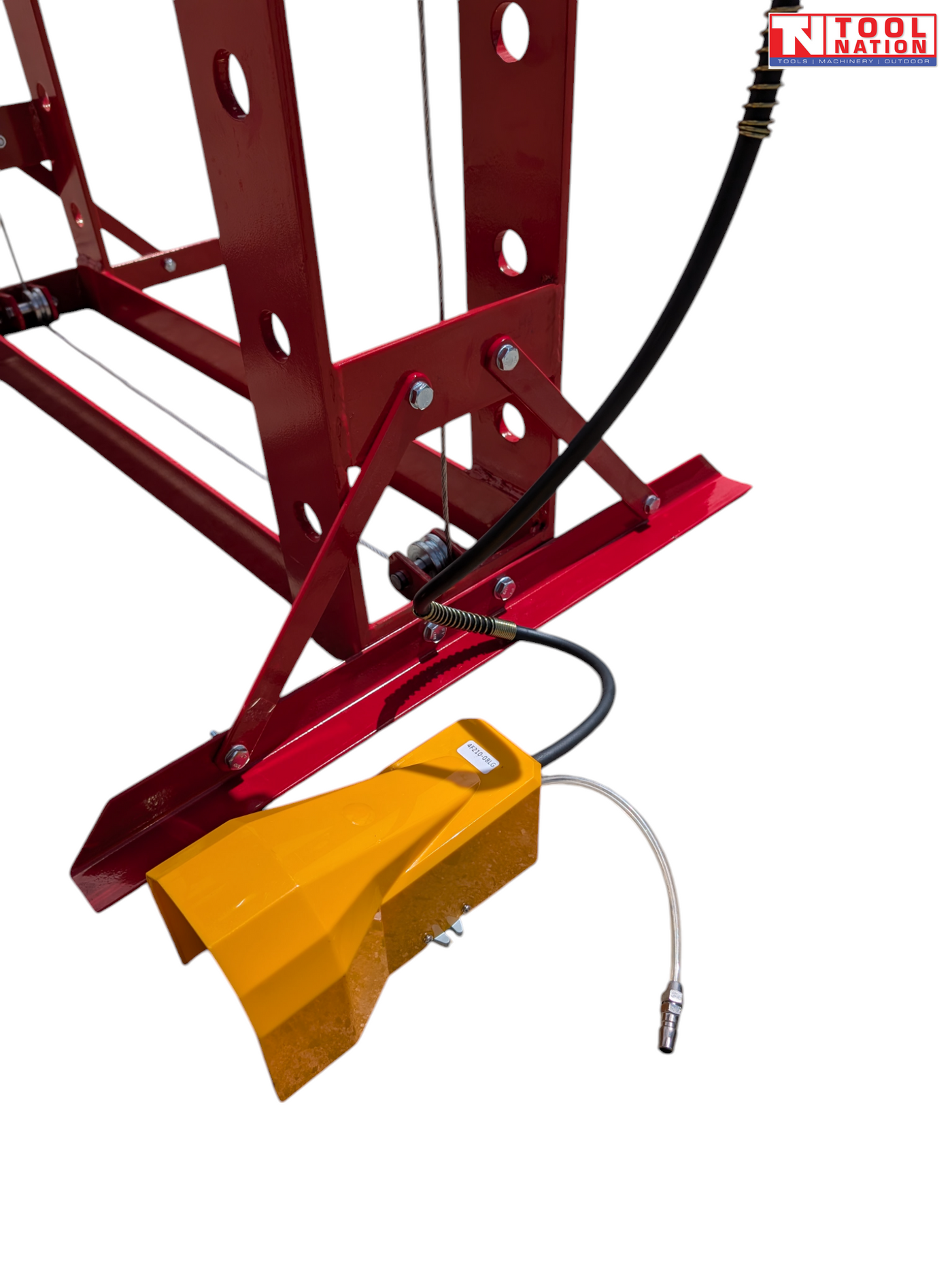

Foot Valve: Enables hands-free operation, increasing safety and efficiency.
Dimensions: A-1300mm, B-800MM, C-1900mm, D-155mm, E-800mm, F-250mm, G-960mm, H-245mm.
Specifications:
Capacity: 75,000kg (75 tons)
Working Range: 130mm – 1140mm
Stroke: 250mm
Air Pressure: 0.75 – 0.85 Mpa
Air Inlet Fitting: ¼ inch NPT
Bed Width: 700mm
Shipping Dimensions: 195x107x54cm
Net Weight: 480kg
