8 Inch PTO Wood Chipper 200mm Power Fed 18-55HP

FIT8TPL

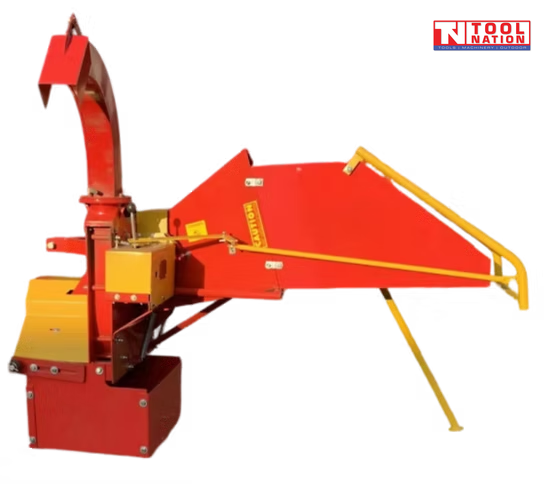

Wood Chipper 200mm 8” Power Fed for Tractor with Three-point Linkage

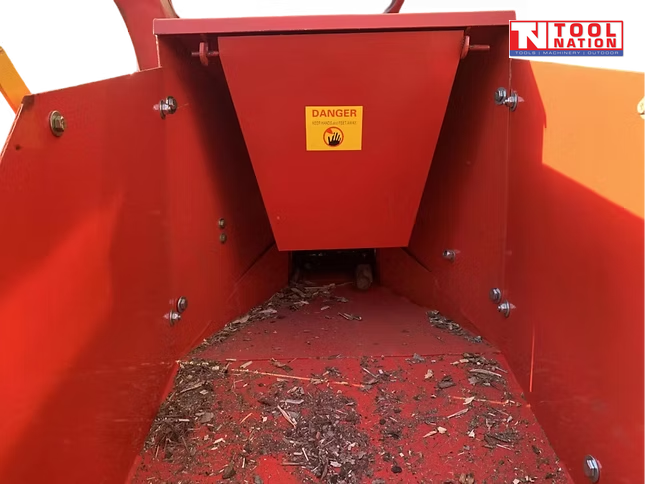

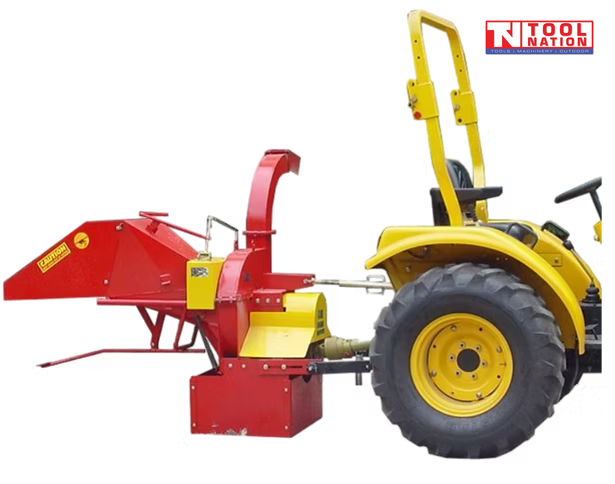

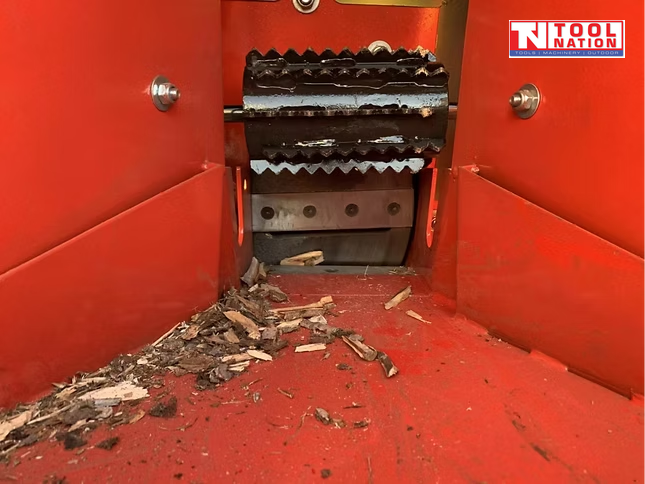

The PTO wood chipper efficiently transfers power from the tractor's engine to the chipper. This wood chipper is designed to be mounted to a tractor's three-point lift assembly. Since you can attach this directly to your tractor, you will not need to transport the chipper via a trailer or any other method. It offers a self-feeding system—once you have placed your material into the feed hopper, the feed roll pulls the material through and proceeds to chip away.

The 8" 3-point PTO wood chipper has a maximum chipping capacity of 200mm diameter wood. It offers multiple adjustments on the blades, chute, and lift points. You can reverse all of the blades for prolonged use. There is also a safety bar setup to disengage the feed roller. It has five drive belts and one feed roller belt, allowing for a smooth transition of power from the PTO shaft to the wood chipper. Ensure you have a compatible tractor with at least 18–55 horsepower.

Note: Pine or other sappy timber have resins that can build up and clog the cutter teeth. It is recommended that some dry hardwood is put through at the end to prevent clogging.

Features:

• Reversible Knives
• Adjustable Bed Blade
• Safety Bar – to disengage the Feed Roller
• Rotating Exit Chute
• Shear Pin PTO Shaft included
• 3-point linkage connection
• Sturdy steel construction

Specifications:

• Chips 8" (200mm) wood with Opening Size: 200mm x 200mm
• Work Efficiency: 7–8m³/h
• PTO Driven at: 540 RPM
• Feed Rate: 11 meters per minute
• Flywheel Weight: 85kg (Flywheel Diameter: 600mm)
• Recommended for: 18–55 HP tractors
• Pack Dimensions (L × W × H): 1150 × 800 × 1350mm
• Weight: 420kg
